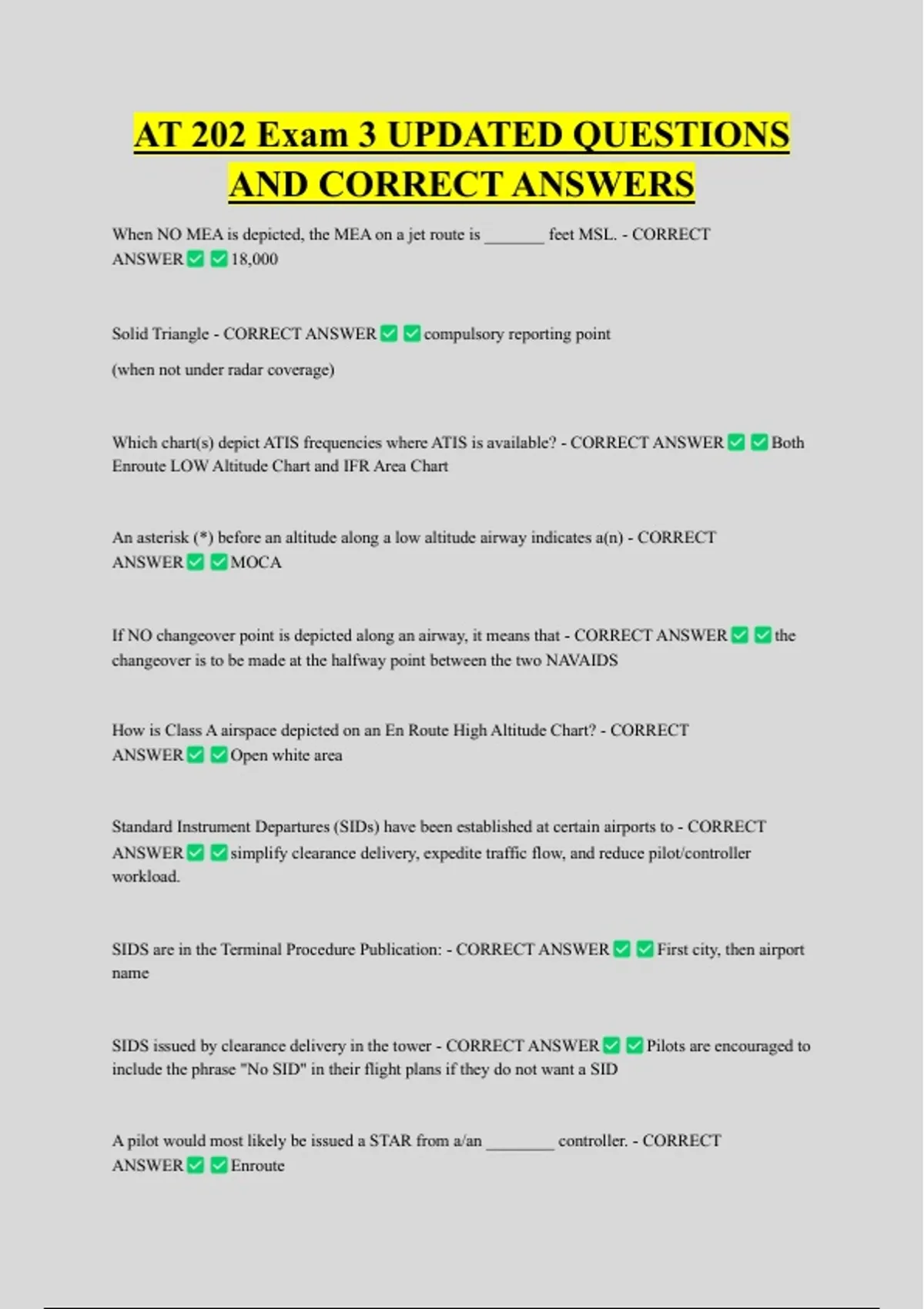

AT 202 Exam 3 UPDATED QUESTIONS
AND CORRECT ANSWERS
When NO MEA is depicted, the MEA on a jet route is _______ feet MSL. - CORRECT
ANSWER 18,000
Solid Triangle - CORRECT ANSWER compulsory reporting point
(when not under radar coverage)
Which chart(s) depict ATIS frequencies where ATIS is available? - CORRECT ANSWER Both
Enroute LOW Altitude Chart and IFR Area Chart
An asterisk (*) before an altitude along a low altitude airway indicates a(n) - CORRECT
ANSWER MOCA
If NO changeover point is depicted along an airway, it means that - CORRECT ANSWER the
changeover is to be made at the halfway point between the two NAVAIDS
How is Class A airspace depicted on an En Route High Altitude Chart? - CORRECT
ANSWER Open white area
Standard Instrument Departures (SIDs) have been established at certain airports to - CORRECT
ANSWER simplify clearance delivery, expedite traffic flow, and reduce pilot/controller
workload.
SIDS are in the Terminal Procedure Publication: - CORRECT ANSWER First city, then airport
name
SIDS issued by clearance delivery in the tower - CORRECT ANSWER Pilots are encouraged to
include the phrase "No SID" in their flight plans if they do not want a SID
A pilot would most likely be issued a STAR from a/an ________ controller. - CORRECT
ANSWER Enroute
, The STAR is not designed to - CORRECT ANSWER ensure appropriate separation minima
between aircraft.
Which statement is true regarding a STAR? - CORRECT ANSWER One STAR may serve
several airports.
To locate a SID or STAR, select the correct U.S. Terminal Procedures Volume, then before using it, -
CORRECT ANSWER Check currency
To accept a clearance for the DANDD 5 arrival to Denver, the pilot must be in possession of the
________ for that STAR. - CORRECT ANSWER Approved chart
8500 - CORRECT ANSWER Minimum altitude
Separate radar identified aircraft operating in the Terminal environment by 3 miles if both aircraft are
operating less than 40 miles from the radar antenna; separate by a minimum of 5 miles if operating 40
miles or more from the antenna. - CORRECT ANSWER True
Enroute separation - CORRECT ANSWER 5 miles radar separation below FL600
The minimum vertical separation required for aircraft above FL600 is _______ feet. - CORRECT
ANSWER 5,000
Radar separation at or above FL600 requires ______ miles separation between aircraft. - CORRECT
ANSWER 10
The minimum vertical separation for IFR flight at and below FL410 is _______ feet. - CORRECT
ANSWER 1,000
Two thousand feet vertical separation is always required for IFR flight above ______ to FL600. -
CORRECT ANSWER FL410
