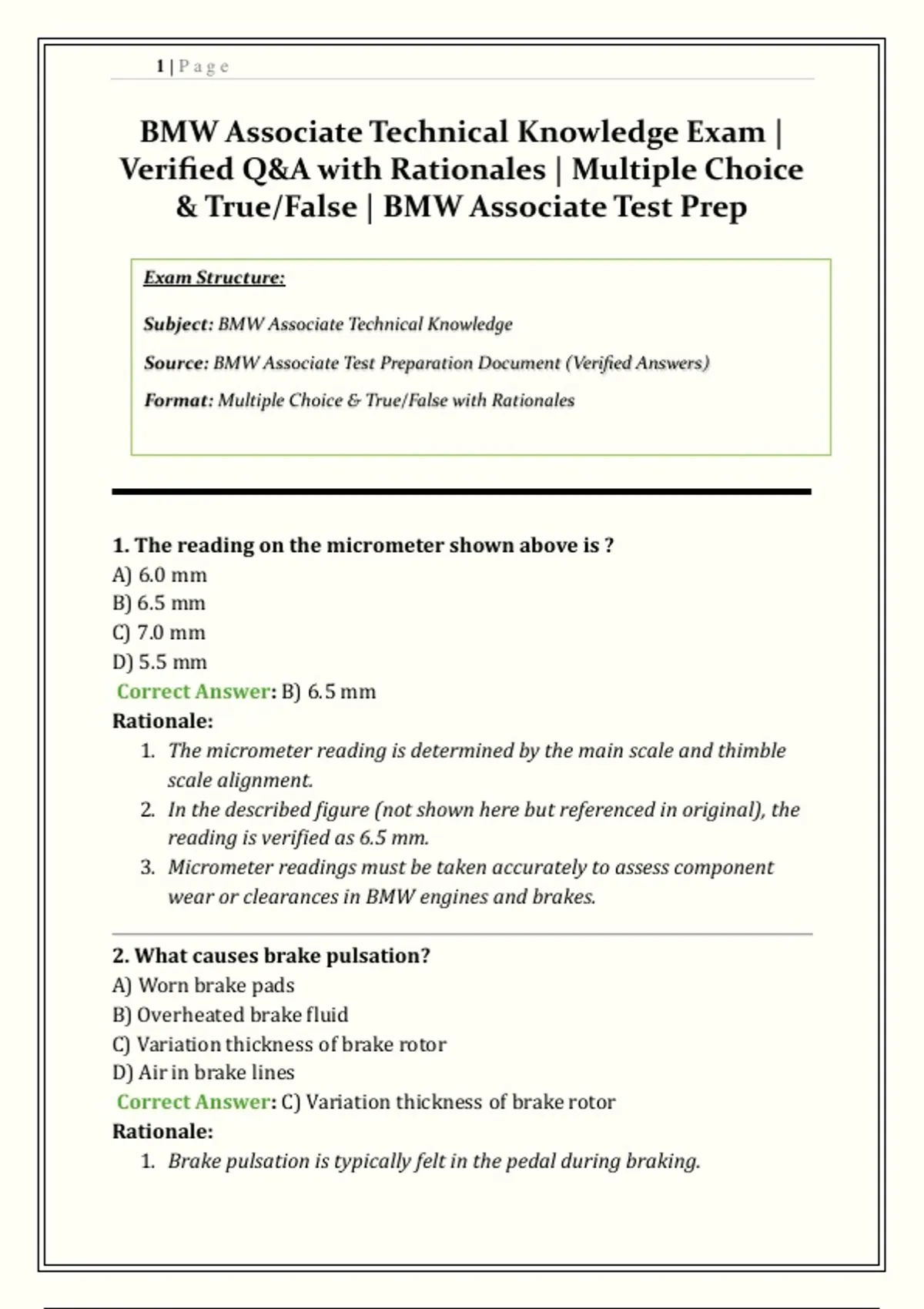

1|Page
BMW Associate Technical Knowledge Exam |
Verified Q&A with Rationales | Multiple Choice
& True/False | BMW Associate Test Prep
Exam Structure:
Subject: BMW Associate Technical Knowledge
Source: BMW Associate Test Preparation Document (Verified Answers)
Format: Multiple Choice & True/False with Rationales
1. The reading on the micrometer shown above is ?
A) 6.0 mm
B) 6.5 mm
C) 7.0 mm
D) 5.5 mm
Correct Answer: B) 6.5 mm
Rationale:
1. The micrometer reading is determined by the main scale and thimble
scale alignment.
2. In the described figure (not shown here but referenced in original), the
reading is verified as 6.5 mm.
3. Micrometer readings must be taken accurately to assess component
wear or clearances in BMW engines and brakes.
2. What causes brake pulsation?
A) Worn brake pads
B) Overheated brake fluid
C) Variation thickness of brake rotor
D) Air in brake lines
Correct Answer: C) Variation thickness of brake rotor
Rationale:
1. Brake pulsation is typically felt in the pedal during braking.
, 2|Page
2. It is caused by disc thickness variation (DTV), often due to lateral
runout or uneven rotor wear.
3. This generates inconsistent brake pad-to-rotor contact, leading to
pedal feedback.
3. A wheel bearing can cause a DSC fault. True or False?
A) True
B) False
Correct Answer: A) True
Rationale:
1. Dynamic Stability Control (DSC) relies on wheel speed sensor inputs.
2. A faulty wheel bearing can create erratic wheel speed signals due to
magnetic encoder damage or excessive play.
3. This triggers DSC faults or warning lights.
4. 3 wheel shows 24 miles and 1 is 23, what can be the cause?
A) Low tire pressure
B) Bad wheel bearing
C) Different tire sizes
D) ABS sensor gap
Correct Answer: B) Bad wheel bearing
Rationale:
1. Minor discrepancies in wheel speed readings (e.g., 24 vs 23 miles)
suggest a speed sensor signal variation.
2. A bad wheel bearing can cause irregular rotation or magnetic encoder
ring damage.
3. This leads to one wheel reporting slightly different speed than others.
5. In a parallel circuit it shows three bulbs that aren’t operating. What
can be the cause?
A) Open at power source
B) Open from Y TO Z
C) Short to ground
D) Blown bulbs only
Correct Answer: B) Open from Y TO Z
Rationale:
1. In a parallel circuit, each bulb has its own path to ground.
