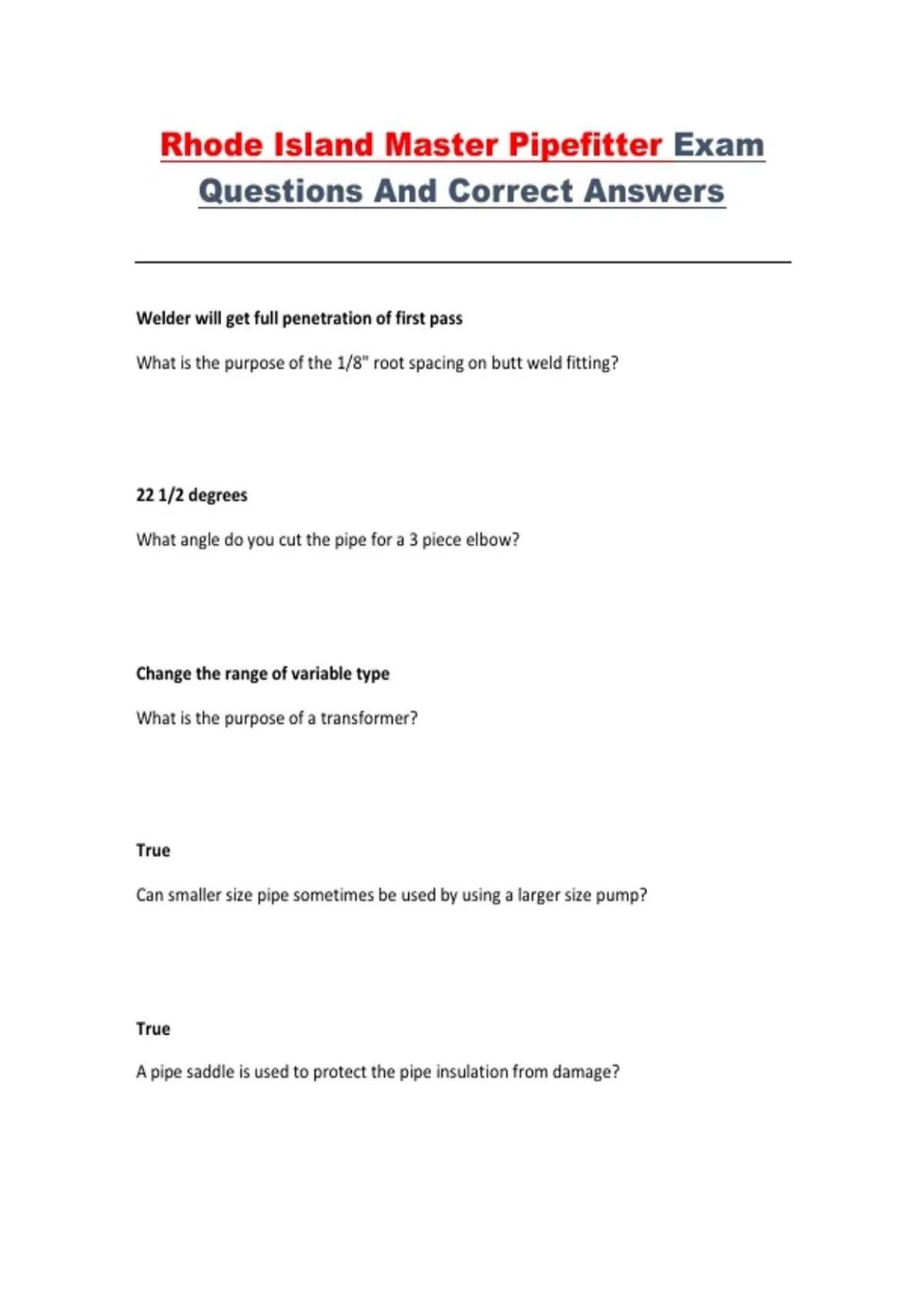

Rhode Island Master Pipefitter Exam
Questions And Correct Answers
Welder will get full penetration of first pass
What is the purpose of the 1/8" root spacing on butt weld fitting?
22 1/2 degrees
What angle do you cut the pipe for a 3 piece elbow?
Change the range of variable type
What is the purpose of a transformer?
True
Can smaller size pipe sometimes be used by using a larger size pump?
True
A pipe saddle is used to protect the pipe insulation from damage?
,AC/DC
At what current is a 60-11 weld rod used?
Concentric Reducer, Reducing Tee, Reducing Elbow
Name 3 weld reducing fittings.
1.41 x run
What formula do you use on a 45% offset?
To prevent a boiler from draining out
What is the purpose of a Hartford Loop?
False
Turbulence in a heat exchanger or thermal converter increase the heat.
Gate Valve
In a horizontal positioned drain line what is the proper valve?
, False
A flared joint and a compression joint are the same.
Thermocouple
In a gas system a safety valve responds to a
High Pressure
In a gas system when is welded pipe preferred over threaded pipe?
1 1/2 the diameter
From the end of the fitting to centerline what is the measurement of a STD (long Radius)
90 degree weld elbow?
Diameter X 3.14
To find the circumference of a pipe
1/16
The space from end of pipe to shoulder of socket weld fitting is
