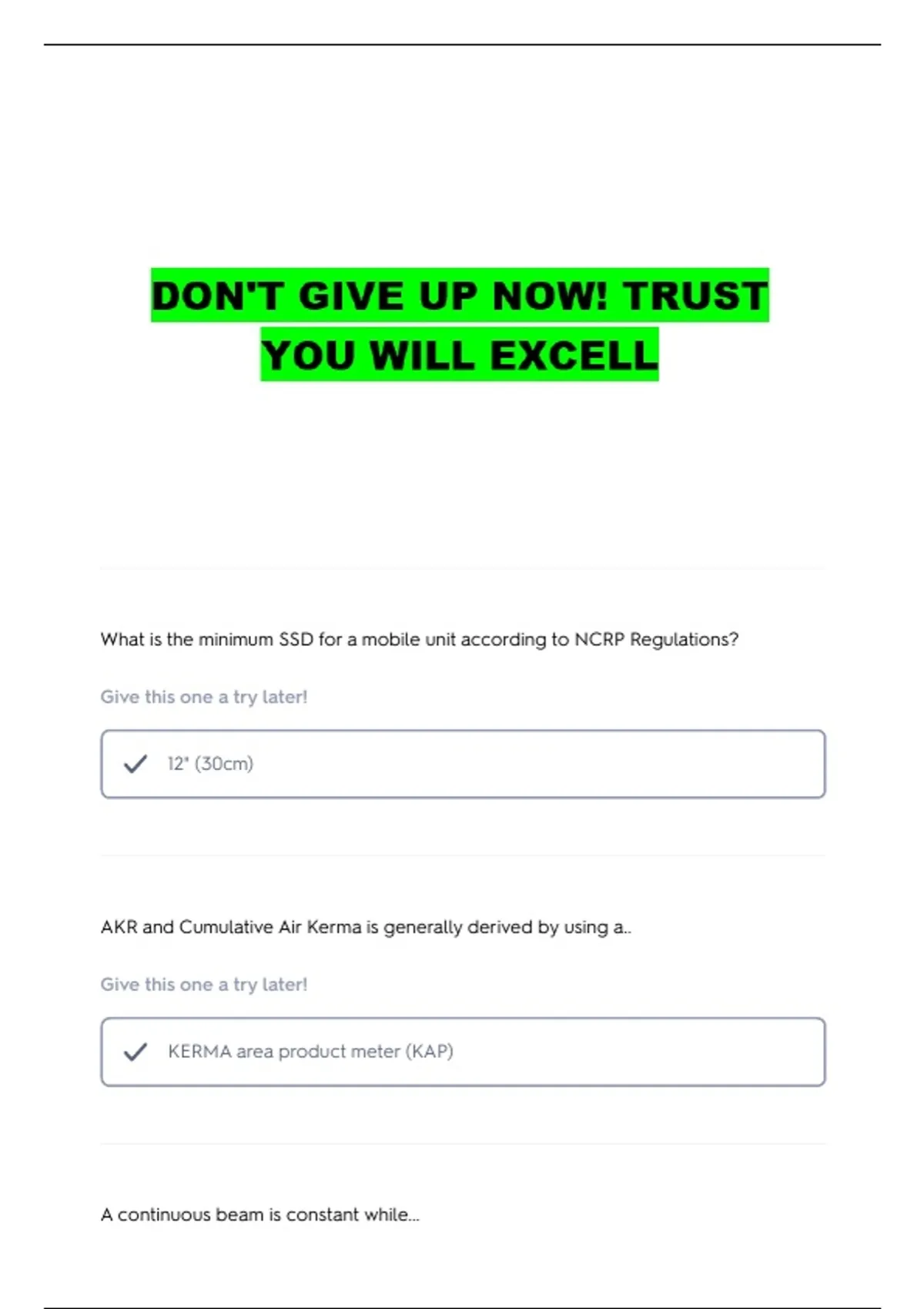

What is the minimum SSD for a mobile unit according to NCRP Regulations?
Give this one a try later!
12" (30cm)
AKR and Cumulative Air Kerma is generally derived by using a..
Give this one a try later!
KERMA area product meter (KAP)
A continuous beam is constant while...
,Give this one a try later!
exposure switch is depressed
Describe a continuous beam.
Give this one a try later!
-Beam is on while exposure switch is activated
-Primarily utilized in older equipment
What is the typical tube current for continuous beam?
Give this one a try later!
3 to 6 mA
What does the Electrostatic Lenses do?
Give this one a try later!
Focuses the electrons on the Output Phosphor
All fluoroscopic equipment manufactured after 2006 shall display at the
fluoroscopist's working position the:
, Give this one a try later!
1. AKR (Air Kerma Rate)
2. Cumulative Air Kerma
What is a CCD?
Give this one a try later!
Light sensitive detector that converts light into electrical charge which is
subsequently converted into digital data.
Maximum resolution for I.I. image:
Give this one a try later!
4 lp/mm
What is a photo-spot camera?
Give this one a try later!
Similar to a movie film (up to 12 images/sec)
requires a beam splitter.
Conversion Factor formula
Give this one a try later!
12" (30cm)
AKR and Cumulative Air Kerma is generally derived by using a..
Give this one a try later!
KERMA area product meter (KAP)
A continuous beam is constant while...
,Give this one a try later!
exposure switch is depressed
Describe a continuous beam.
Give this one a try later!
-Beam is on while exposure switch is activated
-Primarily utilized in older equipment
What is the typical tube current for continuous beam?
Give this one a try later!
3 to 6 mA
What does the Electrostatic Lenses do?
Give this one a try later!
Focuses the electrons on the Output Phosphor
All fluoroscopic equipment manufactured after 2006 shall display at the
fluoroscopist's working position the:
, Give this one a try later!
1. AKR (Air Kerma Rate)
2. Cumulative Air Kerma
What is a CCD?
Give this one a try later!
Light sensitive detector that converts light into electrical charge which is
subsequently converted into digital data.
Maximum resolution for I.I. image:
Give this one a try later!
4 lp/mm
What is a photo-spot camera?
Give this one a try later!
Similar to a movie film (up to 12 images/sec)
requires a beam splitter.
Conversion Factor formula
