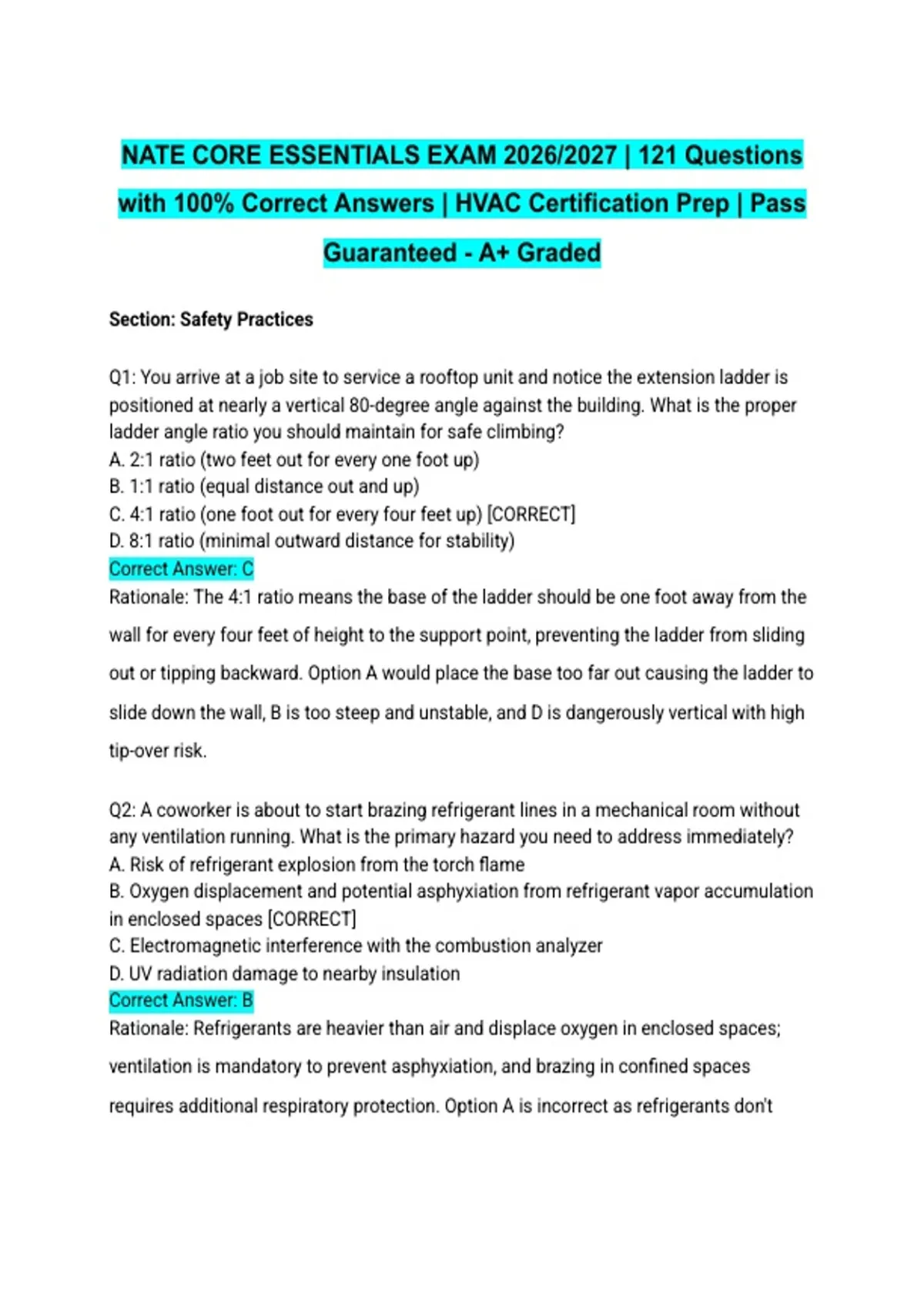

NATE CORE ESSENTIALS EXAM 2026/2027 | 121 Questions
with 100% Correct Answers | HVAC Certification Prep | Pass
Guaranteed - A+ Graded
Section: Safety Practices
Q1: You arrive at a job site to service a rooftop unit and notice the extension ladder is
positioned at nearly a vertical 80-degree angle against the building. What is the proper
ladder angle ratio you should maintain for safe climbing?
A. 2:1 ratio (two feet out for every one foot up)
B. 1:1 ratio (equal distance out and up)
C. 4:1 ratio (one foot out for every four feet up) [CORRECT]
D. 8:1 ratio (minimal outward distance for stability)
Correct Answer: C
Rationale: The 4:1 ratio means the base of the ladder should be one foot away from the
wall for every four feet of height to the support point, preventing the ladder from sliding
out or tipping backward. Option A would place the base too far out causing the ladder to
slide down the wall, B is too steep and unstable, and D is dangerously vertical with high
tip-over risk.
Q2: A coworker is about to start brazing refrigerant lines in a mechanical room without
any ventilation running. What is the primary hazard you need to address immediately?
A. Risk of refrigerant explosion from the torch flame
B. Oxygen displacement and potential asphyxiation from refrigerant vapor accumulation
in enclosed spaces [CORRECT]
C. Electromagnetic interference with the combustion analyzer
D. UV radiation damage to nearby insulation
Correct Answer: B
Rationale: Refrigerants are heavier than air and displace oxygen in enclosed spaces;
ventilation is mandatory to prevent asphyxiation, and brazing in confined spaces
requires additional respiratory protection. Option A is incorrect as refrigerants don't
,explode under these conditions, C is unrelated to brazing hazards, and D confuses
brazing with welding arc flash.
Q3: You need to verify that a 240V condensing unit is de-energized before replacing a
contactor. What is the proper lockout/tagout sequence you should follow?
A. Test the circuit with your multimeter, then turn off the disconnect if voltage is present
B. Turn off the disconnect, verify the unit stopped running, and begin work immediately
C. Turn off the disconnect, lock it in the OFF position, tag it with your information, then
verify zero energy with a properly rated multimeter [CORRECT]
D. Just pull the fuses and keep them in your pocket while working
Correct Answer: C
Rationale: Proper LOTO requires isolating energy, physically locking the disconnect to
prevent re-energization, tagging to identify who locked it out, and verifying zero energy
with test equipment before touching components. Option A tests before disconnecting
which is backwards and dangerous, B misses locking/tagging and verification steps,
and D lacks tagging and formal verification.
Q4: While servicing a gas furnace, you detect a strong odor of mercaptan near the gas
valve. What is the correct immediate action according to safety protocols?
A. Light a match to confirm the leak location by flame color
B. Evacuate the building immediately, shut off the gas supply if safe to do so, and
ventilate the area without operating electrical switches [CORRECT]
C. Continue the repair while wearing a dust mask to filter the smell
D. Spray electrical contact cleaner to seal the leak temporarily
Correct Answer: B
Rationale: Gas leaks require immediate evacuation to prevent explosion risk; eliminate
ignition sources, shut off gas if accessible without creating sparks, and ventilate
naturally without operating switches that could arc. Option A could cause an explosion,
C provides no protection against gas inhalation or explosion, and D is ineffective and
dangerous.
Q5: You are selecting personal protective equipment for recovering refrigerant from a
commercial system. What eye protection is most appropriate?
A. Standard eyeglasses with side shields
,B. Safety glasses with side shields or chemical splash goggles to prevent liquid
refrigerant from freezing eye tissue [CORRECT]
C. A welding helmet with shade 10 lens
D. No eye protection needed if working carefully
Correct Answer: B
Rationale: Liquid refrigerant can cause severe frostbite and eye injury instantly; safety
glasses with side shields or goggles are required to prevent splash contact with eyes.
Option A doesn't seal against splashes, C is for radiation protection not chemical
splashes, and D violates basic safety protocols.
Q6: When using a fire extinguisher to put out an electrical fire in an HVAC control panel,
what is the proper technique?
A. Aim at the top of the flames and sweep downward rapidly
B. Pull the pin, Aim at the base of the fire, Squeeze the handle, Sweep side to side (PASS
method) [CORRECT]
C. Shake the extinguisher vigorously before spraying to mix chemicals
D. Aim directly at the electrical components regardless of extinguisher type
Correct Answer: B
Rationale: The PASS method ensures effective fire suppression: Pull the safety pin, Aim
at the base of the flames, Squeeze the lever slowly, and Sweep side to side to cover the
fuel source. Option A wastes extinguisher agent on flames rather than the source, C is
unnecessary for modern extinguishers, and D could be dangerous if using a
water-based extinguisher on energized equipment.
Q7: A technician is working in an attic with blown insulation and encounters what
appears to be vermiculite insulation. What is the primary safety concern?
A. Risk of skin irritation from fiberglass fibers
B. Potential asbestos content requiring specialized abatement procedures [CORRECT]
C. Fire hazard from the organic material
D. Electrical conductivity causing shock risk
Correct Answer: B
Rationale: Vermiculite insulation, particularly from certain sources, may contain
asbestos fibers; disturbing it without proper respiratory protection and abatement
procedures creates serious inhalation hazards. Option A describes fiberglass not
, vermiculite, C is incorrect as vermiculite is fire resistant, and D is not a property of
vermiculite insulation.
Q8: You are about to enter a commercial air handling unit for internal inspection. The
interior is large enough to enter but has limited means of entry. What safety protocol
applies?
A. No special procedures needed if the fan is off
B. Confined space entry protocols including atmospheric testing, ventilation, and
standby attendant [CORRECT]
C. Simply leaving the access door open is sufficient ventilation
D. Only needed if the space is below ground level
Correct Answer: B
Rationale: Air handling units meet confined space definitions (limited entry, not
designed for continuous occupancy); OSHA requires testing for oxygen deficiency/toxic
gases, ventilation, and rescue procedures before entry. Option A ignores atmospheric
hazards, C may not provide adequate ventilation, and D incorrectly limits confined
spaces to subterranean locations.
Q9: According to OSHA requirements, what is the proper placement height for a CO
detector when installing it in a residential home?
A. Mounted on the ceiling like a smoke detector since CO rises
B. Mounted on the wall near the ceiling or on the ceiling, but CO mixes with air and
detectors work at any height; typically recommended at sleeping area height or per
manufacturer [CORRECT]
C. Placed on the floor since CO is heavier than air
D. Only needed in the basement near the furnace
Correct Answer: B
Rationale: While CO is slightly lighter than air and mixes readily, manufacturers typically
recommend mounting at breathing height or on the ceiling; the key is placement near
sleeping areas and on every level, not specific height alone. Option A is partially correct
but rigid, C confuses CO with propane vapors, and D insufficiently protects occupants in
other areas.
Q10: You are using a multimeter to check voltage on a live circuit. Where should you
place your free hand to minimize shock hazard?
