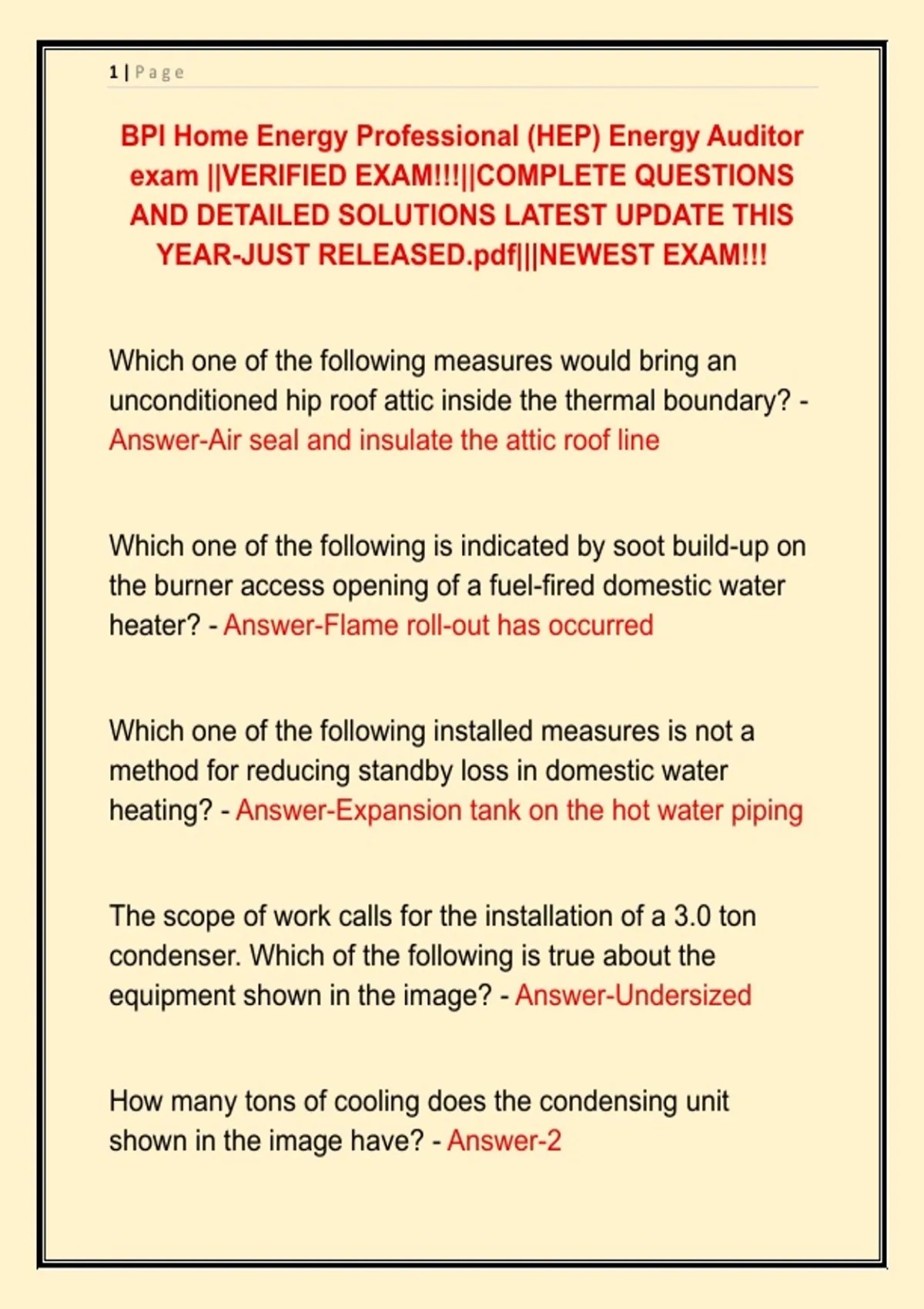

1|Page
BPI Home Energy Professional (HEP) Energy Auditor
exam ||VERIFIED EXAM!!!||COMPLETE QUESTIONS
AND DETAILED SOLUTIONS LATEST UPDATE THIS
YEAR-JUST RELEASED.pdf|||NEWEST EXAM!!!
Which one of the following measures would bring an
unconditioned hip roof attic inside the thermal boundary? -
Answer-Air seal and insulate the attic roof line
Which one of the following is indicated by soot build-up on
the burner access opening of a fuel-fired domestic water
heater? - Answer-Flame roll-out has occurred
Which one of the following installed measures is not a
method for reducing standby loss in domestic water
heating? - Answer-Expansion tank on the hot water piping
The scope of work calls for the installation of a 3.0 ton
condenser. Which of the following is true about the
equipment shown in the image? - Answer-Undersized
How many tons of cooling does the condensing unit
shown in the image have? - Answer-2
,2|Page
Which one of the following is MOST LIKELY to be nominal
cooling capacity of a central air conditoning condensing
unit with model number CTF-36-11T1? - Answer-3.0 tons
The calculated latent load of a building is used to
determine the appropriate air conditioner capacity needed
to effectively do which one of the following? - Answer-
Remove moisture from the air
Which of the following should the analyst verify prior to air
conditoning system installation when replacement of the
system is part of a work scope? - Answer-Replacement air
conditioner's capacity is based on the projected cooling
load
An analyst must recommend removal of an ANSI-Z21.11-
listed unvented heater under which one of the
following circumstances? - Answer-15,000 BTUh heater in
a bedroom.
The analyst tests the natural draft furnace under the
greatest Combustion Appliance Zone (CAZ)
,3|Page
depressurization. The furnace fails the spillage test
regardless of CAZ door position and air handler
operation. According to ANSI/BPI-1200, which of the
following is the appropriate response? - Answer-
Recommend further evaluation by a qualified professional.
According to ANSI/BPI-1200, which one of the following is
the correct response when a furnace fails a spillage
test regardless of CAZ door position and air handler
operation? - Answer-Recommend further evaluation or
service by a qualified professional
This is a Combustion Air Calculation Worksheet which is
used to determine if additional air is required in the
Combustion Appliance Zone (CAZ). Based on the data
provided, is additional air needed? - Answer-Yes,
additional air is needed
Which one of the following can be considered a user-
operated heating control? - Answer-Set-back thermostat
, 4|Page
Which one of the following actions will resolve spillage at
the draft hood of a furnace? - Answer-Replace the existing
furnace with a direct vent model
After completing combustion safety testing, the analyst
concludes that the natural gas-fired water heater
fails spillage testing with a CO measurement of 225 ppm
air free, and the natural gas-fired furnace passes
spillage testing with a CO measurement of 40 ppm air
free. According to ANSI/BPI-1200, which one of the
following is the appropriate next step? - Answer-
Recommend that the water heater be shut down until it
can be serviced by a qualified
According to ANSI/BPI-1200, which of the following is the
CO air free limit in the flue gases of a central forced-
air furnace before action must be taken? - Answer-400
ppm
According to National and International Fuel Gas Codes
using the standard method for determining the
adequacy of a space to provide combustion and
ventilation air, which one of the following is the volume
BPI Home Energy Professional (HEP) Energy Auditor
exam ||VERIFIED EXAM!!!||COMPLETE QUESTIONS
AND DETAILED SOLUTIONS LATEST UPDATE THIS
YEAR-JUST RELEASED.pdf|||NEWEST EXAM!!!
Which one of the following measures would bring an
unconditioned hip roof attic inside the thermal boundary? -
Answer-Air seal and insulate the attic roof line
Which one of the following is indicated by soot build-up on
the burner access opening of a fuel-fired domestic water
heater? - Answer-Flame roll-out has occurred
Which one of the following installed measures is not a
method for reducing standby loss in domestic water
heating? - Answer-Expansion tank on the hot water piping
The scope of work calls for the installation of a 3.0 ton
condenser. Which of the following is true about the
equipment shown in the image? - Answer-Undersized
How many tons of cooling does the condensing unit
shown in the image have? - Answer-2
,2|Page
Which one of the following is MOST LIKELY to be nominal
cooling capacity of a central air conditoning condensing
unit with model number CTF-36-11T1? - Answer-3.0 tons
The calculated latent load of a building is used to
determine the appropriate air conditioner capacity needed
to effectively do which one of the following? - Answer-
Remove moisture from the air
Which of the following should the analyst verify prior to air
conditoning system installation when replacement of the
system is part of a work scope? - Answer-Replacement air
conditioner's capacity is based on the projected cooling
load
An analyst must recommend removal of an ANSI-Z21.11-
listed unvented heater under which one of the
following circumstances? - Answer-15,000 BTUh heater in
a bedroom.
The analyst tests the natural draft furnace under the
greatest Combustion Appliance Zone (CAZ)
,3|Page
depressurization. The furnace fails the spillage test
regardless of CAZ door position and air handler
operation. According to ANSI/BPI-1200, which of the
following is the appropriate response? - Answer-
Recommend further evaluation by a qualified professional.
According to ANSI/BPI-1200, which one of the following is
the correct response when a furnace fails a spillage
test regardless of CAZ door position and air handler
operation? - Answer-Recommend further evaluation or
service by a qualified professional
This is a Combustion Air Calculation Worksheet which is
used to determine if additional air is required in the
Combustion Appliance Zone (CAZ). Based on the data
provided, is additional air needed? - Answer-Yes,
additional air is needed
Which one of the following can be considered a user-
operated heating control? - Answer-Set-back thermostat
, 4|Page
Which one of the following actions will resolve spillage at
the draft hood of a furnace? - Answer-Replace the existing
furnace with a direct vent model
After completing combustion safety testing, the analyst
concludes that the natural gas-fired water heater
fails spillage testing with a CO measurement of 225 ppm
air free, and the natural gas-fired furnace passes
spillage testing with a CO measurement of 40 ppm air
free. According to ANSI/BPI-1200, which one of the
following is the appropriate next step? - Answer-
Recommend that the water heater be shut down until it
can be serviced by a qualified
According to ANSI/BPI-1200, which of the following is the
CO air free limit in the flue gases of a central forced-
air furnace before action must be taken? - Answer-400
ppm
According to National and International Fuel Gas Codes
using the standard method for determining the
adequacy of a space to provide combustion and
ventilation air, which one of the following is the volume
