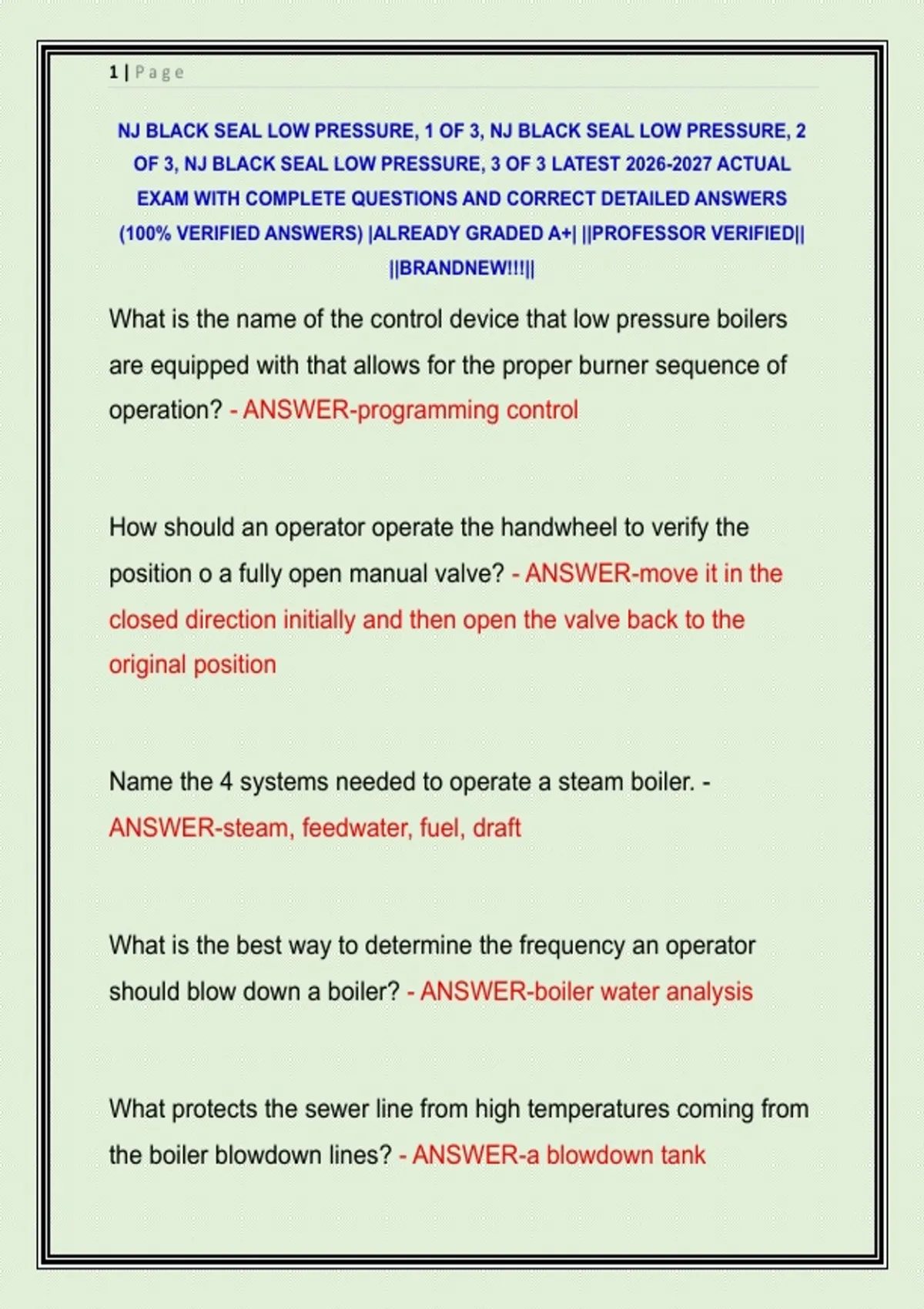

1|Page
NJ BLACK SEAL LOW PRESSURE, 1 OF 3, NJ BLACK SEAL LOW PRESSURE, 2
OF 3, NJ BLACK SEAL LOW PRESSURE, 3 OF 3 LATEST 2026-2027 ACTUAL
EXAM WITH COMPLETE QUESTIONS AND CORRECT DETAILED ANSWERS
(100% VERIFIED ANSWERS) |ALREADY GRADED A+| ||PROFESSOR VERIFIED||
||BRANDNEW!!!||
What is the name of the control device that low pressure boilers
are equipped with that allows for the proper burner sequence of
operation? - ANSWER-programming control
How should an operator operate the handwheel to verify the
position o a fully open manual valve? - ANSWER-move it in the
closed direction initially and then open the valve back to the
original position
Name the 4 systems needed to operate a steam boiler. -
ANSWER-steam, feedwater, fuel, draft
What is the best way to determine the frequency an operator
should blow down a boiler? - ANSWER-boiler water analysis
What protects the sewer line from high temperatures coming from
the boiler blowdown lines? - ANSWER-a blowdown tank
,2|Page
What is required for complete combustion? - ANSWER-mixture,
atomization, time, temperature
What is the maximum penalty for operating with an expired
license? - ANSWER-$5000.00
The ASME code section for care and operation of a hot water
heating boiler falls under: - ANSWER-Section VI
Which valve offers the least resistance to flow when fully opened?
- ANSWER-OS&Y or gate valve
Which of these conditions has the largest potential to waste
energy in a steam heating system? - ANSWER-leaking steam
traps
What protects the hot water heating system from exceeding the
maximum allowable working pressure (MAWP)? - ANSWER-
safety relief valve
, 3|Page
Saturated steam is steam at: - ANSWER-its corresponding
temperature & pressure
If an inlet gauge reads20 psi on a heat exchanger and the
discharge gauge reads 15 psi, what is occurring? - ANSWER-
pressure drop due to friction
When the heat energy in steam is lost, what happens to it? -
ANSWER-it turns to condensate
A thermodynamic steam trap is a steam trap that has a moveable
disc that raises to allow the discharge of air and cools
condensate. True or False? - ANSWER-True
What would cause scale to form in a system? - ANSWER-calcium
& magnesium
