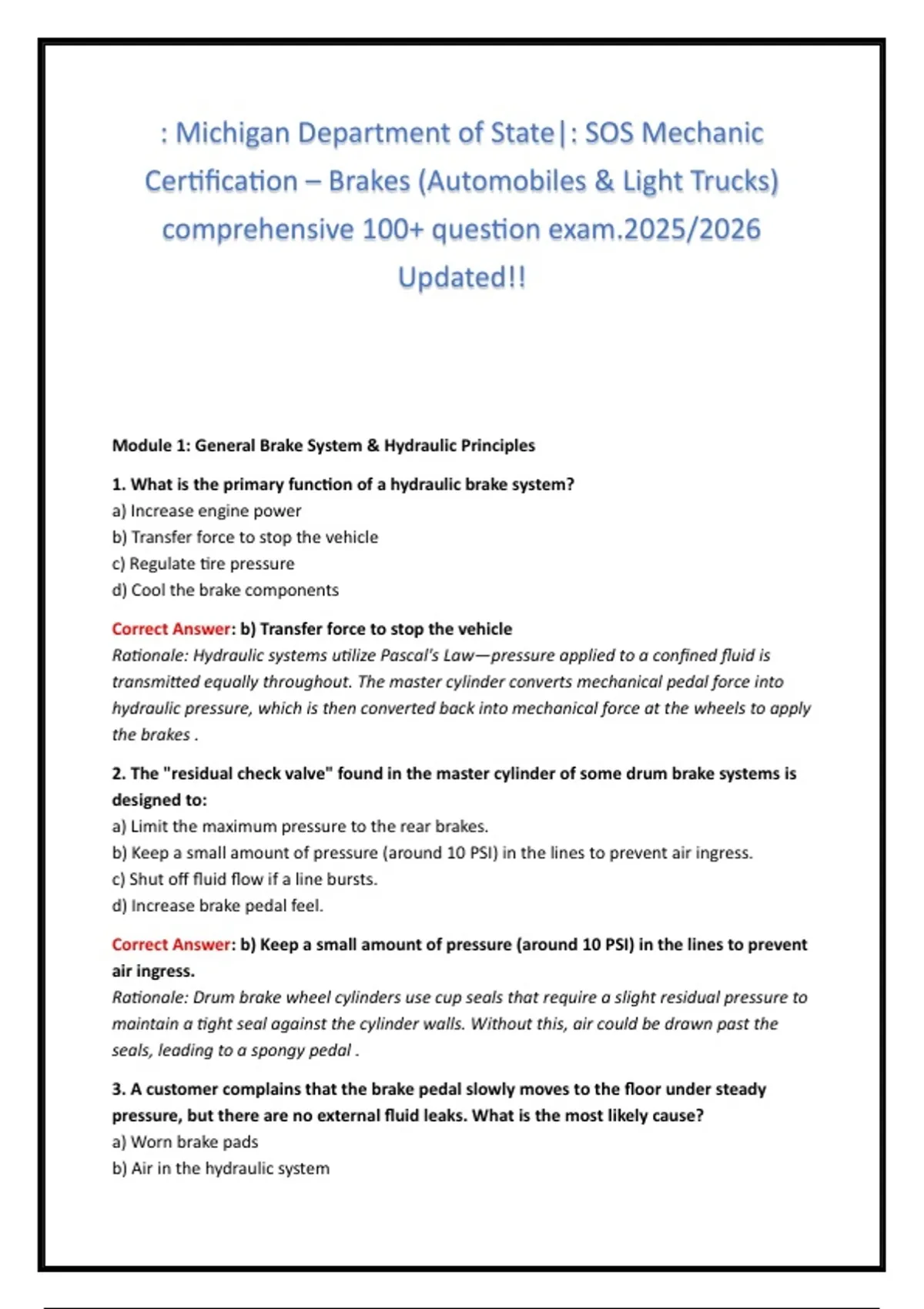

: Michigan Department of State|: SOS Mechanic
Certification – Brakes (Automobiles & Light Trucks)
comprehensive 100+ question exam.2025/2026
Updated!!
Module 1: General Brake System & Hydraulic Principles
1. What is the primary function of a hydraulic brake system?
a) Increase engine power
b) Transfer force to stop the vehicle
c) Regulate tire pressure
d) Cool the brake components
Correct Answer: b) Transfer force to stop the vehicle
Rationale: Hydraulic systems utilize Pascal's Law—pressure applied to a confined fluid is
transmitted equally throughout. The master cylinder converts mechanical pedal force into
hydraulic pressure, which is then converted back into mechanical force at the wheels to apply
the brakes .
2. The "residual check valve" found in the master cylinder of some drum brake systems is
designed to:
a) Limit the maximum pressure to the rear brakes.
b) Keep a small amount of pressure (around 10 PSI) in the lines to prevent air ingress.
c) Shut off fluid flow if a line bursts.
d) Increase brake pedal feel.
Correct Answer: b) Keep a small amount of pressure (around 10 PSI) in the lines to prevent
air ingress.
Rationale: Drum brake wheel cylinders use cup seals that require a slight residual pressure to
maintain a tight seal against the cylinder walls. Without this, air could be drawn past the
seals, leading to a spongy pedal .
3. A customer complains that the brake pedal slowly moves to the floor under steady
pressure, but there are no external fluid leaks. What is the most likely cause?
a) Worn brake pads
b) Air in the hydraulic system
,c) Internal leakage past the master cylinder primary cup
d) A collapsed rubber brake hose
Correct Answer: c) Internal leakage past the master cylinder primary cup
Rationale: If there are no external leaks, the fluid must be bypassing internal seals. A worn or
damaged primary cup in the master cylinder allows fluid to leak from the pressure chamber
back into the reservoir, causing the pedal to "sink" .
4. Brake fluid is hygroscopic, meaning it:
a) Boils at a very high temperature.
b) Absorbs moisture from the atmosphere.
c) Compresses easily under heat.
d) Lubricates rubber seals.
Correct Answer: b) Absorbs moisture from the atmosphere.
Rationale: This is a critical safety property. Over time, brake fluid absorbs water, which
lowers its boiling point (causing brake fade/vapor lock) and can corrode hydraulic
components from the inside .
5. What is the recommended procedure for disposing of used brake fluid?
a) Pour it down the sanitary sewer.
b) Burn it in a shop heater.
c) Collect it in a sealed container and dispose of it as hazardous waste.
d) Reuse it in the windshield washer reservoir.
Correct Answer: c) Collect it in a sealed container and dispose of it as hazardous waste.
Rationale: Brake fluid is toxic and an environmental contaminant. It must be handled
according to local hazardous waste disposal regulations, never mixed with used oil or
dumped.
6. What does a "spongy" brake pedal indicate?
a) Worn brake linings
b) Compressible air trapped in the hydraulic system
c) Seized caliper slide pins
d) Over-adjusted rear brakes
Correct Answer: b) Compressible air trapped in the hydraulic system
Rationale: Unlike brake fluid (which is incompressible), air is a gas that compresses when
pressure is applied. This compression results in a soft, spongy feel rather than a firm pedal .
7. The "piston bore" in a disc brake caliper is sealed by a square-cut O-ring. The primary
function of this ring is to:
a) Prevent brake fluid leaks.
b) Act as a return spring to retract the piston slightly.
, c) Transmit heat from the pad to the fluid.
d) Hold the brake pad against the rotor.
Correct Answer: b) Act as a return spring to retract the piston slightly.
Rationale: When the brakes are applied, pressure distorts the square-cut seal. When
pressure is released, the seal returns to its original shape, pulling the piston back slightly to
eliminate drag .
8. What type of brake line must be used to replace a damaged steel line on a modern
vehicle?
a) Copper tubing
b) Bundy tubing (double-walled steel) or approved corrosion-resistant steel
c) Standard black iron pipe
d) Rubber fuel hose
Correct Answer: b) Bundy tubing (double-walled steel) or approved corrosion-resistant
steel
*Rationale: Brake lines must withstand extremely high pressures (1000+ PSI). Copper is
generally too soft for structural safety on road vehicles, and rubber hose is for flexible
sections only. State regulations require specific steel lines for rigidity and burst strength .*
9. Technician A says DOT 5 brake fluid is silicone-based and should be used in all modern
ABS systems. Technician B says DOT 5.1 is glycol-based and can be mixed with DOT 3 or
DOT 4. Who is correct?
a) Technician A
b) Technician B
c) Both A and B
d) Neither A nor B
Correct Answer: b) Technician B
*Rationale: DOT 5 (silicone) does not absorb water and is not compatible with ABS systems
(which require the hygroscopic properties of glycol) nor mixable with other fluids. DOT 5.1 is
glycol-based and compatible with DOT 3/4, though it has a higher boiling point .*
10. Which component splits the hydraulic pressure to the left and right sides of the
vehicle?
a) Proportioning valve
b) Metering valve
c) Pressure differential switch
d) Split-block or distribution block
Correct Answer: d) Split-block or distribution block
Rationale: While valves modulate pressure, the physical distribution of fluid lines to the
wheels is typically managed by a distribution block or the master cylinder itself .
