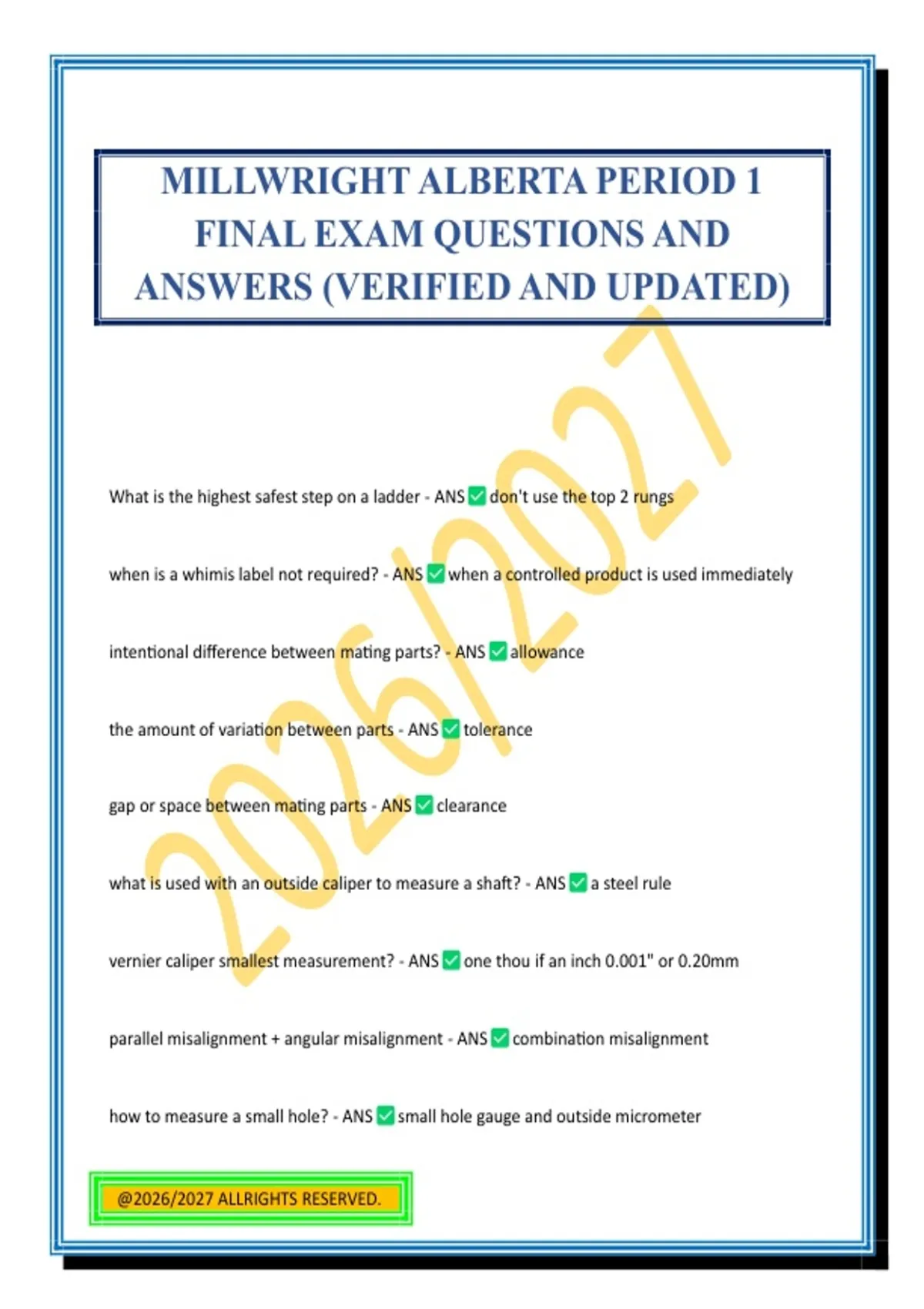

MILLWRIGHT ALBERTA PERIOD 1
FINAL EXAM QUESTIONS AND
ANSWERS (VERIFIED AND UPDATED)
What is the highest safest step on a ladder - ANS don't use the top 2 rungs
when is a whimis label not required? - ANS when a controlled product is used immediately
intentional difference between mating parts? - ANS allowance
the amount of variation between parts - ANS tolerance
gap or space between mating parts - ANS clearance
what is used with an outside caliper to measure a shaft? - ANS a steel rule
vernier caliper smallest measurement? - ANS one thou if an inch 0.001" or 0.20mm
parallel misalignment + angular misalignment - ANS combination misalignment
how to measure a small hole? - ANS small hole gauge and outside micrometer
@2026/2027 ALLRIGHTS RESERVED.
,Reading a Vernier bevel protractor in what ? - ANS main scale is degrees and vernier scale is
minutes indicates every 5 minutes = 1/12 of a degree
What has to be aligned during machine installation - ANS Centerlines
what's a datum line - ANS standard of comparison or point of reference
most important point prior to a layout is - ANS reference line/datum line
smallest dimension on a steel rule - ANS 1/64th
accuracy of a vernier caliper - ANS 0.01mm or 0.001" (one thou)
What do you use to set the axis of the threading tool at a right angle to the axis of the
workpiece? - ANS thread centre gauge (fishtail)
sensitive tool that is used to measure the depth of small holes and bores? - ANS depth
micrometer (scale runs opposite to most micrometers)
smallest measurement on a vernier metric micrometer - ANS 0.001 mm
Type of wrench used on a polished or smooth surface? - ANS Strap Wrench
Puller used for removing Bearing? - ANS Pressure Screw Puller
4 types of Pullers? - ANS pressure screw puller
Hydraulic puller
Slide hammer puller
@2026/2027 ALLRIGHTS RESERVED.
, Bar-style puller
What is a ball peen hammer used for? - ANS Riveting
# teeth on a hacksaw for cutting a 1" aluminum shaft? - ANS 14 pitch blade
a coarse pitch blade is best for - ANS soft material
a fine pitch blade is best for - ANS hard material
which file has the smoothest cut? - ANS Single cut file
Circle Snips have a - ANS Convex cutting edge
what die is used to cut an undersized thread? - ANS Adjustable screw plate die
how can you stop pinning on a file - ANS chalk the file face
what surface is used for lapping of a flat steel part? - ANS smooth cast iron plate
what is the main difference between hand taps in a standard set? - ANS the taper
3 types of hand taps in a standard set - ANS taper, plug and bottoming
which hand tap has no taper - ANS bottoming tap
maximum cut for a hand reamer - ANS .005"
@2026/2027 ALLRIGHTS RESERVED.
