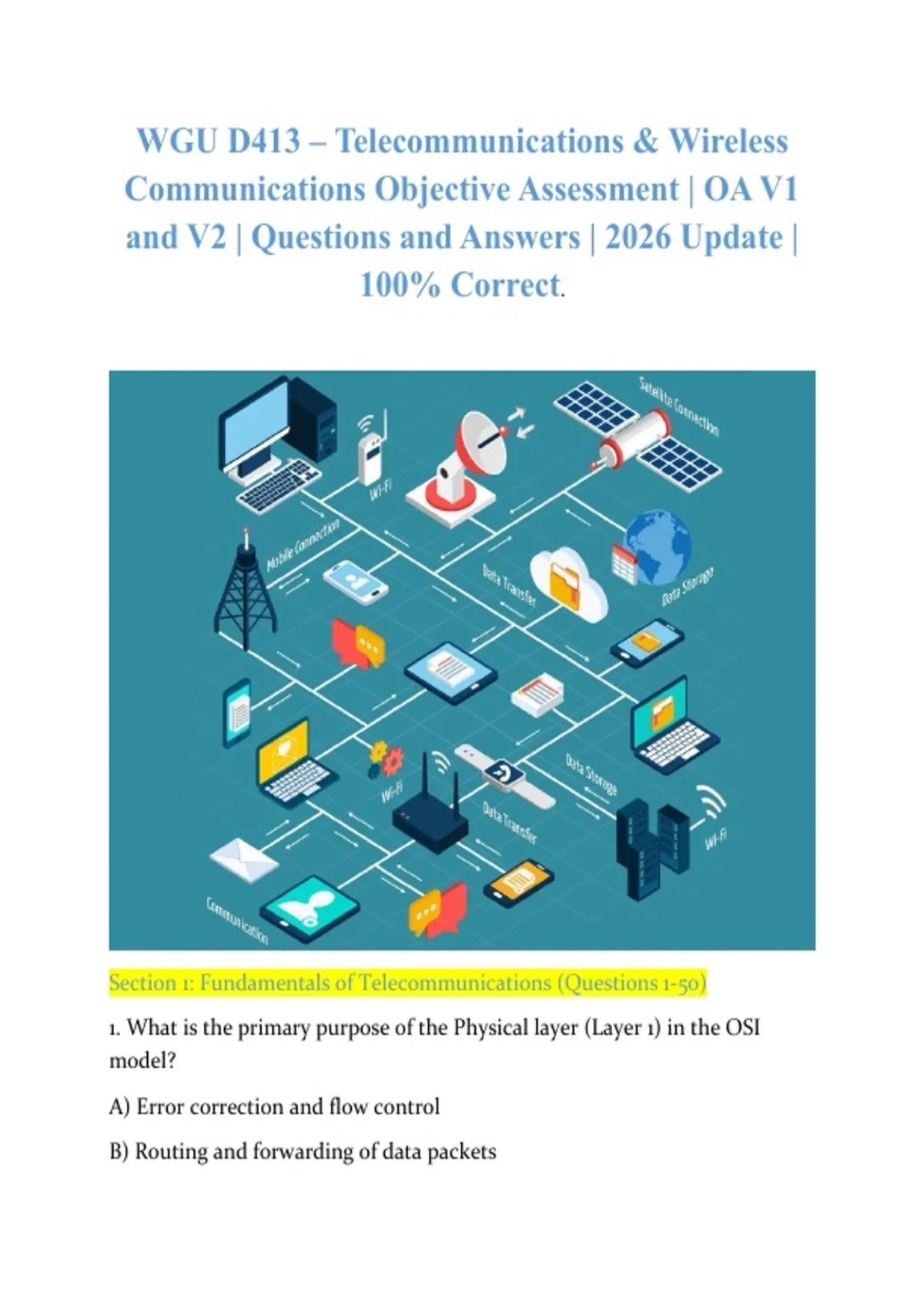

WGU D413 – Telecommunications & Wireless
Communications Objective Assessment | OA V1
and V2 | Questions and Answers | 2026 Update |
100% Correct.
Section 1: Fundamentals of Telecommunications (Questions 1-50)
1. What is the primary purpose of the Physical layer (Layer 1) in the OSI
model?
A) Error correction and flow control
B) Routing and forwarding of data packets
,C) Transmission of raw bits over a physical medium
D) Encryption and compression of data
Answer: C – The Physical layer is responsible for the transmission and
reception of unstructured raw data (bits) over a physical medium (copper
wire, fiber optic, radio frequency). It defines electrical signals, cable
specifications, and connectors.
2. Which of the following is the most common type of fiber optic connector
used in modern telecommunications?
A) ST (Straight Tip)
B) SC (Subscriber Connector)
C) LC (Lucent Connector)
D) FC (Ferrule Connector)
Answer: C – LC connectors are the most common in modern
telecommunications due to their small form factor, high density, and push-
pull latching mechanism. They are widely used in data centers and
enterprise networks.
3. What does the term "attenuation" refer to in telecommunications?
A) The bending of light around obstacles
B) The loss of signal strength as it travels through a medium
C) The interference caused by electromagnetic radiation
D) The reflection of signals at impedance mismatches
Answer: B – Attenuation is the reduction in signal strength (amplitude) as it
propagates through a transmission medium. It is measured in decibels (dB)
per unit distance.
4. Which frequency band is commonly used for 5G millimeter wave
(mmWave) communications?
,A) 600 MHz - 900 MHz
B) 2.4 GHz - 2.5 GHz
C) 24 GHz - 100 GHz
D) 5 GHz - 6 GHz
Answer: C – 5G mmWave operates in the 24-100 GHz range, offering
extremely high data rates (multi-gigabit) but limited range and poor
penetration through obstacles.
5. What is the difference between single-mode and multi-mode fiber optic
cable?
A) Single-mode uses LED light sources; multi-mode uses lasers
B) Single-mode has a smaller core diameter (8-10 μm) and supports longer
distances
C) Single-mode is cheaper than multi-mode
D) Single-mode cannot be used for telecommunications
Answer: B – Single-mode fiber has a smaller core (8-10 μm) that allows only
one mode of light propagation, enabling longer distances (up to 100 km)
with lower attenuation. Multi-mode fiber has a larger core (50-62.5 μm) and
is used for shorter distances.
6. What is the maximum theoretical data rate of Category 6a (Cat6a) twisted
pair cable?
A) 100 Mbps
B) 1 Gbps
C) 10 Gbps
D) 40 Gbps
Answer: C – Cat6a supports 10 Gbps at distances up to 100 meters. Cat6
supports 10 Gbps up to 55 meters. Cat5e supports 1 Gbps up to 100 meters.
, 7. Which OSI layer is responsible for logical addressing (IP addresses) and
routing?
A) Physical layer (Layer 1)
B) Data Link layer (Layer 2)
C) Network layer (Layer 3)
D) Transport layer (Layer 4)
Answer: C – The Network layer (Layer 3) handles logical addressing (IP
addresses) and routing of packets between networks. The Data Link layer
(Layer 2) handles physical addressing (MAC addresses) within the same
network.
8. What is the purpose of Time Division Multiplexing (TDM)?
A) To combine multiple signals by dividing the frequency spectrum
B) To combine multiple signals by interleaving them in time slots
C) To separate signals based on their phase
D) To amplify signals for long-distance transmission
Answer: B – TDM divides the transmission channel into discrete time slots,
each assigned to a different signal. This allows multiple signals to share the
same physical medium.
9. Which wireless technology operates in the 2.4 GHz ISM band and has a
maximum data rate of 11 Mbps?
A) 802.11a
B) 802.11b
C) 802.11g
D) 802.11n
