CWB 47.1 EXAM QUESTIONS AND ANSWERS

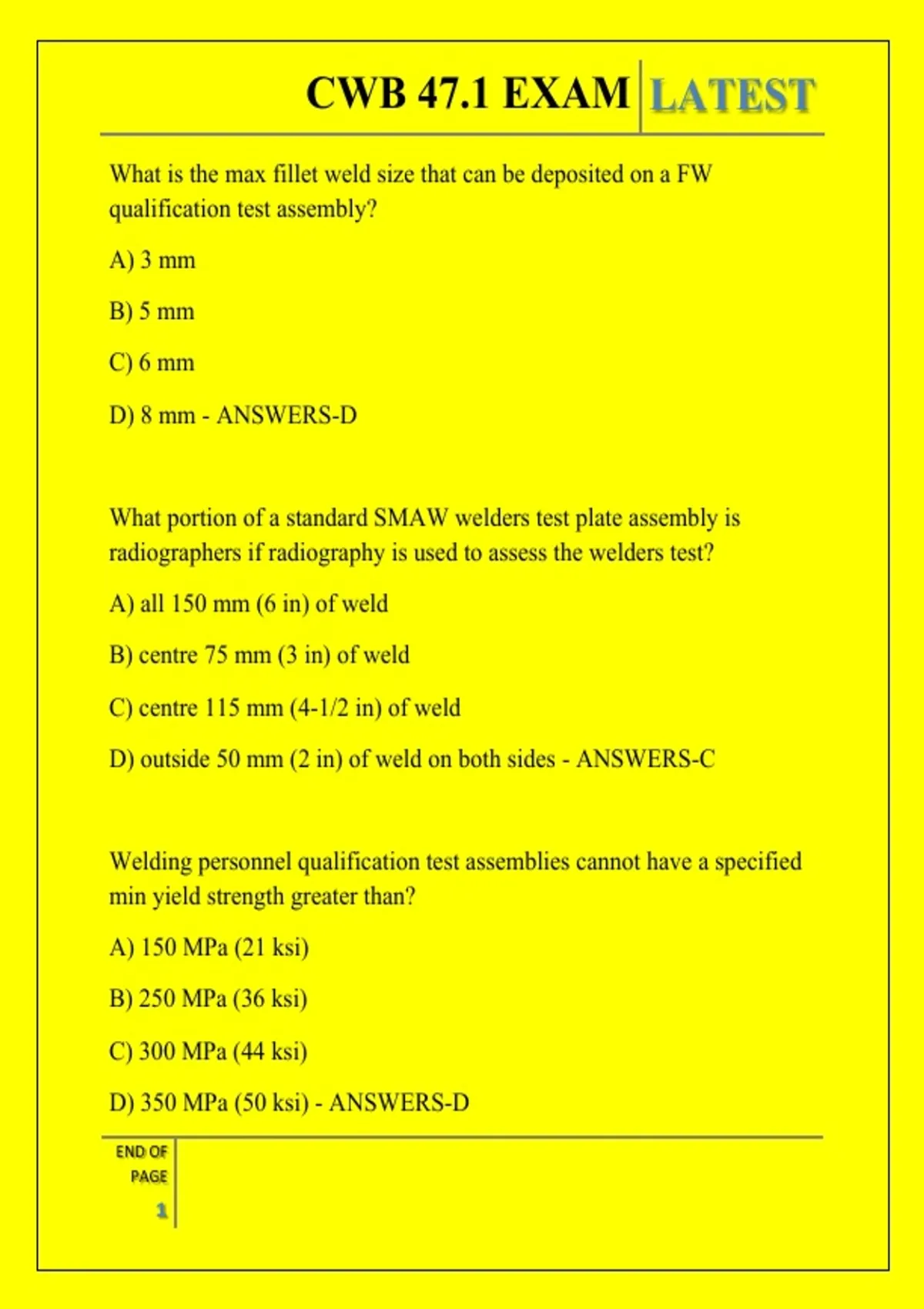

CWB 47.1 EXAM LATEST
What is the max fillet weld size that can be deposited on a FW
qualification test assembly?
A) 3 mm
B) 5 mm
C) 6 mm
D) 8 mm - ANSWERS-D


What portion of a standard SMAW welders test plate assembly is
radiographers if radiography is used to assess the welders test?
A) all 150 mm (6 in) of weld
B) centre 75 mm (3 in) of weld
C) centre 115 mm (4-1/2 in) of weld
D) outside 50 mm (2 in) of weld on both sides - ANSWERS-C


Welding personnel qualification test assemblies cannot have a specified
min yield strength greater than?
A) 150 MPa (21 ksi)
B) 250 MPa (36 ksi)
C) 300 MPa (44 ksi)
D) 350 MPa (50 ksi) - ANSWERS-D
END OF
PAGE
1

, CWB 47.1 EXAM LATEST

What is the max diameter of SMAW electrode that may be used for the
standard tack welders qualification test?
A) 3 mm
B) 4 mm
C) 4.5 mm
D) 6 mm - ANSWERS-B


Which one of the following electrodes is a group F4 electrode?
A) EXX28
B) EXX14
C) EXX18
D) EXX11 - ANSWERS-C


What is the root opening of an option 1 plate test assembly to be welding
in the 2F position with the SMAW process?
A) 6mm
B) 8mm
C) 12mm
D) 13mm - ANSWERS-B
