CM 2500 Exam 2 - Part 2 | Score 16/17 | Louisiana State University

Module 5: Shear and Moment | Bending Stress / Exam 2 - Part 2 (Problems) PROCTORED THROUGH EXAMITY



Information

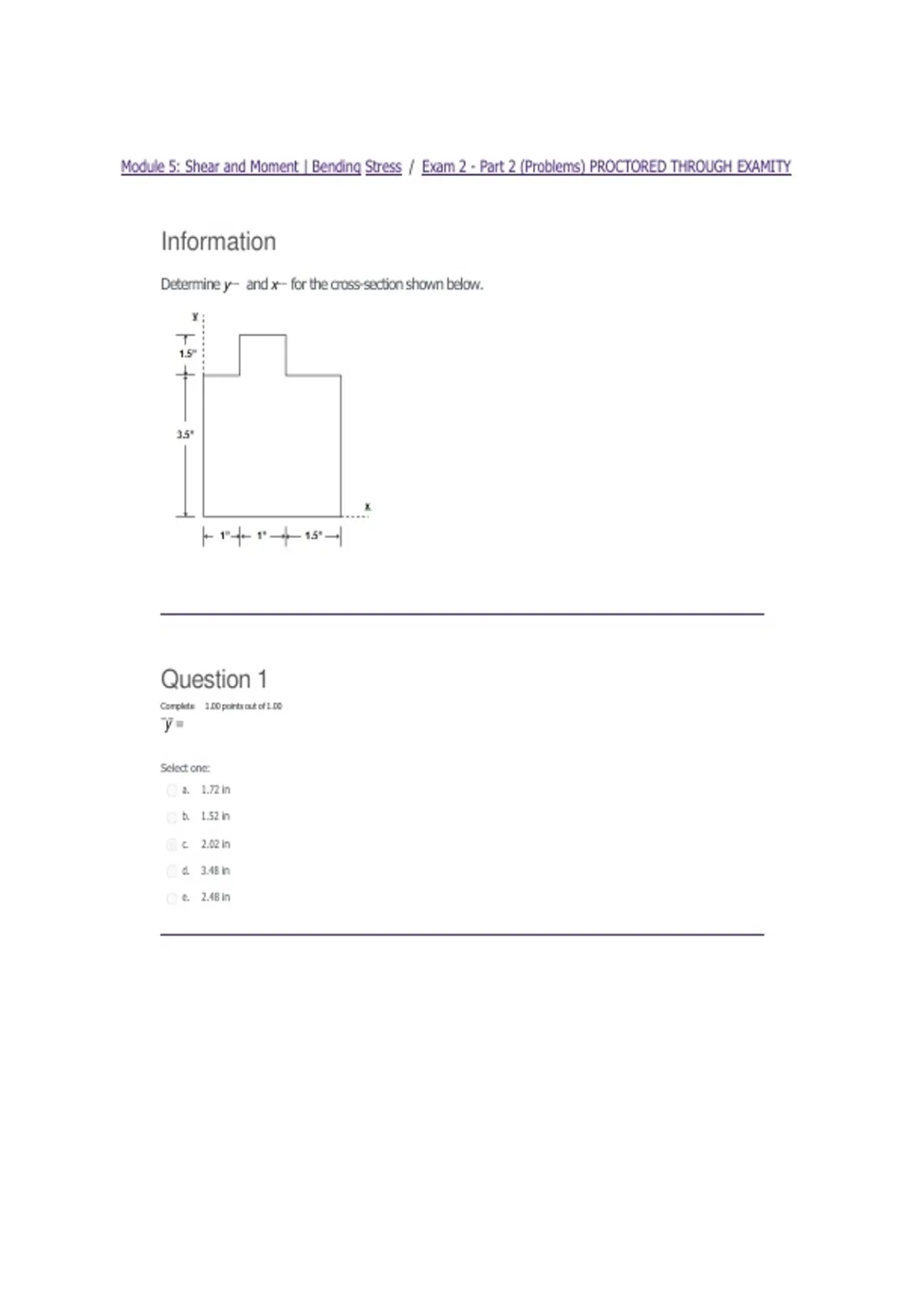

Determine y⎯⎯ and x⎯⎯ for the cross-section shown below.




Question 1
Complete 1.00 points out of 1.00
⎯⎯
y=

Select one:
a. 1.72 in

b. 1.52 in

c. 2.02 in

d. 3.48 in

e. 2.48 in

, Question 2
Complete 1.00 points out of 1.00
⎯⎯
x=

Select one:
a. 1.72 in

b. 1.52 in

c. 2.02 in

d. 3.48 in

e. 2.48 in




Information
Determine the Moment of inertia about the x-axis, of each built-up cross-sections shown below.




Question 3
Complete 1.00 points out of 1.00

Moment of inertia =

Select one:
a. 1850 in4

b. 3660 in4

c. 5860 in4

d. 6880 in4

e. 7320 in4
