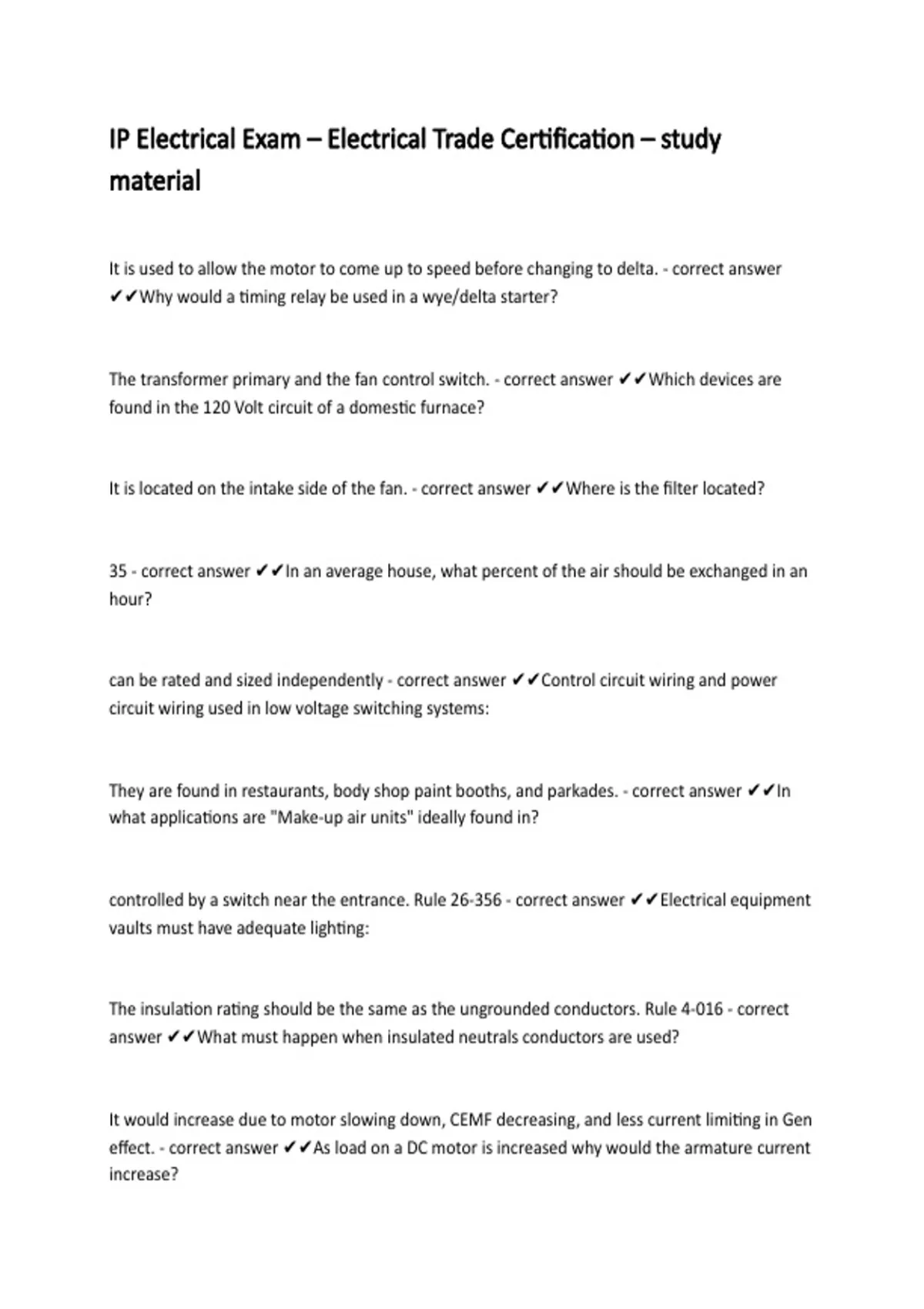

IP Electrical Exam – Electrical Trade Certification – study
material
It is used to allow the motor to come up to speed before changing to delta. - correct answer
✔✔Why would a timing relay be used in a wye/delta starter?
The transformer primary and the fan control switch. - correct answer ✔✔Which devices are
found in the 120 Volt circuit of a domestic furnace?
It is located on the intake side of the fan. - correct answer ✔✔Where is the filter located?
35 - correct answer ✔✔In an average house, what percent of the air should be exchanged in an
hour?
can be rated and sized independently - correct answer ✔✔Control circuit wiring and power
circuit wiring used in low voltage switching systems:
They are found in restaurants, body shop paint booths, and parkades. - correct answer ✔✔In
what applications are "Make-up air units" ideally found in?
controlled by a switch near the entrance. Rule 26-356 - correct answer ✔✔Electrical equipment
vaults must have adequate lighting:
The insulation rating should be the same as the ungrounded conductors. Rule 4-016 - correct
answer ✔✔What must happen when insulated neutrals conductors are used?
It would increase due to motor slowing down, CEMF decreasing, and less current limiting in Gen
effect. - correct answer ✔✔As load on a DC motor is increased why would the armature current
increase?
,It is known as a differential-compounded generator. - correct answer ✔✔What is a "constant-
current" DC generator known as?
hot surface igniter (symbol of it) - correct answer ✔✔In a HVAC unit, which component heats
up to the combustion temperature of gas to provide ignition?
They provide the sequential order of operation in its simplest form. - correct answer ✔✔Why
are schematic diagrams are useful for troubleshooting furnaces?
It is mounted indoors and absorbs heat from the blower air. - correct answer ✔✔Where is the
evaporator coil of a cooling system mounted?
562500 cmils. - correct answer ✔✔What is the cross sectional area of a conductor that has a
diameter of 0.75 of an inch?
No. 14 AWG copper. Rule 22-104 - correct answer ✔✔Referring to Section 22, pendant
lampholders must be of the weatherproof type and hung from insulated stranded conductors of
not less than:
10.5 times the diameter of the cable for low voltage cable. (High volt is 18 times) Found in Rule
12-614 - correct answer ✔✔What is the minimum bending radii measured at the innermost
surface of the conduit when armoured cables are installed in accordance with rule 12-602?
There are third guardrail secured in place. - correct answer ✔✔When can an electrician carry
out work on top of a scaffolding?
200, Rule 12-910 - correct answer ✔✔What is the maximum number of conductors allowed in
one conduit?
, They would be called isolating diodes. - correct answer ✔✔What would the diodes that would
be used in a truck and camper with two separate batteries be called?
Table 4 and Table 5C. - correct answer ✔✔What Tables are used to determine the ampacity of
25 Aluminum #8 AWG insulated conductors run in a raceway or cable through a room that is
30°C in temperature?
Attachment plug; Rule 28-500 3/ a/ - correct answer ✔✔Which of the following means cannot
be used for controlling a 0.5Hp, 3 phases motor?
#12 AWG, Rule 4-002 - correct answer ✔✔What is the smallest conductor allowed for branch
circuit wiring using aluminum?
On large light and power installations. Rule 2-014 - correct answer ✔✔When are electrical plans
and specifications required by the inspection department?
#18 AWG; Rule 16-104 1/ b/ and Rule 12-108 5/ - correct answer ✔✔A control circuit is
required to carry 2A of current at 600V. If the control conductors are to be run in parallel, what
is the minimum size?
4; Rule 32-308 2/ - correct answer ✔✔What is minimum number of transfer switch required in
a building that has 3 Fire pumps and an emergency exit and lighting system?
The ambient temperature. Rule 6-302 - correct answer ✔✔When determining the insulation
requirements for overhead service conductors, which of the following variables are important?
6 kW; Explanation in Rule 8-202 - correct answer ✔✔An apartment has 13 suites with living
areas of 110 meters squared. What is the basic load applied toward the apartment feeder,
based on the area of the suite?
