Certificate of Qualification Instrumentation and
Control Technician (447A) Exam

Questions with Correct Answers and Explanations |
LATEST THIS YEAR - JUST RELEASED
Instructions: Select the best answer for each question. This practice exam covers the full
scope of the 447A C of Q, including trade mathematics, instrumentation principles,
process control, PLCs, safety systems, and applicable codes.

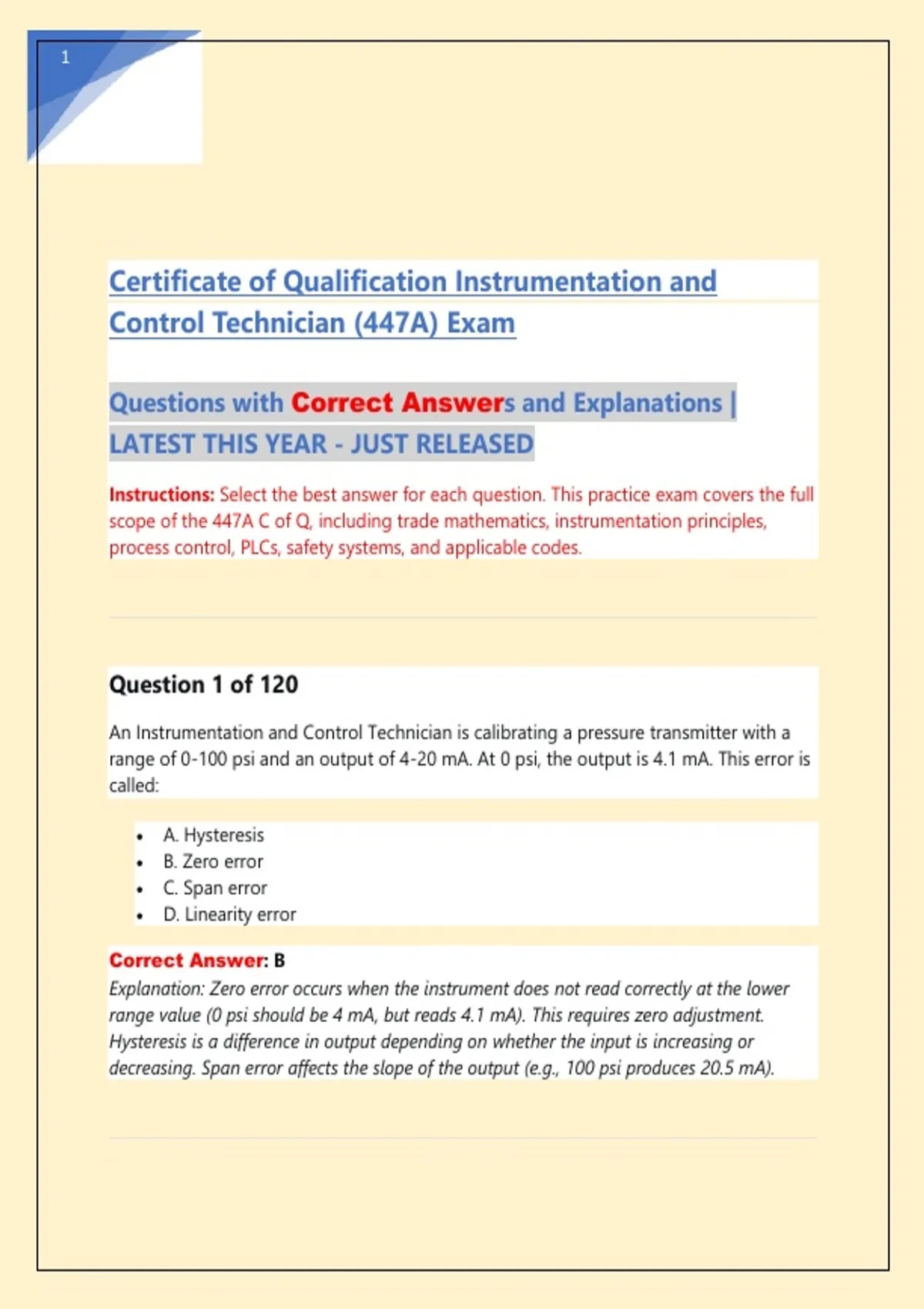

Question 1 of 120
An Instrumentation and Control Technician is calibrating a pressure transmitter with a
range of 0-100 psi and an output of 4-20 mA. At 0 psi, the output is 4.1 mA. This error is
called:

• A. Hysteresis
• B. Zero error
• C. Span error
• D. Linearity error

Correct Answer: B
Explanation: Zero error occurs when the instrument does not read correctly at the lower
range value (0 psi should be 4 mA, but reads 4.1 mA). This requires zero adjustment.
Hysteresis is a difference in output depending on whether the input is increasing or
decreasing. Span error affects the slope of the output (e.g., 100 psi produces 20.5 mA).

,2



Question 2 of 120
A technician is troubleshooting a 4-20 mA current loop. The loop power supply is 24
VDC. The transmitter is rated for a minimum operating voltage of 12 VDC. The total loop
resistance is 500 ohms. What is the voltage drop across the loop?

• A. 5 V
• B. 10 V
• C. 12 V
• D. 24 V

Correct Answer: B
*Explanation: Using Ohm's law: V = I × R. At 20 mA (0.020 A) × 500 Ω = 10 V. This is the
voltage drop across the loop resistance. The transmitter receives the remaining voltage:
24 V - 10 V = 14 V, which is above the 12 V minimum requirement.*




Question 3 of 120
Which of the following thermocouple types has the highest temperature range?

• A. Type J (iron-constantan)
• B. Type K (chromel-alumel)
• C. Type T (copper-constantan)
• D. Type S (platinum-rhodium)

Correct Answer: D
*Explanation: Type S thermocouples (platinum-10% rhodium vs platinum) are used for
high-temperature applications up to 1768°C (3214°F). Type K ranges from -200°C to
+1260°C, Type J from -40°C to +750°C, and Type T from -200°C to +350°C. Type S is
commonly used in high-temperature industrial processes and laboratories.*




Question 4 of 120

,3


A technician is calibrating a differential pressure (DP) transmitter used for flow
measurement. The DP range is 0-100 inches of water column (inH₂O) corresponding to
4-20 mA. The flow is proportional to the square root of the DP. At 25 inH₂O, what is the
expected output current?

• A. 8 mA
• B. 10 mA
• C. 12 mA
• D. 16 mA

Correct Answer: C
*Explanation: Flow is proportional to the square root of DP. At 25 inH₂O (25% of full
scale), the flow is √0.25 = 0.5 or 50% of full flow. Output current = 4 mA + (0.5 × 16 mA)
= 4 + 8 = 12 mA. This square root relationship is essential for DP flow measurement.*




Question 5 of 120
A technician is working on a pneumatic control loop with a 3-15 psi signal. The I/P
converter output is 9 psi. What percentage of output does this represent?

• A. 25%
• B. 50%
• C. 75%
• D. 100%

Correct Answer: B
*Explanation: For a 3-15 psi signal, span = 12 psi. At 9 psi: (9 - 3) / 12 = = 0.5 =
50%. The 3-15 psi standard is common in pneumatic instrumentation. A 3 psi signal is
0%, 15 psi is 100%.*




Question 6 of 120
Which of the following logic gates produces a HIGH output only when all inputs are
HIGH?

, 4


• A. OR gate
• B. AND gate
• C. NAND gate
• D. NOR gate

Correct Answer: B
*Explanation: An AND gate outputs HIGH (1) only when all inputs are HIGH. OR gate
outputs HIGH when any input is HIGH. NAND gate is the inverse of AND. NOR gate is
the inverse of OR. Boolean expression for AND: Y = A · B.*




Question 7 of 120
A technician is troubleshooting a 4-20 mA loop where the transmitter output is reading
24 mA. Which of the following is the most likely cause?

• A. Open circuit in the loop
• B. Short circuit in the loop
• C. Transmitter in alarm mode (high)
• D. Power supply failure

Correct Answer: C
*Explanation: A 4-20 mA transmitter typically outputs above 20 mA (e.g., 21-24 mA) to
indicate an alarm condition such as a sensor failure or process over-range. Open circuit
would read 0 mA (or no current). Short circuit would draw excessive current but often
blow a fuse. Power supply failure would cause 0 mA.*




Question 8 of 120
What is the purpose of a HART communicator?

• A. To provide power to the loop
• B. To communicate digitally with smart transmitters over the 4-20 mA loop
• C. To convert 4-20 mA to a pneumatic signal
• D. To measure loop resistance
