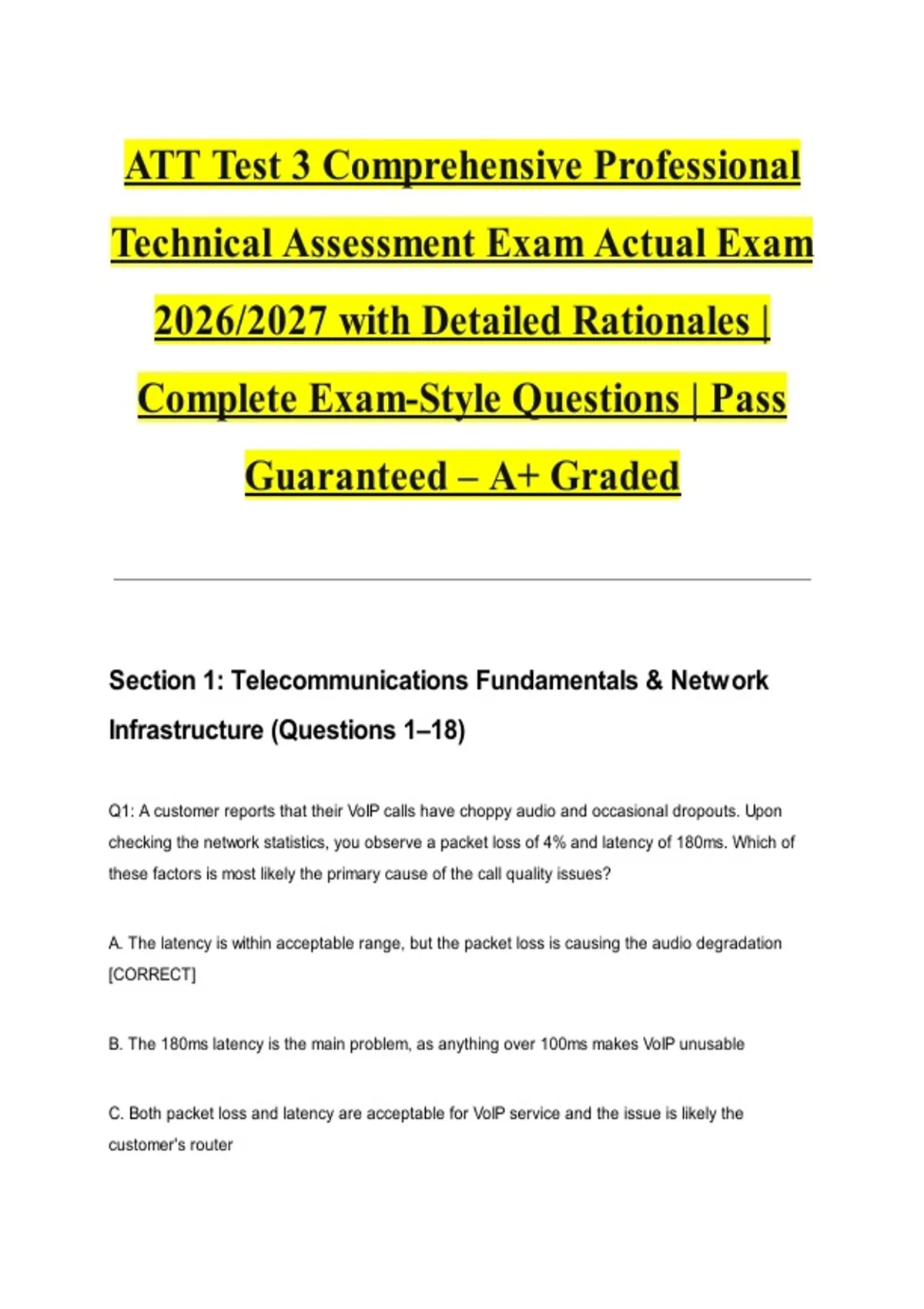

ATT Test 3 Comprehensive Professional
Technical Assessment Exam Actual Exam
2026/2027 with Detailed Rationales |
Complete Exam-Style Questions | Pass
Guaranteed – A+ Graded
Section 1: Telecommunications Fundamentals & Network
Infrastructure (Questions 1–18)
Q1: A customer reports that their VoIP calls have choppy audio and occasional dropouts. Upon
checking the network statistics, you observe a packet loss of 4% and latency of 180ms. Which of
these factors is most likely the primary cause of the call quality issues?
A. The latency is within acceptable range, but the packet loss is causing the audio degradation
[CORRECT]
B. The 180ms latency is the main problem, as anything over 100ms makes VoIP unusable
C. Both packet loss and latency are acceptable for VoIP service and the issue is likely the
customer's router
,D. The jitter is the primary concern here, not the packet loss or latency
Correct Answer: A
Rationale: The best answer is A. In telecommunications, packet loss above 1-2% significantly
degrades VoIP call quality because lost packets result in gaps in audio streams. While 180ms
latency is higher than ideal (target is typically under 150ms), it's still usable; however, 4% packet
loss is definitely outside acceptable parameters for quality voice service. ATT standards require
addressing packet loss issues first when troubleshooting VoIP quality complaints.
Q2: Which of the following best describes the relationship between bandwidth and throughput in a
DSL circuit?
A. Bandwidth and throughput are always identical measurements of the same network capacity
B. Bandwidth is the theoretical maximum capacity while throughput is the actual data rate achieved
[CORRECT]
C. Throughput is always higher than bandwidth due to compression technologies
D. Bandwidth measures upload speed only, while throughput measures download speed
Correct Answer: B
Rationale: The best answer is B. In telecommunications, bandwidth represents the theoretical
maximum data capacity of a connection (like the pipe size), while throughput is the actual measured
data transfer rate achieved (the water flowing through). In the field, we typically see throughput
running 10-15% below the advertised bandwidth due to overhead, network congestion, and other
real-world factors.
,Q3: A VDSL2 circuit is provisioned for 100 Mbps downstream. The line statistics show a
signal-to-noise ratio (SNR) of 8 dB and attenuation of 45 dB. What do these readings indicate
about the line quality?
A. The line has excellent quality with plenty of margin for higher speeds
B. The SNR is marginal but acceptable, while the attenuation is within normal limits [CORRECT]
C. Both SNR and attenuation indicate the line is performing at maximum capacity
D. The attenuation is too high and the circuit will likely fail completely
Correct Answer: B
Rationale: The best answer is B. For VDSL2 circuits, ATT standards require an SNR margin above
6 dB for stable operation—8 dB is at the lower end of acceptable but still workable. Attenuation
under 55 dB is considered within normal operating range for VDSL2. This line is functional but
doesn't have much headroom for speed upgrades or adverse conditions.
Q4: In a PON (Passive Optical Network) architecture, what is the function of the OLT (Optical Line
Terminal)?
A. The OLT is the customer-side device that converts optical signals to Ethernet for home use
B. The OLT is the central office equipment that manages traffic to multiple ONTs and coordinates
the PON [CORRECT]
, C. The OLT is a passive splitter that divides optical signals among multiple fibers
D. The OLT is a type of fiber connector used for high-density applications
Correct Answer: B
Rationale: The best answer is B. In GPON and XGS-PON networks, the OLT sits at the central
office or headend and serves as the aggregation point, managing bandwidth allocation and
communication with up to 64 or 128 customer ONTs. ATT fiber deployments rely on OLTs to
coordinate upstream and downstream traffic in these shared fiber architectures.
Q5: A field technician is troubleshooting a slow DSL connection. The line stats show an attenuation
of 62 dB. What is the most likely implication?
A. The line is very short and capable of extremely high speeds
B. The attenuation is normal and indicates good line quality
C. The loop length is too long for reliable high-speed DSL service [CORRECT]
D. The measurement indicates a bridge tap that needs to be removed
Correct Answer: C
Rationale: The best answer is C. In copper loop plant, attenuation increases with distance—62 dB
indicates a very long loop length (typically over 15,000 feet). ATT engineering standards show that
attenuation above 55 dB significantly limits DSL speeds and reliability. This customer is likely at the
edge of serviceable range or may need a different technology like fiber or fixed wireless.
Technical Assessment Exam Actual Exam
2026/2027 with Detailed Rationales |
Complete Exam-Style Questions | Pass
Guaranteed – A+ Graded
Section 1: Telecommunications Fundamentals & Network
Infrastructure (Questions 1–18)
Q1: A customer reports that their VoIP calls have choppy audio and occasional dropouts. Upon
checking the network statistics, you observe a packet loss of 4% and latency of 180ms. Which of
these factors is most likely the primary cause of the call quality issues?
A. The latency is within acceptable range, but the packet loss is causing the audio degradation
[CORRECT]
B. The 180ms latency is the main problem, as anything over 100ms makes VoIP unusable
C. Both packet loss and latency are acceptable for VoIP service and the issue is likely the
customer's router
,D. The jitter is the primary concern here, not the packet loss or latency
Correct Answer: A
Rationale: The best answer is A. In telecommunications, packet loss above 1-2% significantly
degrades VoIP call quality because lost packets result in gaps in audio streams. While 180ms
latency is higher than ideal (target is typically under 150ms), it's still usable; however, 4% packet
loss is definitely outside acceptable parameters for quality voice service. ATT standards require
addressing packet loss issues first when troubleshooting VoIP quality complaints.
Q2: Which of the following best describes the relationship between bandwidth and throughput in a
DSL circuit?
A. Bandwidth and throughput are always identical measurements of the same network capacity
B. Bandwidth is the theoretical maximum capacity while throughput is the actual data rate achieved
[CORRECT]
C. Throughput is always higher than bandwidth due to compression technologies
D. Bandwidth measures upload speed only, while throughput measures download speed
Correct Answer: B
Rationale: The best answer is B. In telecommunications, bandwidth represents the theoretical
maximum data capacity of a connection (like the pipe size), while throughput is the actual measured
data transfer rate achieved (the water flowing through). In the field, we typically see throughput
running 10-15% below the advertised bandwidth due to overhead, network congestion, and other
real-world factors.
,Q3: A VDSL2 circuit is provisioned for 100 Mbps downstream. The line statistics show a
signal-to-noise ratio (SNR) of 8 dB and attenuation of 45 dB. What do these readings indicate
about the line quality?
A. The line has excellent quality with plenty of margin for higher speeds
B. The SNR is marginal but acceptable, while the attenuation is within normal limits [CORRECT]
C. Both SNR and attenuation indicate the line is performing at maximum capacity
D. The attenuation is too high and the circuit will likely fail completely
Correct Answer: B
Rationale: The best answer is B. For VDSL2 circuits, ATT standards require an SNR margin above
6 dB for stable operation—8 dB is at the lower end of acceptable but still workable. Attenuation
under 55 dB is considered within normal operating range for VDSL2. This line is functional but
doesn't have much headroom for speed upgrades or adverse conditions.
Q4: In a PON (Passive Optical Network) architecture, what is the function of the OLT (Optical Line
Terminal)?
A. The OLT is the customer-side device that converts optical signals to Ethernet for home use
B. The OLT is the central office equipment that manages traffic to multiple ONTs and coordinates
the PON [CORRECT]
, C. The OLT is a passive splitter that divides optical signals among multiple fibers
D. The OLT is a type of fiber connector used for high-density applications
Correct Answer: B
Rationale: The best answer is B. In GPON and XGS-PON networks, the OLT sits at the central
office or headend and serves as the aggregation point, managing bandwidth allocation and
communication with up to 64 or 128 customer ONTs. ATT fiber deployments rely on OLTs to
coordinate upstream and downstream traffic in these shared fiber architectures.
Q5: A field technician is troubleshooting a slow DSL connection. The line stats show an attenuation
of 62 dB. What is the most likely implication?
A. The line is very short and capable of extremely high speeds
B. The attenuation is normal and indicates good line quality
C. The loop length is too long for reliable high-speed DSL service [CORRECT]
D. The measurement indicates a bridge tap that needs to be removed
Correct Answer: C
Rationale: The best answer is C. In copper loop plant, attenuation increases with distance—62 dB
indicates a very long loop length (typically over 15,000 feet). ATT engineering standards show that
attenuation above 55 dB significantly limits DSL speeds and reliability. This customer is likely at the
edge of serviceable range or may need a different technology like fiber or fixed wireless.
