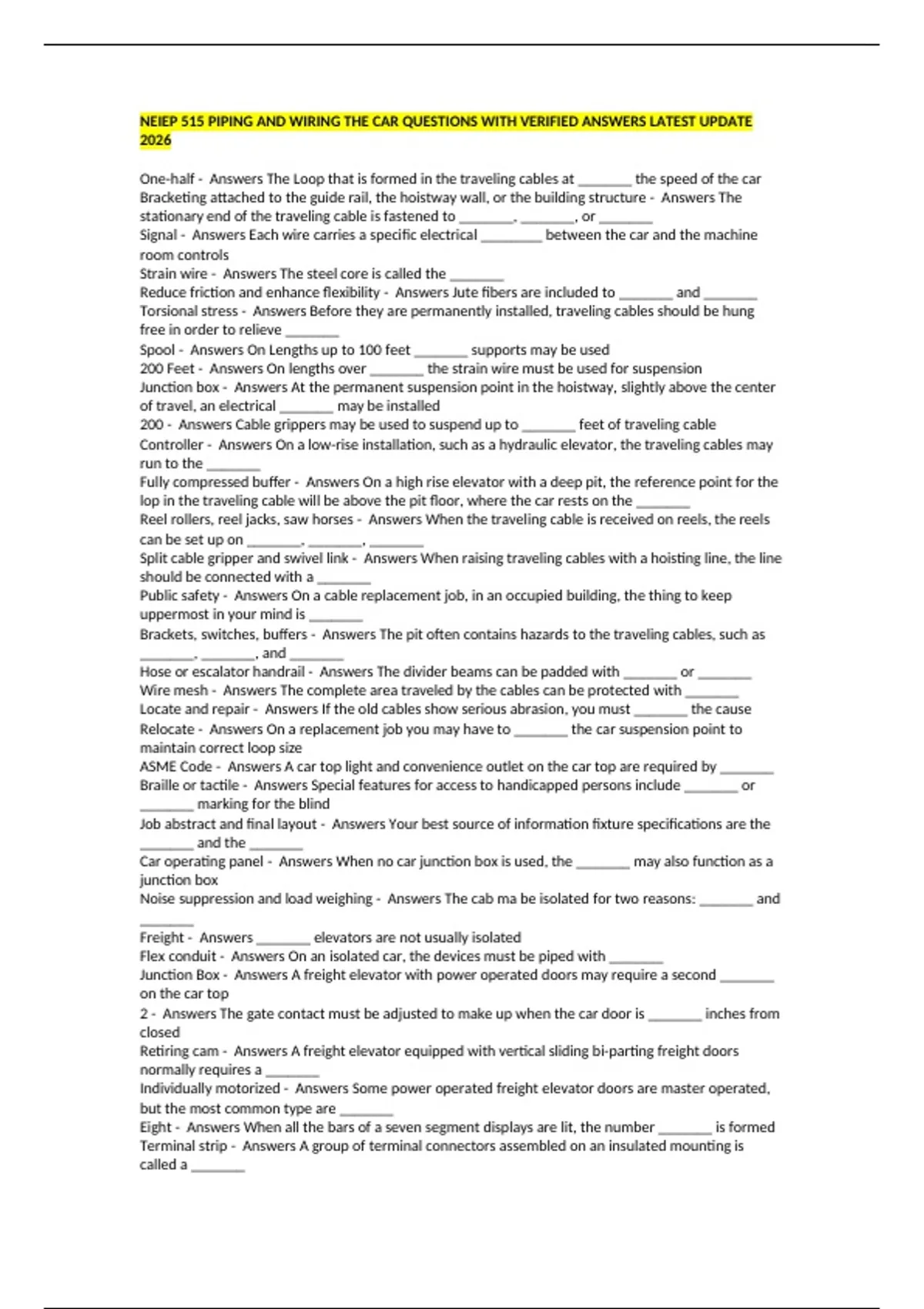

NEIEP 515 PIPING AND WIRING THE CAR QUESTIONS WITH VERIFIED ANSWERS LATEST UPDATE
2026
One-half - Answers The Loop that is formed in the traveling cables at _______ the speed of the car
Bracketing attached to the guide rail, the hoistway wall, or the building structure - Answers The
stationary end of the traveling cable is fastened to _______, _______, or _______
Signal - Answers Each wire carries a specific electrical ________ between the car and the machine
room controls
Strain wire - Answers The steel core is called the _______
Reduce friction and enhance flexibility - Answers Jute fibers are included to _______ and _______
Torsional stress - Answers Before they are permanently installed, traveling cables should be hung
free in order to relieve _______
Spool - Answers On Lengths up to 100 feet _______ supports may be used
200 Feet - Answers On lengths over _______ the strain wire must be used for suspension
Junction box - Answers At the permanent suspension point in the hoistway, slightly above the center
of travel, an electrical _______ may be installed
200 - Answers Cable grippers may be used to suspend up to _______ feet of traveling cable
Controller - Answers On a low-rise installation, such as a hydraulic elevator, the traveling cables may
run to the _______
Fully compressed buffer - Answers On a high rise elevator with a deep pit, the reference point for the
lop in the traveling cable will be above the pit floor, where the car rests on the _______
Reel rollers, reel jacks, saw horses - Answers When the traveling cable is received on reels, the reels
can be set up on _______, _______, _______
Split cable gripper and swivel link - Answers When raising traveling cables with a hoisting line, the line
should be connected with a _______
Public safety - Answers On a cable replacement job, in an occupied building, the thing to keep
uppermost in your mind is _______
Brackets, switches, buffers - Answers The pit often contains hazards to the traveling cables, such as
_______, _______, and _______
Hose or escalator handrail - Answers The divider beams can be padded with _______ or _______
Wire mesh - Answers The complete area traveled by the cables can be protected with _______
Locate and repair - Answers If the old cables show serious abrasion, you must _______ the cause
Relocate - Answers On a replacement job you may have to _______ the car suspension point to
maintain correct loop size
ASME Code - Answers A car top light and convenience outlet on the car top are required by _______
Braille or tactile - Answers Special features for access to handicapped persons include _______ or
_______ marking for the blind
Job abstract and final layout - Answers Your best source of information fixture specifications are the
_______ and the _______
Car operating panel - Answers When no car junction box is used, the _______ may also function as a
junction box
Noise suppression and load weighing - Answers The cab ma be isolated for two reasons: _______ and
_______
Freight - Answers _______ elevators are not usually isolated
Flex conduit - Answers On an isolated car, the devices must be piped with _______
Junction Box - Answers A freight elevator with power operated doors may require a second _______
on the car top
2 - Answers The gate contact must be adjusted to make up when the car door is _______ inches from
closed
Retiring cam - Answers A freight elevator equipped with vertical sliding bi-parting freight doors
normally requires a _______
Individually motorized - Answers Some power operated freight elevator doors are master operated,
but the most common type are _______
Eight - Answers When all the bars of a seven segment displays are lit, the number _______ is formed
Terminal strip - Answers A group of terminal connectors assembled on an insulated mounting is
called a _______
