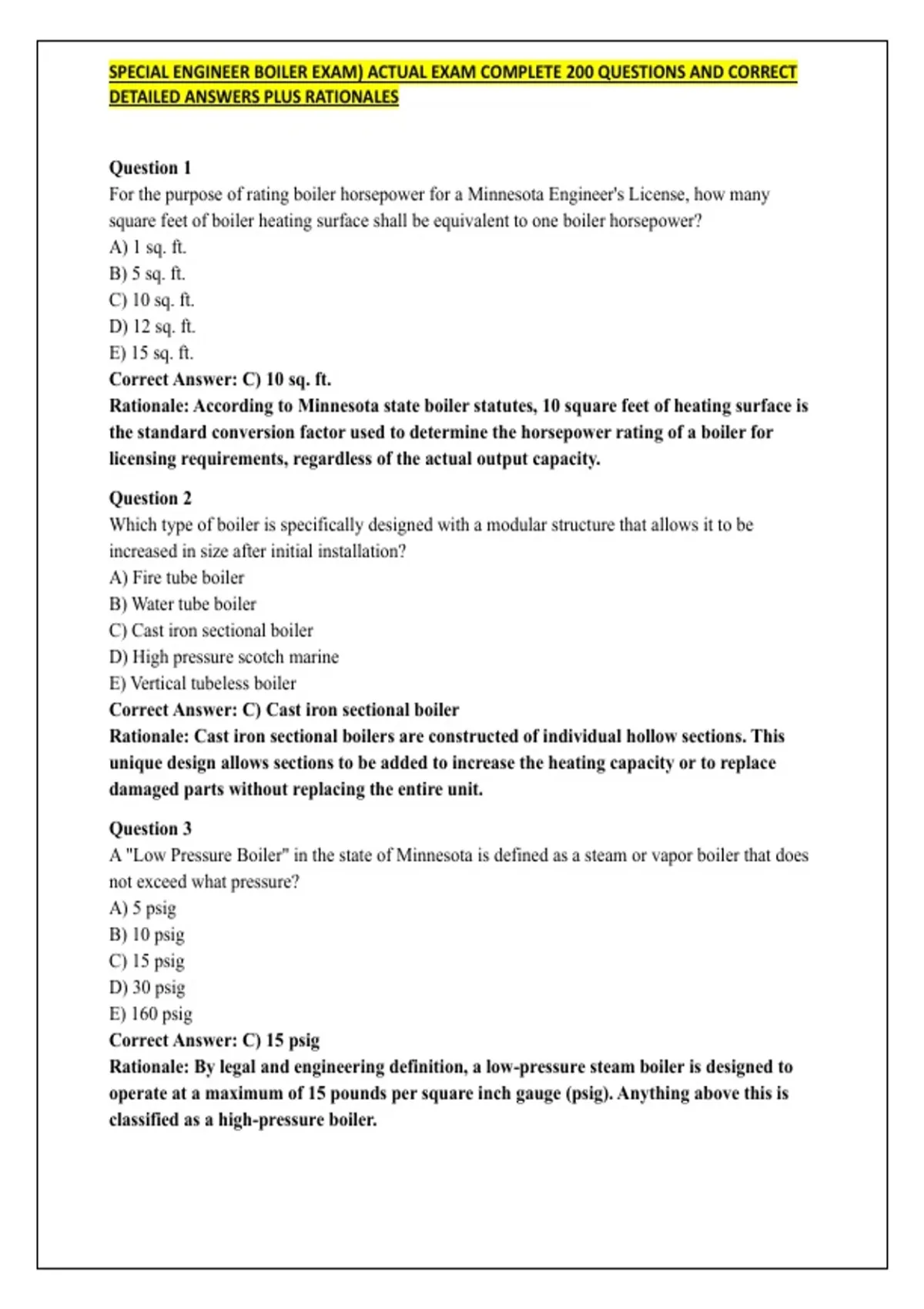

SPECIAL ENGINEER BOILER EXAM) ACTUAL EXAM COMPLETE 200 QUESTIONS AND CORRECT
DETAILED ANSWERS PLUS RATIONALES
Question 1
For the purpose of rating boiler horsepower for a Minnesota Engineer's License, how many
square feet of boiler heating surface shall be equivalent to one boiler horsepower?
A) 1 sq. ft.
B) 5 sq. ft.
C) 10 sq. ft.
D) 12 sq. ft.
E) 15 sq. ft.
Correct Answer: C) 10 sq. ft.
Rationale: According to Minnesota state boiler statutes, 10 square feet of heating surface is
the standard conversion factor used to determine the horsepower rating of a boiler for
licensing requirements, regardless of the actual output capacity.
Question 2
Which type of boiler is specifically designed with a modular structure that allows it to be
increased in size after initial installation?
A) Fire tube boiler
B) Water tube boiler
C) Cast iron sectional boiler
D) High pressure scotch marine
E) Vertical tubeless boiler
Correct Answer: C) Cast iron sectional boiler
Rationale: Cast iron sectional boilers are constructed of individual hollow sections. This
unique design allows sections to be added to increase the heating capacity or to replace
damaged parts without replacing the entire unit.
Question 3
A "Low Pressure Boiler" in the state of Minnesota is defined as a steam or vapor boiler that does
not exceed what pressure?
A) 5 psig
B) 10 psig
C) 15 psig
D) 30 psig
E) 160 psig
Correct Answer: C) 15 psig
Rationale: By legal and engineering definition, a low-pressure steam boiler is designed to
operate at a maximum of 15 pounds per square inch gauge (psig). Anything above this is
classified as a high-pressure boiler.
, 2
Question 4
A hot water or liquid boiler is considered "Low Pressure" if its parameters do not exceed:
A) 15 psig or 160°F
B) 100 psig or 212°F
C) 120 psig or 240°F
D) 160 psig or 250°F
E) 200 psig or 300°F
Correct Answer: D) 160 psig or 250°F
Rationale: For hot water heating systems, the "low pressure" threshold is a pressure of 160
psig and a temperature of 250 degrees Fahrenheit. Exceeding either of these values
reclassifies the system as high pressure.
Question 5
What is the primary physical variable sensed and controlled by an Aquastat?
A) Water level
B) Steam pressure
C) Water temperature
D) Fuel flow rate
E) Air-to-fuel ratio
Correct Answer: C) Water temperature
Rationale: An aquastat is a control device used primarily in hot water boilers to monitor
the temperature of the water. It acts as a switch to start or stop the burner based on
temperature settings.
Question 6
What condition must be met before performing a test on a Low Water Fuel Cut-Off (LWCO)?
A) The boiler must be cold.
B) The main steam valve must be closed.
C) The burner must be currently on and firing.
D) The expansion tank must be drained.
E) The feed pump must be turned off.
Correct Answer: C) The burner must be currently on and firing.
Rationale: The purpose of the LWCO is to shut off the fuel source in the event of low water.
To verify the device is functional, the burner must be operating so the technician can see if
the LWCO successfully kills the flame when the water level drops.
Question 7
How many distinct methods of heat transfer are recognized in the operation of a boiler?
A) One
B) Two
C) Three
, 3
D) Four
E) Five
Correct Answer: C) Three
Rationale: Heat is transferred from the fire to the water via three methods: Conduction
(through the metal tubes), Convection (currents in the water/gas), and Radiation (infrared
waves from the flame).
Question 8
Which of the following describes the three types of "Draft" used in boiler combustion?
A) Natural, Forced, Induced
B) High, Medium, Low
C) Internal, External, Cross
D) Cold, Warm, Hot
E) Static, Dynamic, Residual
Correct Answer: A) Natural, Forced, Induced
Rationale: Draft is the pressure difference that moves air and gases through the boiler.
Natural draft uses a chimney; Forced draft uses a fan to push air in; Induced draft uses a
fan to pull gases out through the stack.
Question 9
When an operator needs to "throttle" or restrict the flow of a fluid in a boiler system, which valve
type is best suited for this task?
A) Gate valve
B) Check valve
C) Globe valve
D) Relief valve
E) Butterfly valve
Correct Answer: C) Globe valve
Rationale: Globe valves are designed for throttling flow because the fluid changes direction
as it passes through, allowing for precise regulation. Gate valves should only be used fully
open or fully closed.
Question 10
A "Tri-indicator" or Triple Gauge is an instrument exclusively found on which type of boiler?
A) High pressure steam boiler
B) Low pressure steam boiler
C) Hot water boiler
D) Electric steam generator
E) Waste heat recovery boiler
Correct Answer: C) Hot water boiler
