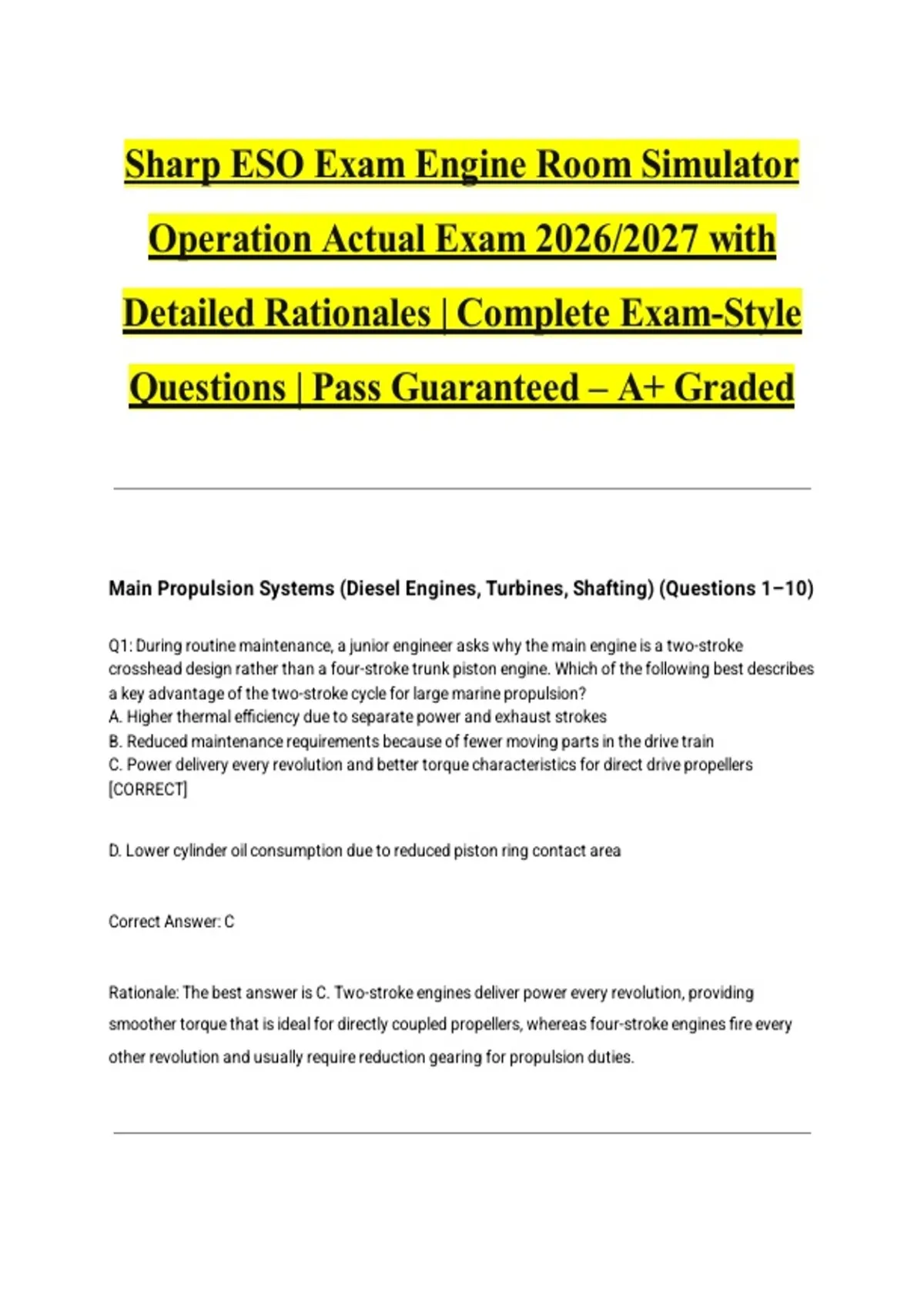

Sharp ESO Exam Engine Room Simulator
Operation Actual Exam 2026/2027 with
Detailed Rationales | Complete Exam-Style
Questions | Pass Guaranteed – A+ Graded
Main Propulsion Systems (Diesel Engines, Turbines, Shafting) (Questions 1–10)
Q1: During routine maintenance, a junior engineer asks why the main engine is a two-stroke
crosshead design rather than a four-stroke trunk piston engine. Which of the following best describes
a key advantage of the two-stroke cycle for large marine propulsion?
A. Higher thermal efficiency due to separate power and exhaust strokes
B. Reduced maintenance requirements because of fewer moving parts in the drive train
C. Power delivery every revolution and better torque characteristics for direct drive propellers
[CORRECT]
D. Lower cylinder oil consumption due to reduced piston ring contact area
Correct Answer: C
Rationale: The best answer is C. Two-stroke engines deliver power every revolution, providing
smoother torque that is ideal for directly coupled propellers, whereas four-stroke engines fire every
other revolution and usually require reduction gearing for propulsion duties.
,Q2: You are inspecting the main engine during maintenance and observe that exhaust ports are
located around the lower part of the cylinder liner while the air inlet is at the top via a central poppet
valve. What type of scavenging is this?
A. Cross scavenging with opposed pistons
B. Loop scavenging with intake and exhaust ports on opposite sides
C. Uniflow scavenging with intake ports and exhaust valves at the cylinder head [CORRECT]
D. Reverse flow scavenging with auxiliary blower only
Correct Answer: C
Rationale: The best answer is C. Uniflow scavenging uses intake ports at the bottom of the liner and
exhaust valves at the cylinder head, giving the most efficient gas exchange with minimal mixing of
fresh air and exhaust.
Q3: While reviewing the engine performance log, you notice the main engine turbocharger is fitted
with a constant pressure system. During maneuvering, the engineer mentions that pulse
turbocharging was considered during design. What is the primary advantage of constant pressure
turbocharging over pulse systems for large two-stroke engines?
A. Better utilization of exhaust pulse energy during low load operation
B. Simpler exhaust piping and more stable turbine operation at high loads [CORRECT]
C. Reduced overall weight and smaller turbocharger physical dimensions
D. Elimination of the need for auxiliary blowers at all engine speeds
Correct Answer: B
Rationale: The best answer is B. Constant pressure systems use a common receiver that smoothes
out exhaust pulses, giving stable turbine operation and simpler exhaust ducting, which suits large
two-stroke engines running at constant high loads.
Q4: During a simulator exercise, the main engine fails to reach rated speed despite proper governor
settings. The instructor points out this engine uses a common rail fuel injection system. Compared to
,traditional jerk pump systems, what operational advantage does common rail offer that is most
relevant to this situation?
A. Independent control of injection timing, pressure, and duration regardless of engine speed
[CORRECT]
B. Reduced fuel filtration requirements due to lower injection pressures
C. Elimination of high-pressure fuel pipes and associated leakage risks
D. Simpler mechanical maintenance with no electronic control modules required
Correct Answer: A
Rationale: The best answer is A. Common rail allows precise electronic control of injection pressure
and timing independent of engine speed, ensuring proper atomization and combustion even at low or
variable speeds where jerk pumps struggle.
Q5: You are monitoring the central cooling system during a sea passage. The high-temperature fresh
water circuit shows a temperature of 78°C while the low-temperature circuit reads 36°C. What is the
primary purpose of maintaining these separate cooling circuits?
A. To allow the main engine jacket water to be cooled directly by sea water for maximum efficiency
B. To prevent thermal shock to engine components and provide stable temperatures for auxiliary
equipment [CORRECT]
C. To increase the overall heat rejection capacity by using two separate heat exchangers
D. To eliminate the need for cooling water treatment chemicals in the low-temperature circuit
Correct Answer: B
Rationale: The best answer is B. Separating high and low temperature circuits protects the main
engine from thermal shock while giving stable cooling water temperatures to auxiliary machinery like
air compressors and purifiers.
, Q6: During your rounds, you notice two separate lubricating oil tanks supplying the main engine. One
is labeled "Cylinder Oil" and the other "System Oil." What is the primary difference between these two
lubricants?
A. Cylinder oil is circulated through the crankcase bearings while system oil lubricates the cylinder
liners
B. Cylinder oil contains high alkalinity (BN) additives to neutralize sulfuric acid from combustion,
while system oil is for crankcase lubrication [CORRECT]
C. System oil is specifically designed for high-pressure fuel injection pump lubrication only
D. There is no chemical difference; they are separated only for filtration purposes
Correct Answer: B
Rationale: The best answer is B. Cylinder oil is formulated with high base number (BN) to neutralize
acids formed during combustion, while system oil is a circulating lubricant designed for crankcase
bearings and gear trains.
Q7: During a simulator-based engine start sequence, you attempt to engage the starting air system
but hear no response. The panel shows "Turning Gear Engaged." What is the relationship between the
turning gear and starting air interlock?
A. The turning gear must be engaged during starting to prevent the engine from over-speeding
B. The starting air system will not operate if the turning gear is engaged, as a safety interlock
[CORRECT]
C. The turning gear engagement automatically triggers the starting air supply to rotate the engine
slowly
D. There is no interlock; the starting air failure is caused by low receiver pressure only
Correct Answer: B
Rationale: The best answer is B. A critical safety interlock prevents starting air from being admitted
while the turning gear is engaged, protecting the gear teeth and engine from catastrophic damage.
