CWB Level 1 Weld Symbols Exam Questions and Answers

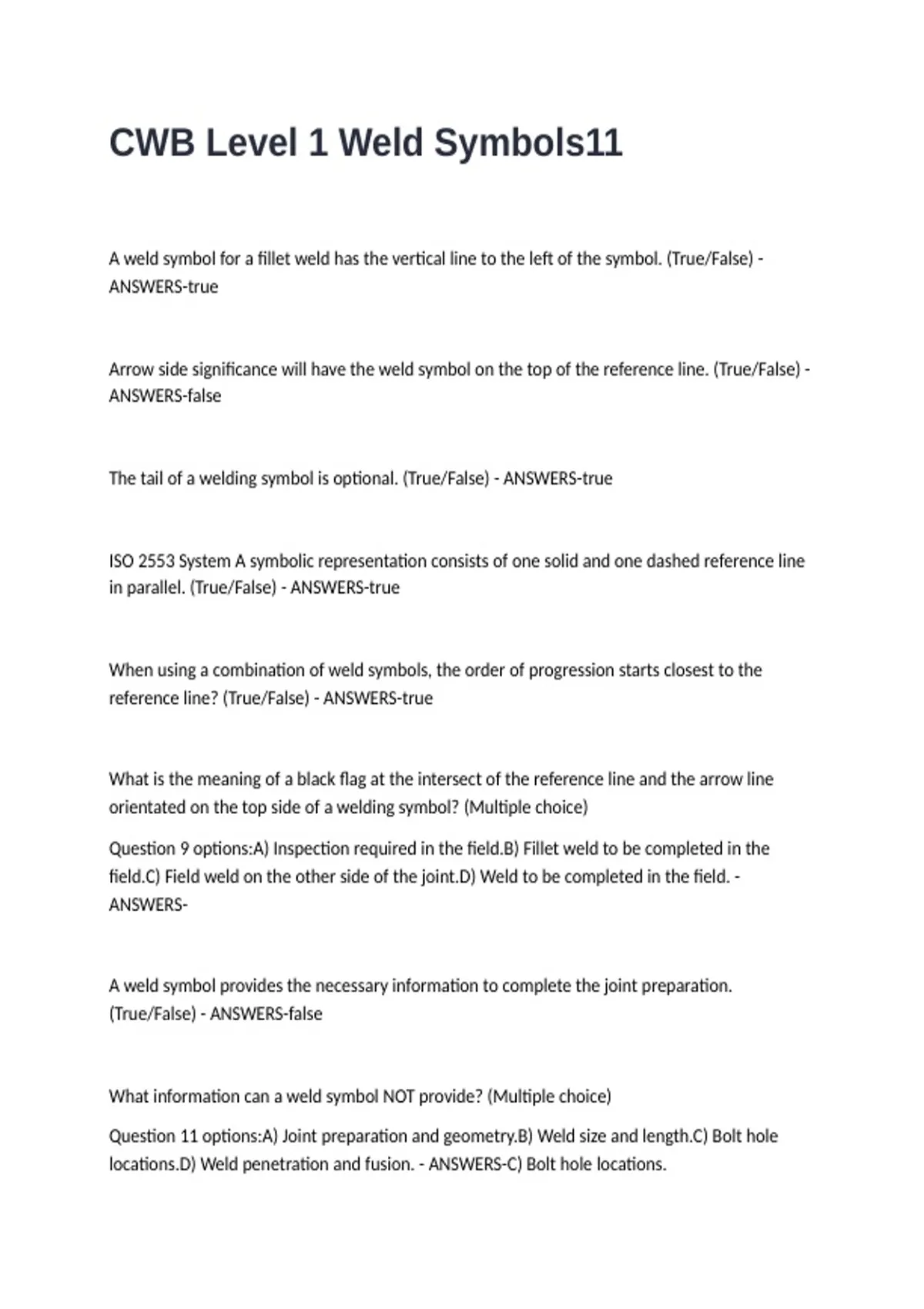

CWB Level 1 Weld Symbols11

A weld symbol for a fillet weld has the vertical line to the left of the symbol. (True/False) -
ANSWERS-true



Arrow side significance will have the weld symbol on the top of the reference line. (True/False) -
ANSWERS-false



The tail of a welding symbol is optional. (True/False) - ANSWERS-true



ISO 2553 System A symbolic representation consists of one solid and one dashed reference line
in parallel. (True/False) - ANSWERS-true



When using a combination of weld symbols, the order of progression starts closest to the
reference line? (True/False) - ANSWERS-true



What is the meaning of a black flag at the intersect of the reference line and the arrow line
orientated on the top side of a welding symbol? (Multiple choice)

Question 9 options:A) Inspection required in the field.B) Fillet weld to be completed in the
field.C) Field weld on the other side of the joint.D) Weld to be completed in the field. -
ANSWERS-



A weld symbol provides the necessary information to complete the joint preparation.
(True/False) - ANSWERS-false



What information can a weld symbol NOT provide? (Multiple choice)

Question 11 options:A) Joint preparation and geometry.B) Weld size and length.C) Bolt hole
locations.D) Weld penetration and fusion. - ANSWERS-C) Bolt hole locations.

, What type of symbol is used to express that a weld is to be completed in the field? (Multiple
choice)

Question 13 options:A) A secondary welding symbol.B) A welding symbol.C) A basic welding
symbol.D) A supplementary symbol. - ANSWERS-D) A supplementary symbol.



Where would the length of a test section be indicated? (Multiple choice)

Question 14 options:A) To the left of the symbol.B) To the right of the symbol.C) Above the
symbol.D) In the tail of the symbol. - ANSWERS-B) To the right of the symbol.



How is a request of test all around in the field indicated on a reference line? (Multiple choice)

Question 15 options:A) With a statement indicating test all around in the field is located in the
tail of a reference line.B) With a field weld symbol connected to the reference and arrow line
intersect with test all around indicated in the tail.C) With a test all around symbol centred wher
the reference and arrow line intersect with the test in field flag attached to the all around
symbol.D) With a test all around symbol centred where the reference and arrow line intersect
with the test in field flag attached to reference and arrow intersect. - ANSWERS-C) With a test all
around symbol centred wher the reference and arrow line intersect with the test in field flag
attached to the all around symbol.



Where is a percentage of NDE requested? (Multiple choice)

Question 16 options:A) To the left of a NDE symbol.B) To the left of an NDE designation.C) To the
right of an NDE designation.D) Above the NDE designation. - ANSWERS-C) To the right of an NDE
designation.



Multiple types of NDE can be identified on one symbol on any side or in the centre of a
reference line symbol. (True/False) - ANSWERS-True



Which measurement is found on the reference line for a surfacing weld? (Multiple choice)

Question 18 options:A) The length.B) The width.C) The height.D) The area of surface covered. -
ANSWERS-C) The height.
