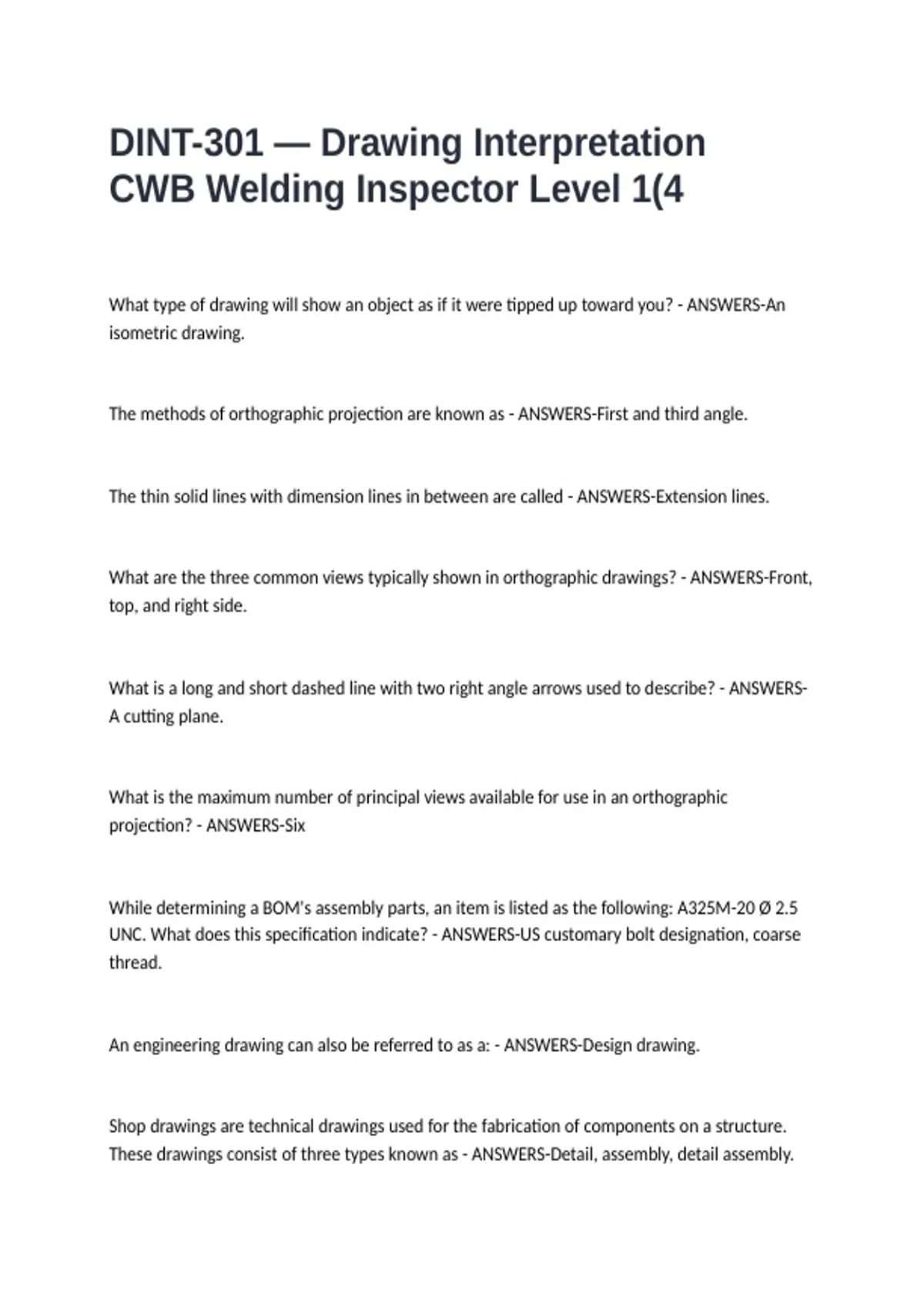

DINT-301 — Drawing Interpretation
CWB Welding Inspector Level 1(4
What type of drawing will show an object as if it were tipped up toward you? - ANSWERS-An
isometric drawing.
The methods of orthographic projection are known as - ANSWERS-First and third angle.
The thin solid lines with dimension lines in between are called - ANSWERS-Extension lines.
What are the three common views typically shown in orthographic drawings? - ANSWERS-Front,
top, and right side.
What is a long and short dashed line with two right angle arrows used to describe? - ANSWERS-
A cutting plane.
What is the maximum number of principal views available for use in an orthographic
projection? - ANSWERS-Six
While determining a BOM's assembly parts, an item is listed as the following: A325M-20 Ø 2.5
UNC. What does this specification indicate? - ANSWERS-US customary bolt designation, coarse
thread.
An engineering drawing can also be referred to as a: - ANSWERS-Design drawing.
Shop drawings are technical drawings used for the fabrication of components on a structure.
These drawings consist of three types known as - ANSWERS-Detail, assembly, detail assembly.
