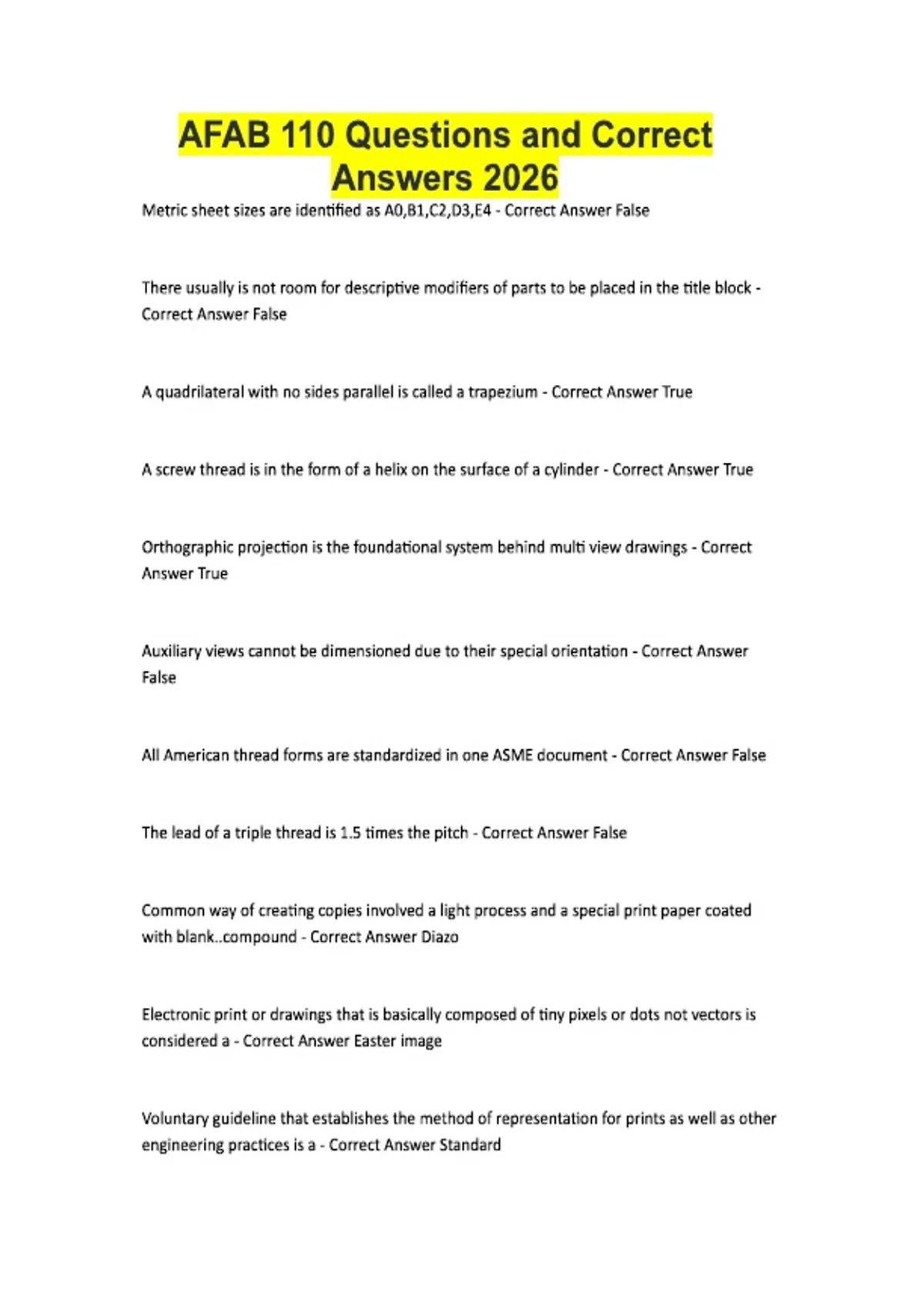

AFAB 110 Questions and Correct Answers 2026 Metric sheet sizes are identified as A0,B1,C2,D3,E4 - Correct Answer False There usually is not room for descriptive modifiers of parts to be placed in the title block - Correct Answer False A quadrilateral with no sides parallel is called a trapezium - Correct Answer True A screw thread is in the form of a helix on the surface of a cylinder - Correct Answer True Orthographic projection is the foundational system behind multi view drawings - Correct Answer True Auxiliary views cannot be dimensioned due to their special orientation - Correct Answer False All American thread forms are standardized in one ASME document - Correct Answer False The lead of a triple thread is 1.5 times the pitch - Correct Answer False Common way of creating copies involved a light process and a special print paper coated with blank..compound - Correct Answer Diazo Electronic print or drawings that is basically composed of tiny pixels or dots not vectors is considered a - Correct Answer Easter image Voluntary guideline that establishes the method of representation for prints as well as other engineering practices is a - Correct Answer Standard
