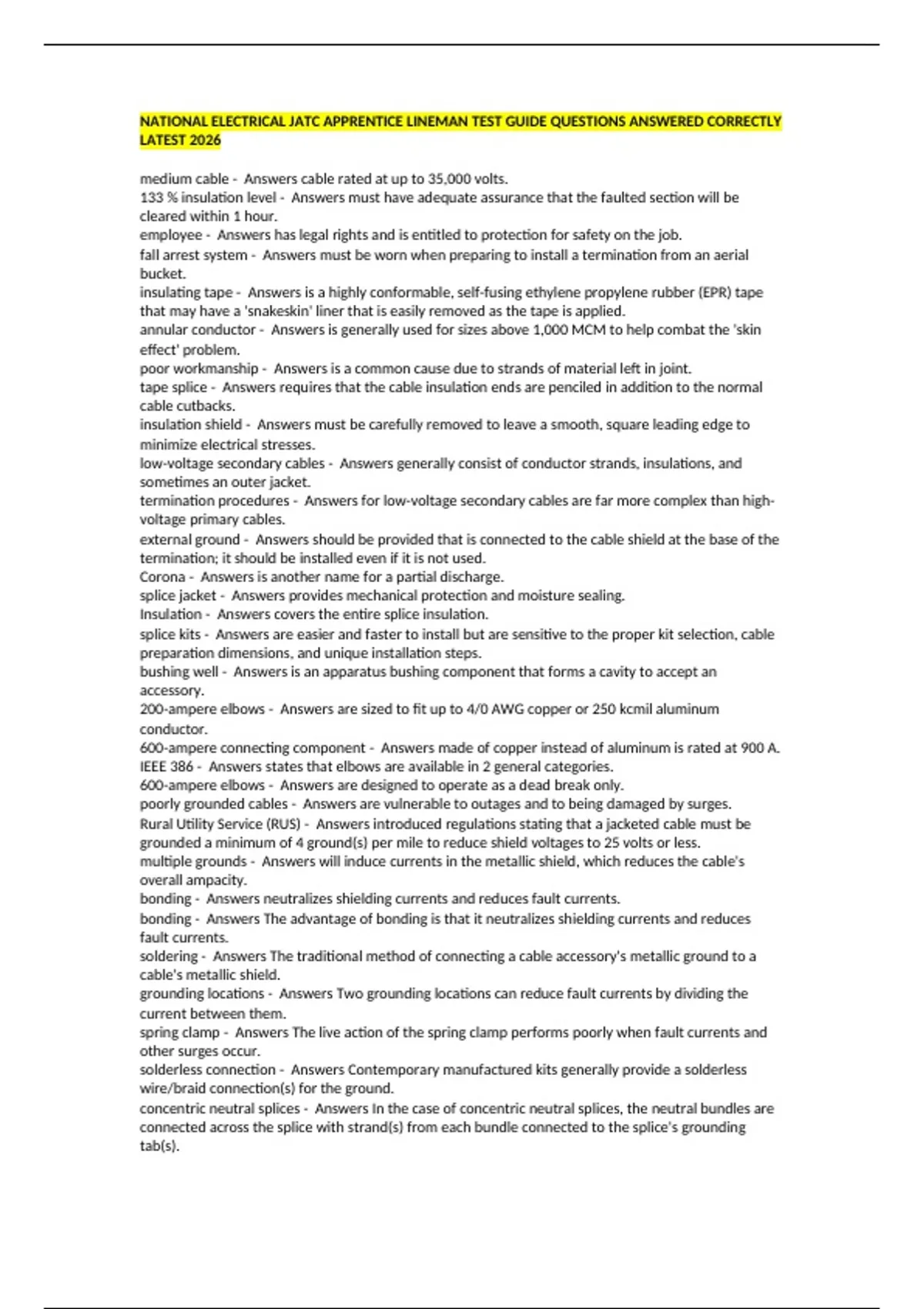

NATIONAL ELECTRICAL JATC APPRENTICE LINEMAN TEST GUIDE QUESTIONS ANSWERED CORRECTLY
LATEST 2026
medium cable - Answers cable rated at up to 35,000 volts.
133 % insulation level - Answers must have adequate assurance that the faulted section will be
cleared within 1 hour.
employee - Answers has legal rights and is entitled to protection for safety on the job.
fall arrest system - Answers must be worn when preparing to install a termination from an aerial
bucket.
insulating tape - Answers is a highly conformable, self-fusing ethylene propylene rubber (EPR) tape
that may have a 'snakeskin' liner that is easily removed as the tape is applied.
annular conductor - Answers is generally used for sizes above 1,000 MCM to help combat the 'skin
effect' problem.
poor workmanship - Answers is a common cause due to strands of material left in joint.
tape splice - Answers requires that the cable insulation ends are penciled in addition to the normal
cable cutbacks.
insulation shield - Answers must be carefully removed to leave a smooth, square leading edge to
minimize electrical stresses.
low-voltage secondary cables - Answers generally consist of conductor strands, insulations, and
sometimes an outer jacket.
termination procedures - Answers for low-voltage secondary cables are far more complex than high-
voltage primary cables.
external ground - Answers should be provided that is connected to the cable shield at the base of the
termination; it should be installed even if it is not used.
Corona - Answers is another name for a partial discharge.
splice jacket - Answers provides mechanical protection and moisture sealing.
Insulation - Answers covers the entire splice insulation.
splice kits - Answers are easier and faster to install but are sensitive to the proper kit selection, cable
preparation dimensions, and unique installation steps.
bushing well - Answers is an apparatus bushing component that forms a cavity to accept an
accessory.
200-ampere elbows - Answers are sized to fit up to 4/0 AWG copper or 250 kcmil aluminum
conductor.
600-ampere connecting component - Answers made of copper instead of aluminum is rated at 900 A.
IEEE 386 - Answers states that elbows are available in 2 general categories.
600-ampere elbows - Answers are designed to operate as a dead break only.
poorly grounded cables - Answers are vulnerable to outages and to being damaged by surges.
Rural Utility Service (RUS) - Answers introduced regulations stating that a jacketed cable must be
grounded a minimum of 4 ground(s) per mile to reduce shield voltages to 25 volts or less.
multiple grounds - Answers will induce currents in the metallic shield, which reduces the cable's
overall ampacity.
bonding - Answers neutralizes shielding currents and reduces fault currents.
bonding - Answers The advantage of bonding is that it neutralizes shielding currents and reduces
fault currents.
soldering - Answers The traditional method of connecting a cable accessory's metallic ground to a
cable's metallic shield.
grounding locations - Answers Two grounding locations can reduce fault currents by dividing the
current between them.
spring clamp - Answers The live action of the spring clamp performs poorly when fault currents and
other surges occur.
solderless connection - Answers Contemporary manufactured kits generally provide a solderless
wire/braid connection(s) for the ground.
concentric neutral splices - Answers In the case of concentric neutral splices, the neutral bundles are
connected across the splice with strand(s) from each bundle connected to the splice's grounding
tab(s).
