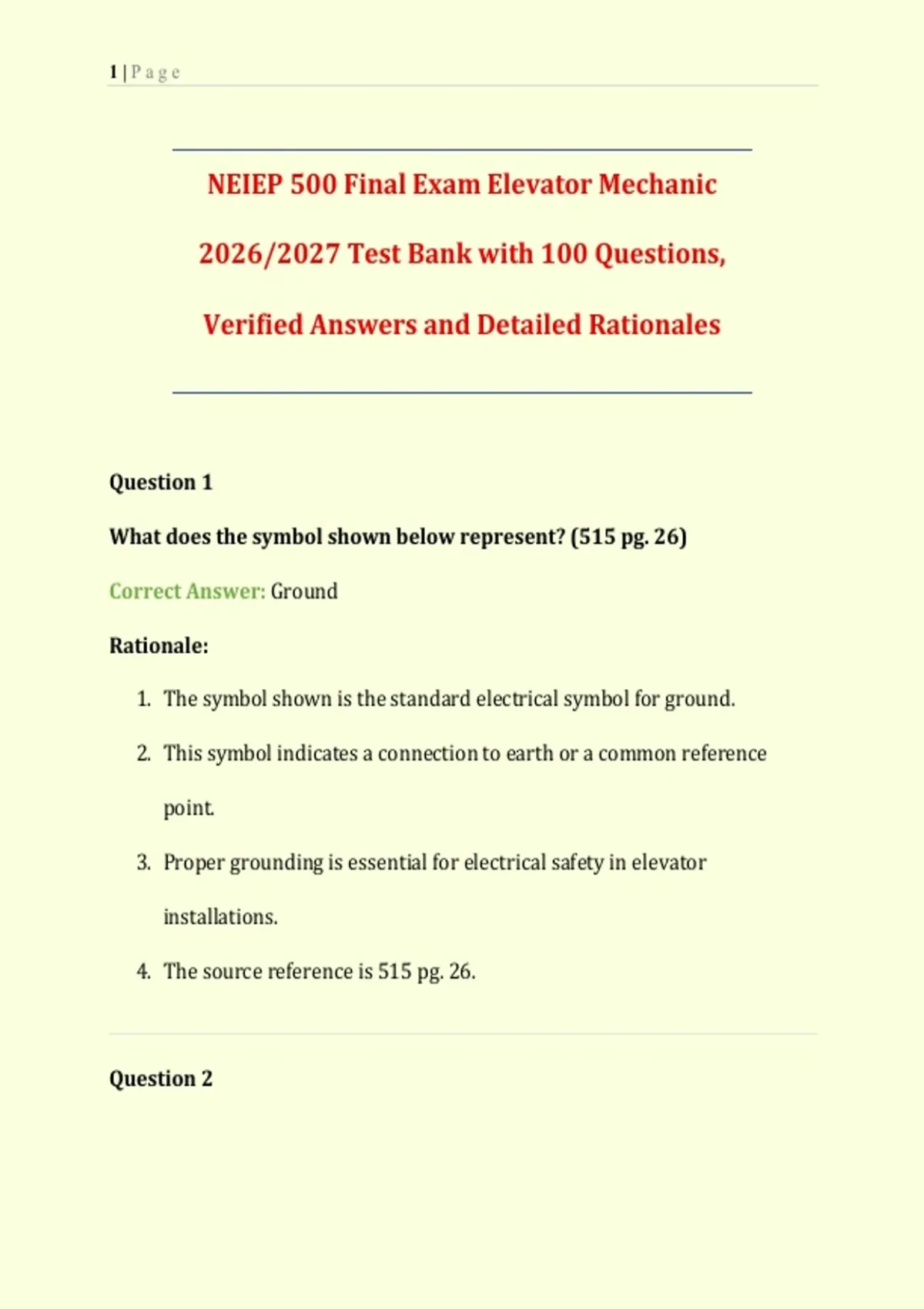

1|Page
NEIEP 500 Final Exam Elevator Mechanic
2026/2027 Test Bank with 100 Questions,
Verified Answers and Detailed Rationales
Question 1
What does the symbol shown below represent? (515 pg. 26)
Correct Answer: Ground
Rationale:
1. The symbol shown is the standard electrical symbol for ground.
2. This symbol indicates a connection to earth or a common reference
point.
3. Proper grounding is essential for electrical safety in elevator
installations.
4. The source reference is 515 pg. 26.
Question 2
,2|Page
How many turns of safety rope must remain on the safety drum after a
rated load and rated speed test of a winding drum operated safety? (555
pg. 26)
Correct Answer: 3
Rationale:
1. A minimum of three turns of safety rope must remain on the drum.
2. This ensures proper engagement of the safety mechanism.
3. The requirement prevents the rope from completely unwinding.
4. The source reference is 555 pg. 26.
Question 3
Proper adjustment of which of the following can reduce the effects of
building compression on an elevator installation? (555 pg. 16)
Correct Answer: rail jack bolts
Rationale:
1. Rail jack bolts help maintain proper rail alignment.
2. Building compression can cause rail misalignment.
3. Proper adjustment compensates for building settlement and
compression.
4. The source reference is 555 pg. 16.
, 3|Page
Question 4
What type of flex would be used to pipe a switch in a wet location? (505
pg. 6)
Correct Answer: Liquidtight Flexible Metal Conduit
Rationale:
1. Liquidtight Flexible Metal Conduit (LFMC) is rated for wet locations.
2. It provides protection against moisture ingress.
3. Standard flexible metal conduit is not suitable for wet locations.
4. The source reference is 505 pg. 6.
Question 5
Which of the following components is used to engage and couple the car
door to the hoistway door during opening and closing? (530 pg. 30)
Correct Answer: door clutch
Rationale:
1. The door clutch engages the car door with the hoistway door.
2. This coupling allows the car door to open and close the hoistway door.
3. The clutch disengages when the car is away from the landing.
4. The source reference is 530 pg. 30.
