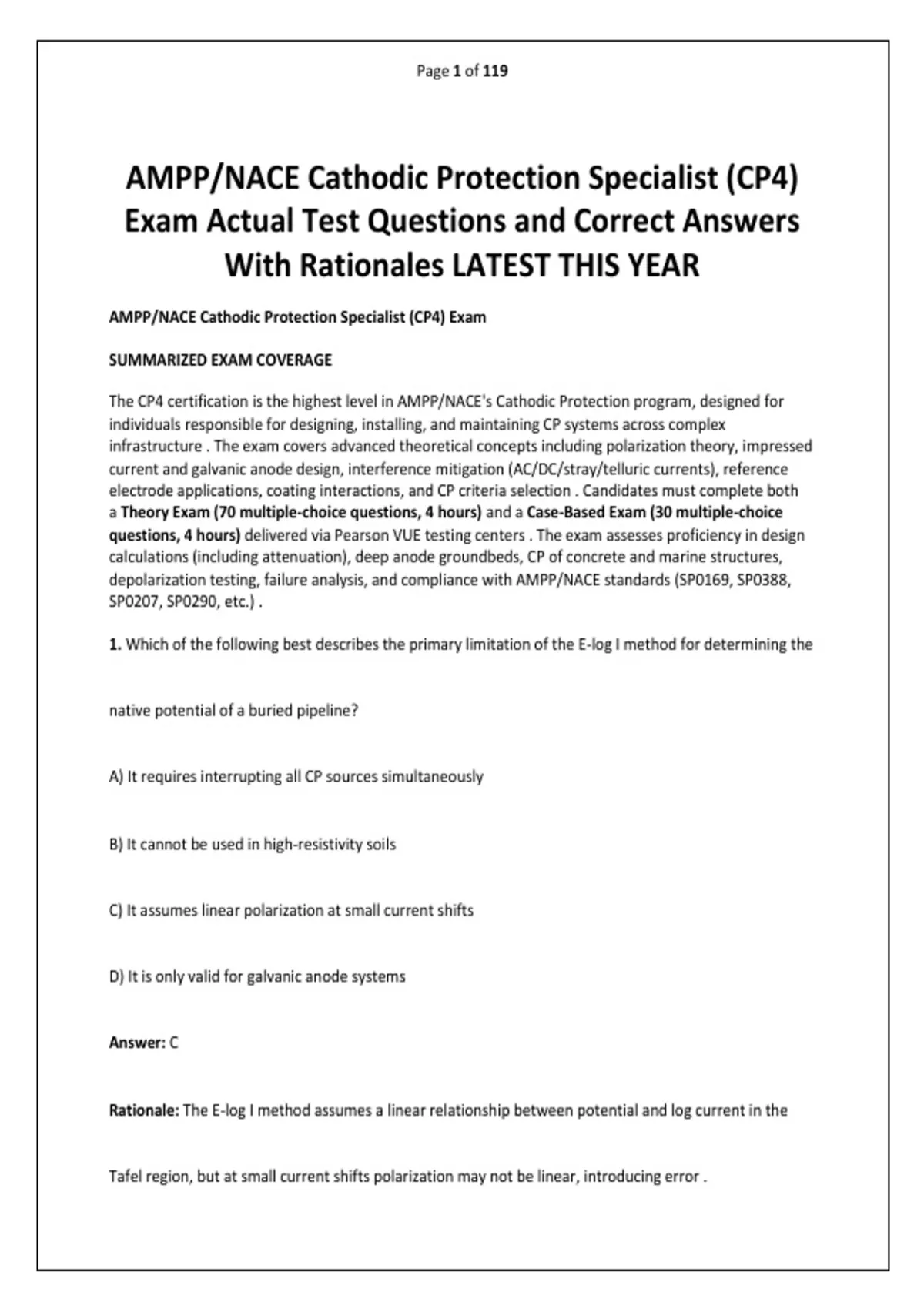

Page 1 of 119
AMPP/NACE Cathodic Protection Specialist (CP4)
Exam Actual Test Questions and Correct Answers
With Rationales LATEST THIS YEAR
AMPP/NACE Cathodic Protection Specialist (CP4) Exam
SUMMARIZED EXAM COVERAGE
The CP4 certification is the highest level in AMPP/NACE's Cathodic Protection program, designed for
individuals responsible for designing, installing, and maintaining CP systems across complex
infrastructure . The exam covers advanced theoretical concepts including polarization theory, impressed
current and galvanic anode design, interference mitigation (AC/DC/stray/telluric currents), reference
electrode applications, coating interactions, and CP criteria selection . Candidates must complete both
a Theory Exam (70 multiple-choice questions, 4 hours) and a Case-Based Exam (30 multiple-choice
questions, 4 hours) delivered via Pearson VUE testing centers . The exam assesses proficiency in design
calculations (including attenuation), deep anode groundbeds, CP of concrete and marine structures,
depolarization testing, failure analysis, and compliance with AMPP/NACE standards (SP0169, SP0388,
SP0207, SP0290, etc.) .
1. Which of the following best describes the primary limitation of the E-log I method for determining the
native potential of a buried pipeline?
A) It requires interrupting all CP sources simultaneously
B) It cannot be used in high-resistivity soils
C) It assumes linear polarization at small current shifts
D) It is only valid for galvanic anode systems
Answer: C
Rationale: The E-log I method assumes a linear relationship between potential and log current in the
Tafel region, but at small current shifts polarization may not be linear, introducing error .
, Page 2 of 119
2. A steel structure in seawater has a protection potential of -800 mV vs. Ag/AgCl (seawater). Which of
the following would indicate underprotection if measured with the reference electrode placed
immediately adjacent to the structure?
A) -850 mV
B) -800 mV
C) -780 mV
D) -900 mV
Answer: C
Rationale: A potential of -780 mV is less negative than the commonly accepted protection criterion of -
800 mV for steel in seawater, indicating insufficient cathodic protection .
3. When designing a deep anode groundbed for a high-voltage transmission line corridor, what is the
most critical factor to mitigate AC interference?
A) Increasing anode spacing
B) Using high-silicon cast iron anodes
C) Placing the groundbed perpendicular to the power line
D) Installing decoupling devices and gradient control mats
, Page 3 of 119
Answer: D
Rationale: Decoupling devices (such as polarization cells or solid-state decouplers) and gradient control
mats are essential to safely drain induced AC while maintaining CP continuity .
4. A pipeline has an instant-off potential of -0.950 V vs. Cu/CuSO₄ and a native potential of -0.600 V.
What is the polarization?
A) 0.350 V
B) 0.950 V
C) 0.600 V
D) 1.550 V
Answer: A
Rationale: Polarization is the difference between the polarized (instant-off) potential and the native
potential: -0.950 - (-0.600) = 0.350 V .
5. In a cathodic protection system using mixed metal oxide (MMO) anodes in fresh water, what is the
primary failure mechanism if the current density exceeds 600 A/m²?
A) Chlorine gas blinding
, Page 4 of 119
B) Coating delamination
C) Substrate passivation
D) Oxygen evolution causing pH shift
Answer: B
Rationale: High current densities can cause overheating and delamination of the MMO coating from the
titanium substrate, leading to rapid anode failure .
6. Which of the following is the most accurate method for determining the presence of stray current
interference on a buried pipeline?
A) Close-interval potential survey with CP off
B) Long-term recording of pipe-to-soil potentials with data loggers
C) Soil resistivity survey along the pipeline route
D) DCVG survey only
Answer: B
Rationale: Long-term potential recording captures temporal fluctuations characteristic of dynamic stray
currents from transit systems or mining operations .
