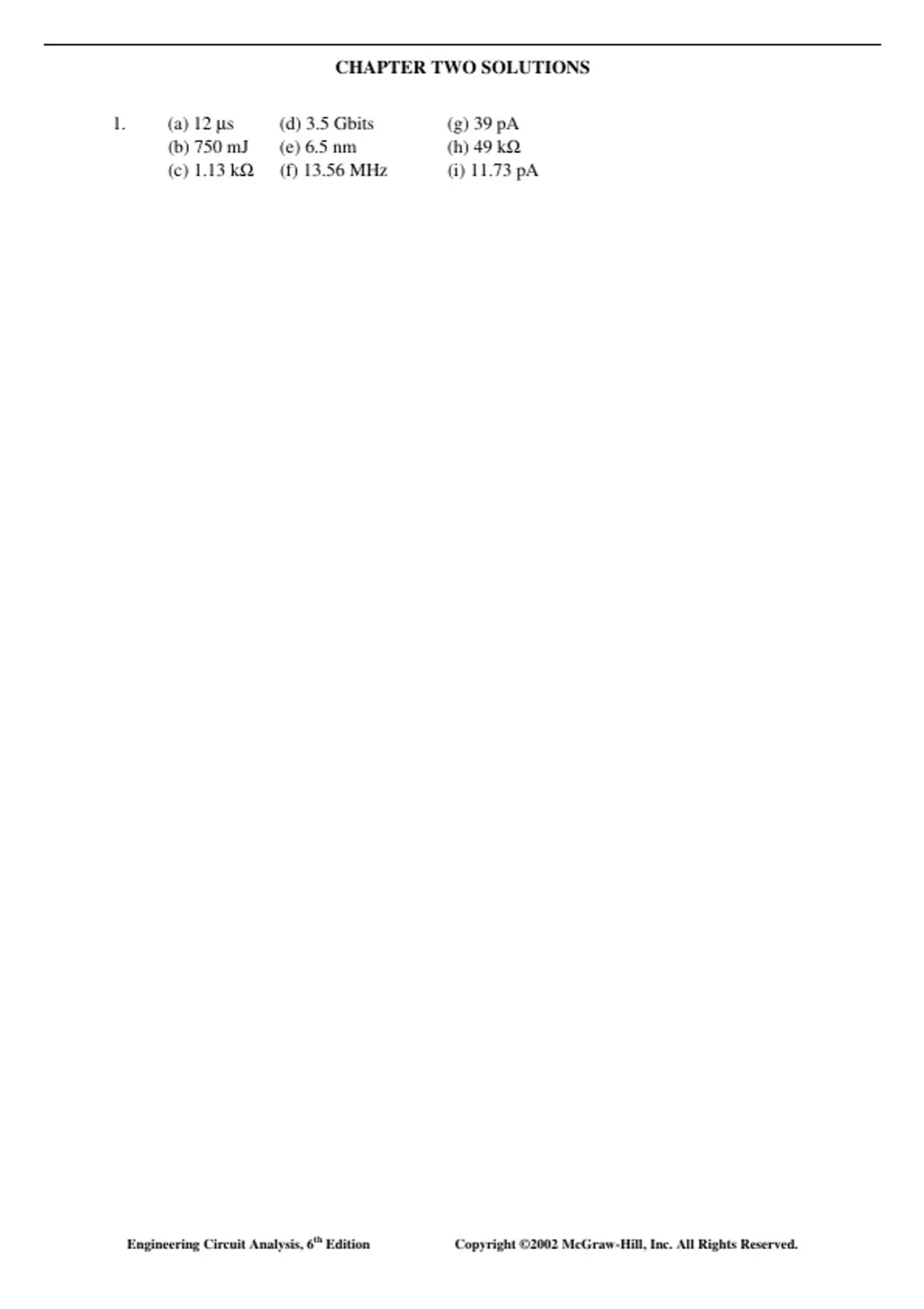

CHAPTER TWO SOLUTIONS
1. (a) 12 µs (d) 3.5 Gbits (g) 39 pA
(b) 750 mJ (e) 6.5 nm (h) 49 kΩ
(c) 1.13 kΩ (f) 13.56 MHz (i) 11.73 pA
Engineering Circuit Analysis, 6th Edition Copyright ©2002 McGraw-Hill, Inc. All Rights Reserved.
Engineering circuit analysis 6ed hayt solutionsEngineering
manual circuit analysis 6ed hayt solutionsEngineering
manual.pdf circuit analysis 6ed hayt solutions manual.pdf
,Engineering circuit analysis 6ed hayt solutionsEngineering
manual.pdf circuit analysis 6ed hayt solutionsEngineering
manual.pdf circuit analysis 6ed hayt solutions manual.pdf
CHAPTER TWO SOLUTIONS
2. (a) 1 MW (e) 33 µJ (i) 32 mm
(b) 12.35 mm (f) 5.33 nW
(c) 47. kW (g) 1 ns
(d) 5.46 mA (h) 5.555 MW
Engineering Circuit Analysis, 6th Edition Copyright ©2002 McGraw-Hill, Inc. All Rights Reserved.
Engineering circuit analysis 6ed hayt solutionsEngineering
manual circuit analysis 6ed hayt solutionsEngineering
manual.pdf circuit analysis 6ed hayt solutions manual.pdf
,Engineering circuit analysis 6ed hayt solutionsEngineering
manual.pdf circuit analysis 6ed hayt solutionsEngineering
manual.pdf circuit analysis 6ed hayt solutions manual.pdf
CHAPTER TWO SOLUTIONS
3. Motor power = 175 Hp
(a) With 100% efficient mechanical to electrical power conversion,
(175 Hp)[1 W/ (1/745.7 Hp)] = 130.5 kW
(b) Running for 3 hours,
Energy = (130.5×103 W)(3 hr)(60 min/hr)(60 s/min) = 1.409 GJ
(c) A single battery has 430 kW-hr capacity. We require
(130.5 kW)(3 hr) = 391.5 kW-hr therefore one battery is sufficient.
