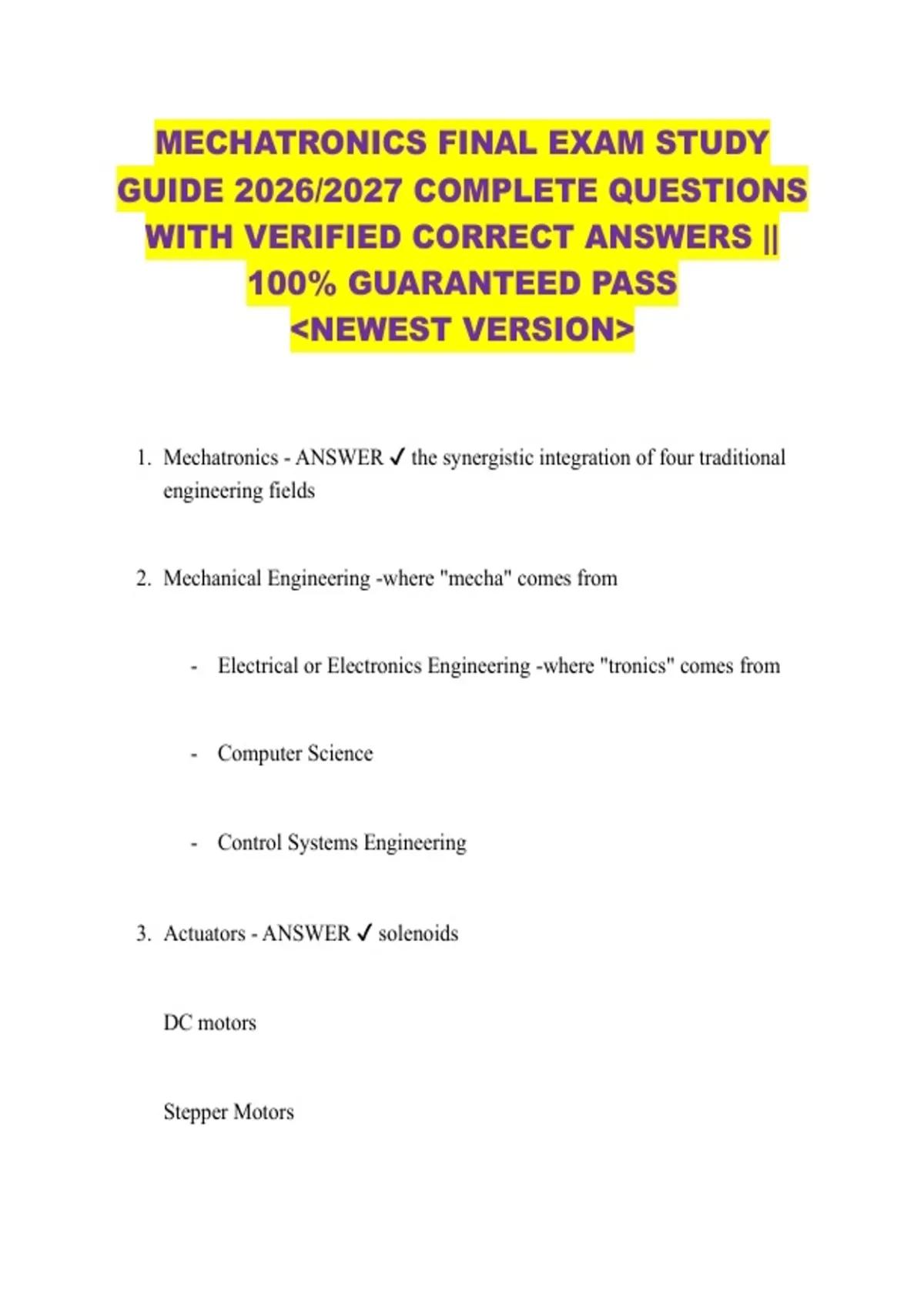

MECHATRONICS FINAL EXAM STUDY
GUIDE 2026/2027 COMPLETE QUESTIONS
WITH VERIFIED CORRECT ANSWERS ||
100% GUARANTEED PASS
<NEWEST VERSION>
1. Mechatronics - ANSWER ✔ the synergistic integration of four traditional
engineering fields
2. Mechanical Engineering -where "mecha" comes from
- Electrical or Electronics Engineering -where "tronics" comes from
- Computer Science
- Control Systems Engineering
3. Actuators - ANSWER ✔ solenoids
DC motors
Stepper Motors
, Servo motors
hydraulics
4. Sensors - ANSWER ✔ switches
potentiometer
strain guage
accelerometer
5. Input Signal Conditioning and Interfacing - ANSWER ✔ Discrete Circuits
filters
amplifiers
A/D, D/D
6. Digital Control Architectures - ANSWER ✔ logic circuits
microcontrollers
, control algorithms
communication
7. Output Signal Conditioning and Interfacing - ANSWER ✔ D/A, D/D
amplifiers
power transistors
power op amps
8. Graphical Displays - ANSWER ✔ LEDs
LCD
digital displays
9. Overview of mechatronic system - ANSWER ✔ Acuators, sensors, inputs
conditioning and interfacing, digital control architectures, output signal
conditioning and interfacing, back to actuators and graphical displays
10.Mechatronic products - ANSWER ✔ elevators, home appliances, RFid
turnstiles, CNC machines
, 11.Peltier - ANSWER ✔ a heat sink carrying an electrical charge that causes it
to act as an electrical thermal transfer device.
12.System Order - ANSWER ✔ Zero order: no energy storage devices - tell it
something it responds immediately
First order: one energy storage device - reacts to
changes in commands with an exponential
response
Second Order: two energy storage devices -
reaction depends upon natural frequency and
damping ratio
>Second Order: more than two energy
storage devices -no telling how it will respond
13.Voltage - ANSWER ✔ the force that causes electrons to flow in a circuit
14.Voltage Drop - ANSWER ✔ the amount of voltage used by a component
15.1 volt equals to... - ANSWER ✔ 1,000 mV
16.1,000 volts equals to... - ANSWER ✔ 1 kV
17.Current - ANSWER ✔ the movement of electrons
18.Types of Positive Displacement Pumps: - ANSWER ✔ 1. Gear pumps
2. Vane pumps
3. Radial piston pumps
