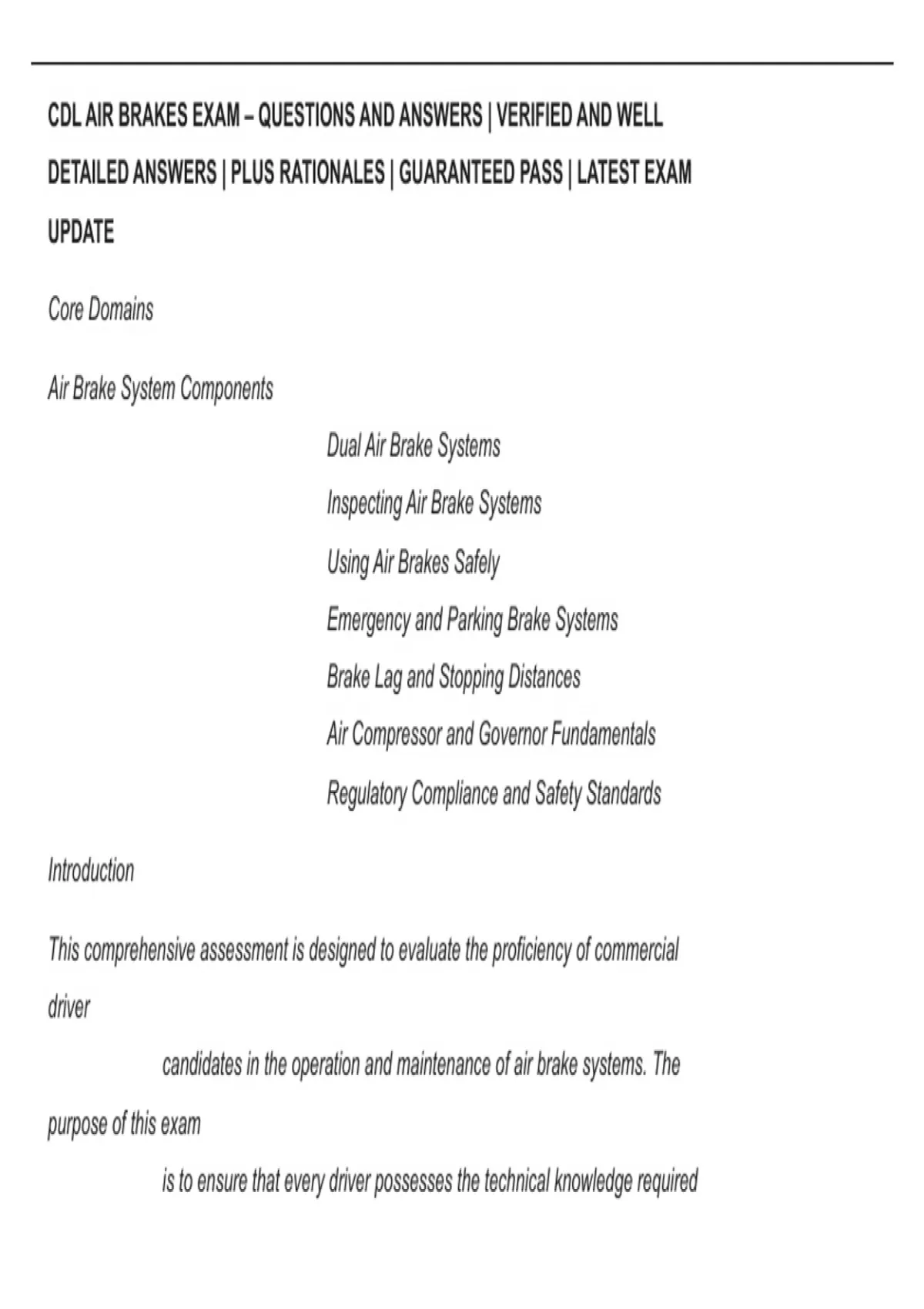

CDL AIR BRAKES EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL
DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM
UPDATE
Core Domains
Air Brake System Components
Dual Air Brake Systems
Inspecting Air Brake Systems
Using Air Brakes Safely
Emergency and Parking Brake Systems
Brake Lag and Stopping Distances
Air Compressor and Governor Fundamentals
Regulatory Compliance and Safety Standards
Introduction
This comprehensive assessment is designed to evaluate the proficiency of commercial
driver
candidates in the operation and maintenance of air brake systems. The
purpose of this exam
is to ensure that every driver possesses the technical knowledge required
,for safe vehicle
operation. The assessment covers mechanical components, inspection
protocols, and
emergency procedures through multiple-choice questions and scenario-
based problems.
Emphasis is placed on real-world application, critical decision-making
under pressure,
and strict adherence to regulatory safety standards. Successful
completion demonstrates
a driver's readiness to manage the complexities of heavy vehicle braking
systems effectively.
SECTION ONE: QUESTIONS 1–100
1. The air compressor governor controls when the air compressor pumps air into the air
storage tanks. At what pressure does the governor typically "cut-out"?
A. 60 psi
B. 100 psi
C. 125 psi
D. 150 psi
,🟢 C. 125 psi
🔴 Explanation: The governor controls the compressor's pumping cycle. While it varies
slightly by manufacturer, the standard cut-out pressure for most systems is around 125
psi.
2. Which component of the air brake system protects the system from excessive
pressure by opening if the governor fails to cut out the compressor?
A. The supply valve
B. The safety valve
C. The tractor protection valve
D. The drain valve
🟢 B. The safety valve
🔴 Explanation: A safety relief valve is installed in the first tank the air compressor pumps
into. It is usually set to open at 150 psi to prevent system damage.
3. Why is it important to drain water and oil from the air tanks?
A. Water can freeze and cause brake failure
B. Oil can cause the brakes to grip too tightly
, C. To increase the total air volume capacity
D. To prevent the governor from sticking
🟢 A. Water can freeze and cause brake failure
🔴 Explanation: Compressed air usually contains some water and compressor oil. In cold
weather, water can freeze and block air lines, leading to total brake failure.
4. In a vehicle equipped with S-cam brakes, what happens when you push the brake
pedal?
A. Air pressure pushes the rod out, turning the slack adjuster
B. Hydraulic fluid forces the brake pads against the drum
C. The brake shoes are pulled away from the drum by air suction
D. The air compressor stops pumping to allow friction to occur
🟢 A. Air pressure pushes the rod out, turning the slack adjuster
🔴 Explanation: Pushing the pedal forces air into the chambers, which moves the push
rod and turns the slack adjuster, twisting the S-cam and forcing the shoes against the
drum.
5. At what pressure must the low air pressure warning signal activate?
DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM
UPDATE
Core Domains
Air Brake System Components
Dual Air Brake Systems
Inspecting Air Brake Systems
Using Air Brakes Safely
Emergency and Parking Brake Systems
Brake Lag and Stopping Distances
Air Compressor and Governor Fundamentals
Regulatory Compliance and Safety Standards
Introduction
This comprehensive assessment is designed to evaluate the proficiency of commercial
driver
candidates in the operation and maintenance of air brake systems. The
purpose of this exam
is to ensure that every driver possesses the technical knowledge required
,for safe vehicle
operation. The assessment covers mechanical components, inspection
protocols, and
emergency procedures through multiple-choice questions and scenario-
based problems.
Emphasis is placed on real-world application, critical decision-making
under pressure,
and strict adherence to regulatory safety standards. Successful
completion demonstrates
a driver's readiness to manage the complexities of heavy vehicle braking
systems effectively.
SECTION ONE: QUESTIONS 1–100
1. The air compressor governor controls when the air compressor pumps air into the air
storage tanks. At what pressure does the governor typically "cut-out"?
A. 60 psi
B. 100 psi
C. 125 psi
D. 150 psi
,🟢 C. 125 psi
🔴 Explanation: The governor controls the compressor's pumping cycle. While it varies
slightly by manufacturer, the standard cut-out pressure for most systems is around 125
psi.
2. Which component of the air brake system protects the system from excessive
pressure by opening if the governor fails to cut out the compressor?
A. The supply valve
B. The safety valve
C. The tractor protection valve
D. The drain valve
🟢 B. The safety valve
🔴 Explanation: A safety relief valve is installed in the first tank the air compressor pumps
into. It is usually set to open at 150 psi to prevent system damage.
3. Why is it important to drain water and oil from the air tanks?
A. Water can freeze and cause brake failure
B. Oil can cause the brakes to grip too tightly
, C. To increase the total air volume capacity
D. To prevent the governor from sticking
🟢 A. Water can freeze and cause brake failure
🔴 Explanation: Compressed air usually contains some water and compressor oil. In cold
weather, water can freeze and block air lines, leading to total brake failure.
4. In a vehicle equipped with S-cam brakes, what happens when you push the brake
pedal?
A. Air pressure pushes the rod out, turning the slack adjuster
B. Hydraulic fluid forces the brake pads against the drum
C. The brake shoes are pulled away from the drum by air suction
D. The air compressor stops pumping to allow friction to occur
🟢 A. Air pressure pushes the rod out, turning the slack adjuster
🔴 Explanation: Pushing the pedal forces air into the chambers, which moves the push
rod and turns the slack adjuster, twisting the S-cam and forcing the shoes against the
drum.
5. At what pressure must the low air pressure warning signal activate?
