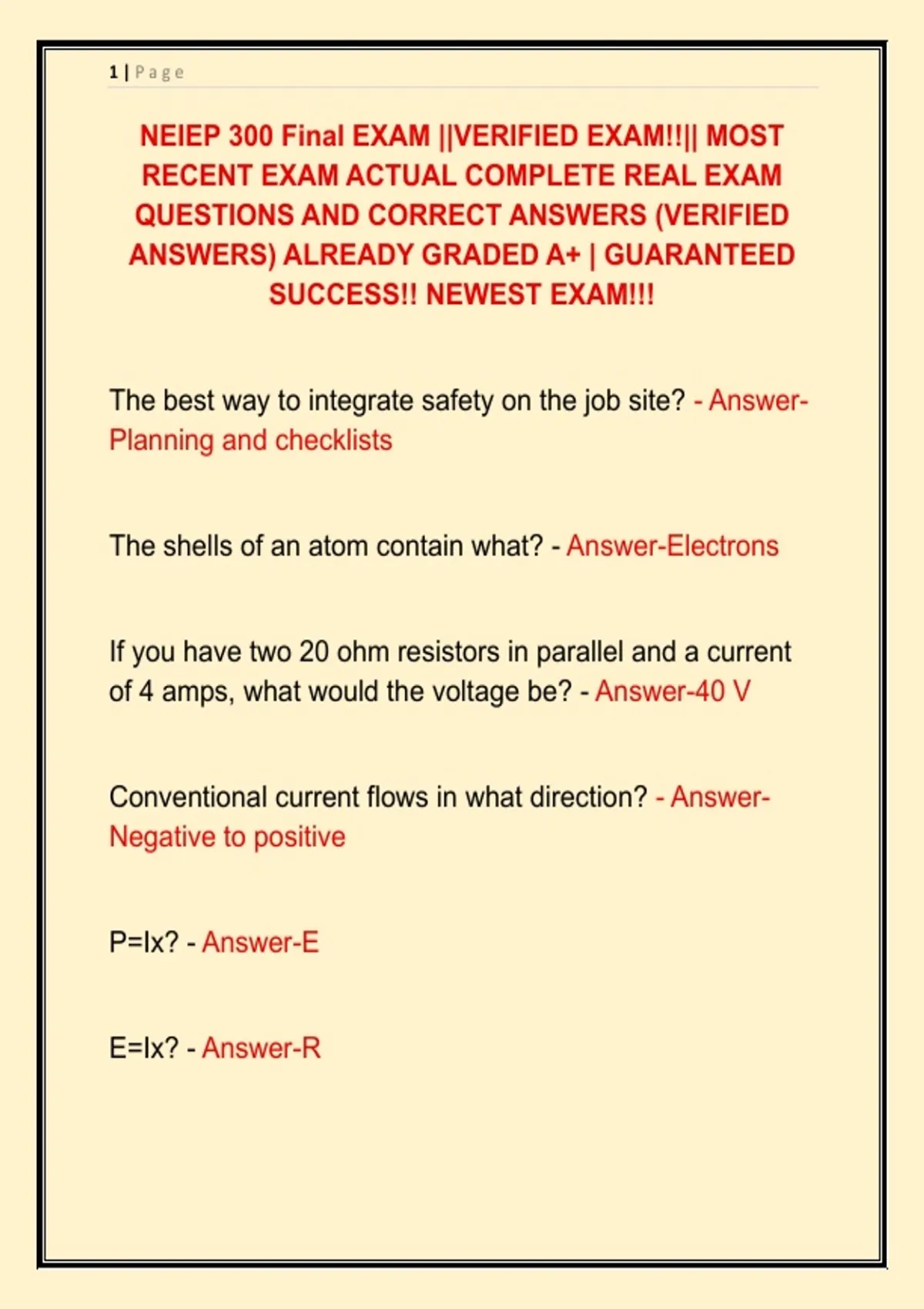

1|Page
NEIEP 300 Final EXAM ||VERIFIED EXAM!!|| MOST
RECENT EXAM ACTUAL COMPLETE REAL EXAM
QUESTIONS AND CORRECT ANSWERS (VERIFIED
ANSWERS) ALREADY GRADED A+ | GUARANTEED
SUCCESS!! NEWEST EXAM!!!
The best way to integrate safety on the job site? - Answer-
Planning and checklists
The shells of an atom contain what? - Answer-Electrons
If you have two 20 ohm resistors in parallel and a current
of 4 amps, what would the voltage be? - Answer-40 V
Conventional current flows in what direction? - Answer-
Negative to positive
P=Ix? - Answer-E
E=Ix? - Answer-R
,2|Page
An ohmmeter must be connected in what manner to
resistance in a circuit? - Answer-Parallel
What type of resistor can be used to adjust the speed of a
small motor that has a fixed terminal and a movable
contact? - Answer-Rheostat
What do clamp-on ammeters read to measure current? -
Answer-Magnetic lines of flux
A battery uses what to generate voltage? - Answer-
Chemical reaction
You have reinstalled four 100 ohm DC motors connected
in series parallel. Two in series, paralleled with two in
series. What is the voltage drop across each DC motor
with 200 V applied? - Answer-100 V
If you have a two branch parallel circuit, and each branch
is 200 ohms. When there is 0.25 amps per branch what is
the source voltage? - Answer-50 V
If a circuit has a voltage of 30 volts and a current of 2
amps, what is the resistance? - Answer-15 ohms
,3|Page
If a stator in wye configuration reads 120 VAC line-to -
neutral, what should the line-to-line voltage be? - Answer-
208 VAC
What is the term used to refer to the common connection
point/fourth terminal created when you connect a stator in
wye configuration? - Answer-Neutral
What is the formula to convert Celsius to Fahrenheit? -
Answer-Cx1.8+32=F
If you have three resistors in parallel, R1=100 ohms,
R2=50 ohms, and R3=25 ohms. What is the total circuit
resistance? - Answer-14.29 ohms
What is the formula to find RMS is you have the peak? -
Answer-peak x 0.707=RMS
Express 250 thousand watts in scientific notation -
Answer-2.5 x 10^5 W
, 4|Page
Convert 0.00025 kV to mV - Answer-250 mV
What happens to the magnetic fields around a conductor if
you increase the current applied? - Answer-They increase
Write 0.0051 using scientific notation. - Answer-5.1x10^-3
How many sine wave alterations will be generated from a
single loop, 20 pole AC generator making one complete
revolution? - Answer-10
True/False-Silicone can act as a conductor and an
insulator. - Answer-True
Opposing magnetic charges do what when placed next to
each other? - Answer-They attract
At what imbalance between the hot and neutral wire does
a GFCI trip? - Answer-5mA
