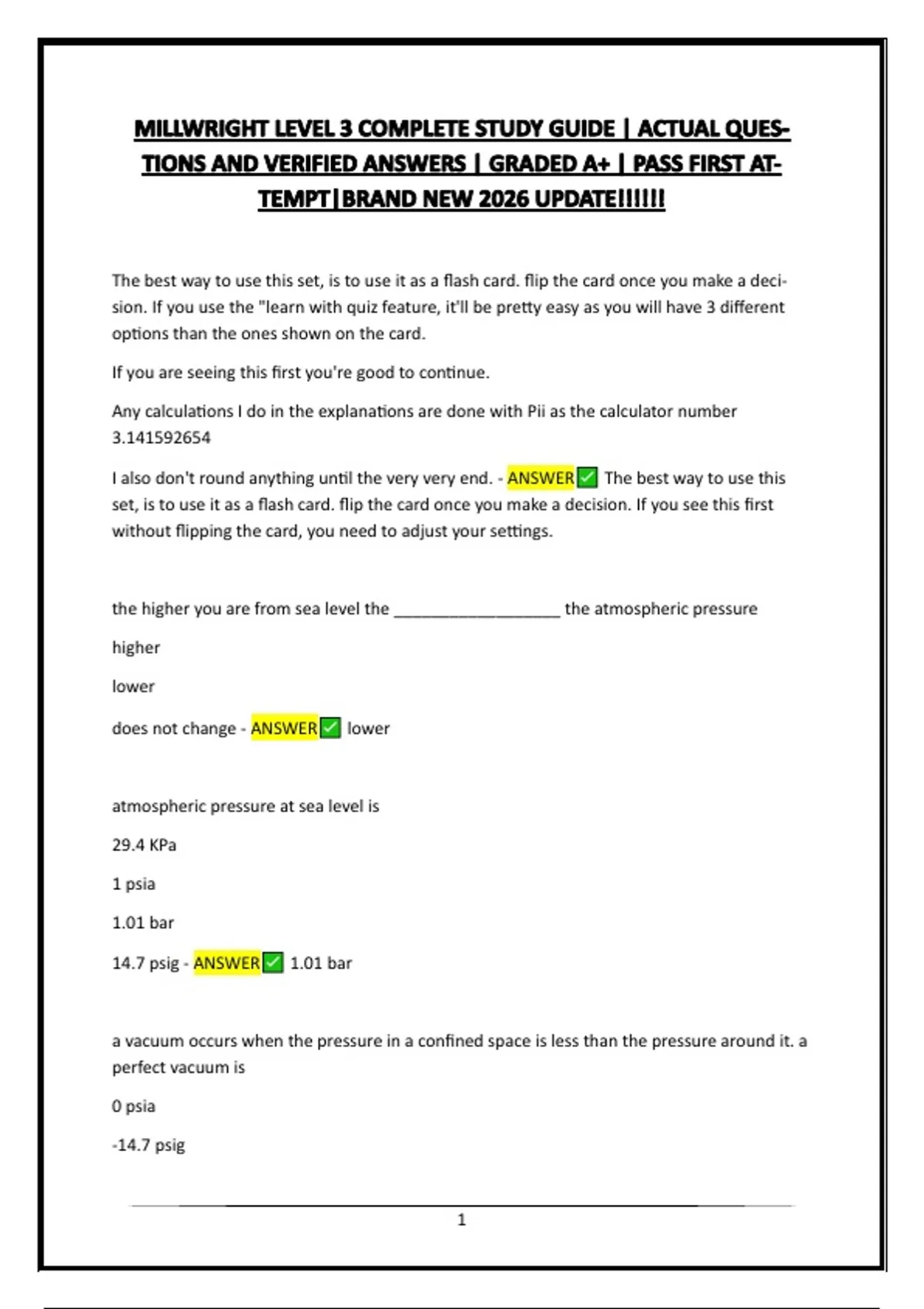

The best way to use this set, is to use it as a flash card. flip the card once you make a deci-
sion. If you use the "learn with quiz feature, it'll be pretty easy as you will have 3 different
options than the ones shown on the card.
If you are seeing this first you're good to continue.
Any calculations I do in the explanations are done with Pii as the calculator number
3.141592654
I also don't round anything until the very very end. - ANSWER The best way to use this
set, is to use it as a flash card. flip the card once you make a decision. If you see this first
without flipping the card, you need to adjust your settings.
the higher you are from sea level the __________________ the atmospheric pressure
higher
lower
does not change - ANSWER lower
atmospheric pressure at sea level is
29.4 KPa
1 psia
1.01 bar
14.7 psig - ANSWER 1.01 bar
a vacuum occurs when the pressure in a confined space is less than the pressure around it. a
perfect vacuum is
0 psia
-14.7 psig
1
,6.9 KPa
all the above
both the 1st and 2nd answers are correct - ANSWER both 1st and 2nd answers are cor-
rect
a manometer is an accurate means of reading a vacuum
true
false - ANSWER true
a compressor is working at a high attitude. if you compared it to one running at a low alti-
tude machine, the high altitude machine would produce___________________ compressed
air over the same time period
more
less
the same
any of the above - ANSWER less
if you calculated the power consumption of the compressors in the above question, the
______________ would use more power in the same time period
machine at high altitude
machine at low altitude - ANSWER machine at low altitude
to create flow in a compressed air system, you will need a______________
restriction
manometer
pressure differential
a storage tank - ANSWER pressure differential
2
,if you heat a gas in a confined space, the pressure will go _______________because the
molecules move _____________
down, faster
down, slower
up, slower
up, faster - ANSWER up, faster
the absolute scale that works with Celsius is the _______________
Rankine
kelvin
fahrenheit
vacuum - ANSWER kelvin
convert 180 degrees F to degrees C ----- formula is C=(F-32) x 5/9
102
92
82
72 - ANSWER 82
convert 250 F to degrees K absolute. ------Formula is degrees C + 273
594
494
394
294 - ANSWER 394
Pascal's law states
energy cannot be created nor destroyed
kinetic energy and potential energy in a flowing pipe will be constant
3
, pressure in a confined space will transmit equally in all directions
pressure and flow creates velocity - ANSWER pressure in a confined space will transmit
equally in all directions
when there is constant flow in a pipe, the velocity of the gas will _______________ when
the pipe size_____________. according to Bernoulli
decrease, increases
increase, increases
decrease, decreases
stay the same, increases - ANSWER decrease, increase
Boyle's law considers ______________________ as a constant
pressure
volume
temperature
all the above - ANSWER temperature
Charles law considers ____________ as a constant
pressure
volume
temperature
both the 1st and 2nd answer - ANSWER pressure
Gay - Lussac's law considers ____________________ as a constant (according to the mod-
ule)
pressure
volume
temperature
4
