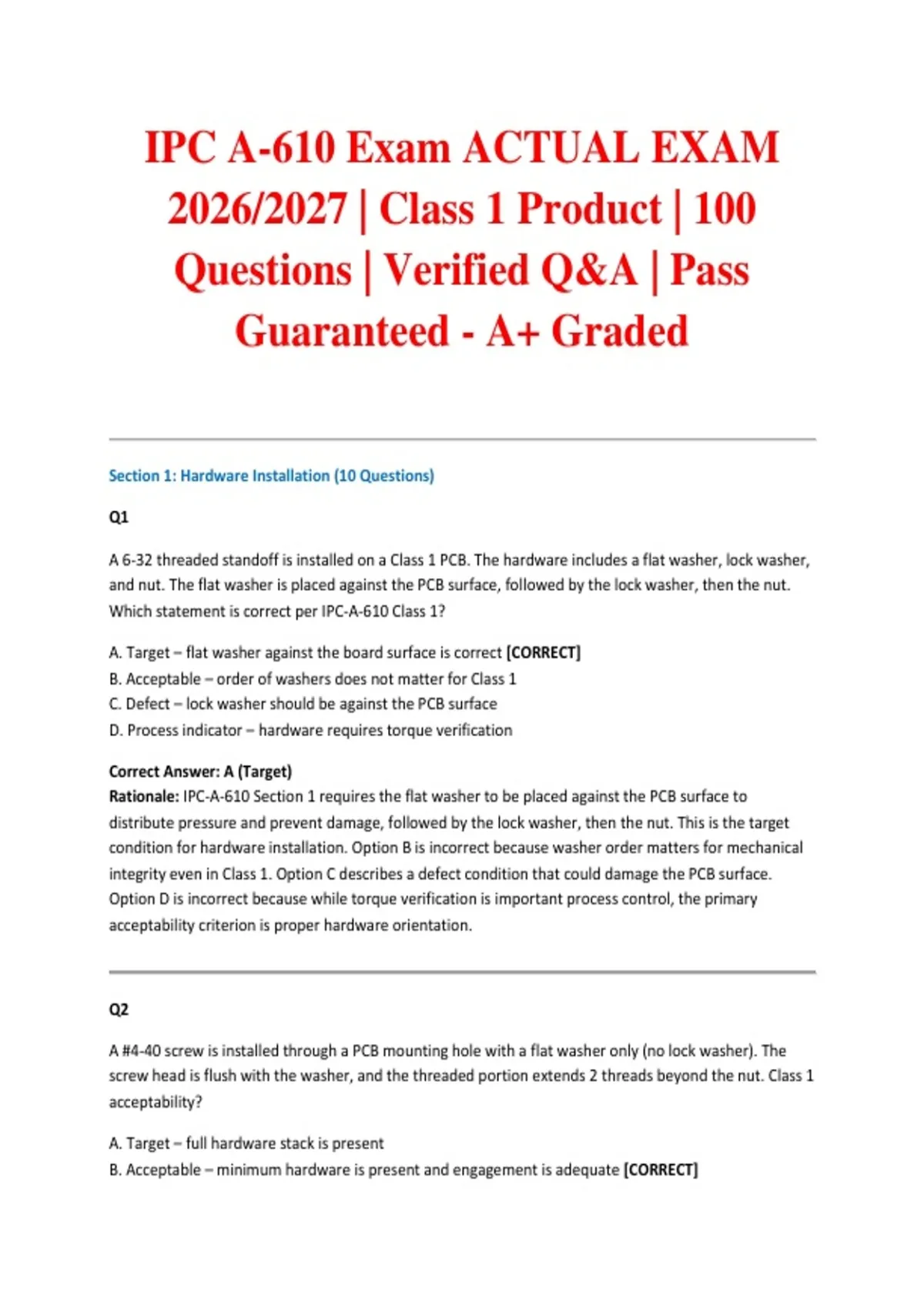

IPC A-610 Exam ACTUAL EXAM
2026/2027 | Class 1 Product | 100
Questions | Verified Q&A | Pass
Guaranteed - A+ Graded
Section 1: Hardware Installation (10 Questions)
Q1
A 6-32 threaded standoff is installed on a Class 1 PCB. The hardware includes a flat washer, lock washer,
and nut. The flat washer is placed against the PCB surface, followed by the lock washer, then the nut.
Which statement is correct per IPC-A-610 Class 1?
A. Target – flat washer against the board surface is correct [CORRECT]
B. Acceptable – order of washers does not matter for Class 1
C. Defect – lock washer should be against the PCB surface
D. Process indicator – hardware requires torque verification
Correct Answer: A (Target)
Rationale: IPC-A-610 Section 1 requires the flat washer to be placed against the PCB surface to
distribute pressure and prevent damage, followed by the lock washer, then the nut. This is the target
condition for hardware installation. Option B is incorrect because washer order matters for mechanical
integrity even in Class 1. Option C describes a defect condition that could damage the PCB surface.
Option D is incorrect because while torque verification is important process control, the primary
acceptability criterion is proper hardware orientation.
Q2
A #4-40 screw is installed through a PCB mounting hole with a flat washer only (no lock washer). The
screw head is flush with the washer, and the threaded portion extends 2 threads beyond the nut. Class 1
acceptability?
A. Target – full hardware stack is present
B. Acceptable – minimum hardware is present and engagement is adequate [CORRECT]
,C. Defect – lock washer is required for all threaded fasteners
D. Process indicator – thread extension should be 3 threads minimum
Correct Answer: B (Acceptable)
Rationale: Per IPC-A-610 Section 1.2, Class 1 requires minimum 1 full thread engagement beyond the
nut; 2 threads meets this requirement. A lock washer is not mandatory for all Class 1 applications if the
joint is not subject to vibration or loosening. Option A is incorrect because target would include a lock
washer where specified. Option C is incorrect—lock washers are not universally required for Class 1.
Option D is incorrect—1 thread beyond the nut is the Class 1 minimum, not 3.
Q3 [Described Image]
A mounting bracket is secured to a Class 1 PCB with four #6-32 screws. One screw is visibly cross-
threaded, with the screw head standing proud approximately 0.5 mm above the washer surface. The
other three screws are properly tightened. Class 1 determination?
A. Target – three of four screws are correct
B. Acceptable – cross-threading is allowed if other screws are secure
C. Defect – cross-threaded fastener does not provide proper clamping force [CORRECT]
D. Process indicator – monitor the cross-threaded screw during service
Correct Answer: C (Defect)
Rationale: IPC-A-610 Section 1.1 defines cross-threaded fasteners as Defect for all classes because they
cannot provide the designed clamping force and may loosen or fail. The three properly installed screws
do not compensate for the defective one. Option A incorrectly suggests partial compliance. Option B is
dangerous—cross-threading is never acceptable. Option D understates the severity; this is a rejectable
condition, not merely a process indicator.
Q4
A threaded insert (Helicoil) is installed in an aluminum chassis. The insert is flush with the top surface
but protrudes 0.3 mm below the bottom surface. Class 1 acceptability?
A. Target – insert is flush on both surfaces
B. Acceptable – bottom protrusion does not violate clearance or electrical spacing [CORRECT]
C. Defect – inserts must be flush on both sides for Class 1
D. Process indicator – protrusion should be noted for assembly interference
Correct Answer: B (Acceptable)
Rationale: Per IPC-A-610 Section 1.3, Class 1 allows insert protrusion provided it does not violate
minimum electrical clearance or interfere with subsequent assembly. Flush mounting on both sides is
,Target (A). Option C is incorrect—Class 1 does not require flushness on both sides if no interference
exists. Option D understates the condition; if clearance is maintained, this is Acceptable, not merely a
process indicator.
Q5 [Three-Level Decision]
A standoff is installed with the correct washer orientation. The screw is torqued to specification, threads
extend 3 full threads beyond the nut, and the hardware stack is complete per drawing. No damage to
PCB or components. Class 1 determination?
A. Target [CORRECT]
B. Acceptable
C. Defect
D. Process Indicator
Correct Answer: A (Target)
Rationale: This is the target condition: correct hardware orientation, specified torque, adequate thread
engagement (3 threads exceeds minimum), complete hardware stack, and no damage. All Class 1 criteria
are exceeded. Acceptable (B) would apply if minor deviations existed (e.g., 1–2 threads engagement).
Defect (C) would require cross-threading, stripped threads, or damage. Process Indicator (D) would
apply to conditions trending toward unacceptable but not yet rejectable.
Q6
A #8-32 nut is installed without a washer of any type. The nut directly contacts the PCB surface around a
plated through-hole. Class 1 acceptability?
A. Target – direct contact ensures good grounding
B. Acceptable – washers are optional for Class 1 if no damage occurs [CORRECT]
C. Defect – washer is required to prevent board damage
D. Process indicator – monitor for board cracking under nut
Correct Answer: B (Acceptable)
Rationale: IPC-A-610 Section 1.2 states that washers are required when specified by engineering
documentation. If no washer is specified and the nut does not damage the PCB surface, Class 1 accepts
this condition. However, Target (A) would include a flat washer for load distribution. Option C is
incorrect—washers are not universally mandatory. Option D understates the condition; if no damage is
present, this is Acceptable, not a process indicator.
Q7 [Described Image]
, A snap-in plastic standoff is installed in a 0.125" diameter mounting hole. The standoff barbs are fully
engaged, but the standoff is tilted approximately 10 degrees from perpendicular to the board surface.
No cracking is visible around the hole. Class 1 acceptability?
A. Target – standoff is perpendicular and fully engaged
B. Acceptable – minor tilt is acceptable if retention is secure and no damage [CORRECT]
C. Defect – standoffs must be perpendicular within 5 degrees
D. Process indicator – tilt may cause component interference
Correct Answer: B (Acceptable)
Rationale: IPC-A-610 Section 1.4 for Class 1 allows minor tilt in snap-in hardware provided the retention
mechanism is fully engaged, no damage to board or hole occurs, and the tilt does not violate component
keep-out zones or electrical clearance. Target (A) requires perpendicular installation. Option C applies a
non-existent 5-degree specification. Option D is speculative—if no interference exists, this is Acceptable.
Q8
A threaded standoff is installed with a flat washer against the board, but the lock washer is omitted. The
assembly is for a stationary desktop computer chassis with no vibration exposure. Class 1 acceptability?
A. Target – complete hardware stack per best practice
B. Acceptable – lock washer omission is acceptable for non-vibration Class 1 applications [CORRECT]
C. Defect – lock washer is mandatory for all standoff installations
D. Process indicator – omitting lock washer may cause loosening
Correct Answer: B (Acceptable)
Rationale: Class 1 (General Electronic Products) allows omission of non-specified hardware if the
application does not require it. For stationary, non-vibration environments, a lock washer may not be
necessary. Target (A) would include all specified hardware. Option C is incorrect—lock washers are not
universally mandatory. Option D is speculative for this application.
Q9 [Class 1 Only Exception]
A #4-40 screw is installed with a split lock washer. The lock washer is compressed flat during tightening
and no longer provides spring tension. The assembly is Class 1. Acceptability?
A. Target – lock washer is properly compressed
B. Acceptable – Class 1 allows compressed lock washers if screw is tight [CORRECT]
C. Defect – lock washer must maintain spring tension
D. Process indicator – compressed washer may loosen over time
