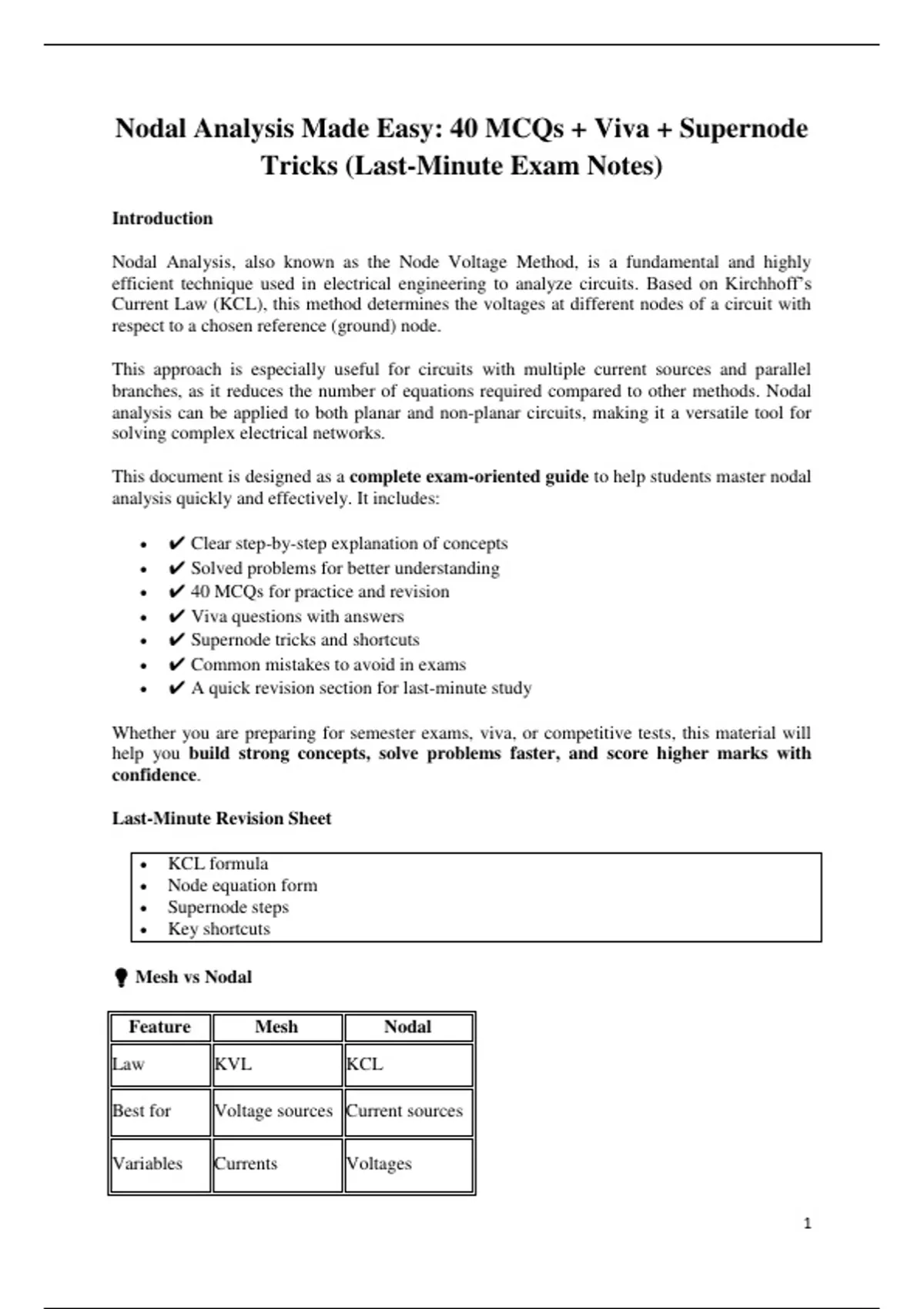

Nodal Analysis Made Easy: 40 MCQs + Viva + Supernode
Tricks (Last-Minute Exam Notes)
Introduction
Nodal Analysis, also known as the Node Voltage Method, is a fundamental and highly
efficient technique used in electrical engineering to analyze circuits. Based on Kirchhoff’s
Current Law (KCL), this method determines the voltages at different nodes of a circuit with
respect to a chosen reference (ground) node.
This approach is especially useful for circuits with multiple current sources and parallel
branches, as it reduces the number of equations required compared to other methods. Nodal
analysis can be applied to both planar and non-planar circuits, making it a versatile tool for
solving complex electrical networks.
This document is designed as a complete exam-oriented guide to help students master nodal
analysis quickly and effectively. It includes:
✔ Clear step-by-step explanation of concepts
✔ Solved problems for better understanding
✔ 40 MCQs for practice and revision
✔ Viva questions with answers
✔ Supernode tricks and shortcuts
✔ Common mistakes to avoid in exams
✔ A quick revision section for last-minute study
Whether you are preparing for semester exams, viva, or competitive tests, this material will
help you build strong concepts, solve problems faster, and score higher marks with
confidence.
Last-Minute Revision Sheet
KCL formula
Node equation form
Supernode steps
Key shortcuts
💡 Mesh vs Nodal
Feature Mesh Nodal
Law KVL KCL
Best for Voltage sources Current sources
Variables Currents Voltages
1
, Common Exam Mistakes
❌ Forgetting reference node
❌ Wrong current direction in KCL
❌ Missing supernode constraint
❌ Sign errors in voltage
Nodal Analysis
Node Method or Node Voltage Method
Nodal analysis provides a general procedure for analysing circuits using node voltages as the
circuit variables. Nodal analysis is based on Kirchhoff’s Current Law. This method has the
advantage that a minimum number of equations are needed to determine the unknown
quantities. It is particularly suited for networks having many parallel branches and also when
there are current sources in the network. Nodal analysis is applicable to both planar and non-
planar circuits.
To determine node voltages, the following steps are required:
Step 1) Let there are n number of nodes in the circuit. Select a node as the reference node or
datum node. Assign voltages V1, V2,…..,, Vn-1 to the remaining (n-1) nodes. The voltages are
referenced with respect to the datum node. The datum node is commonly called the ground
since it is assigned to have zero potential. A reference node is indicated by the symbol shown
in Figure 1.
Step 2) Apply Kirchhoff’s Current Law (KCL) to each of the (n-1) non-reference nodes. Use
ohm’s law to express the branch current in terms of node voltages.
Step 3) Solve the simultaneous equations to obtain the unknown node voltages.
Consider the circuit shown in Figure 2. The circuit in Figure 2 is redrawn in Figure 2(a)
where there are four nodes [represented by (1), (2), (3) and (4)]. Node (4) is the datum node
(V4=0), while nodes (1), (2) and (3) are assigned voltages V1, V2 and V3 respectively. Here,
node voltages are defined with respect to the reference node.
2
