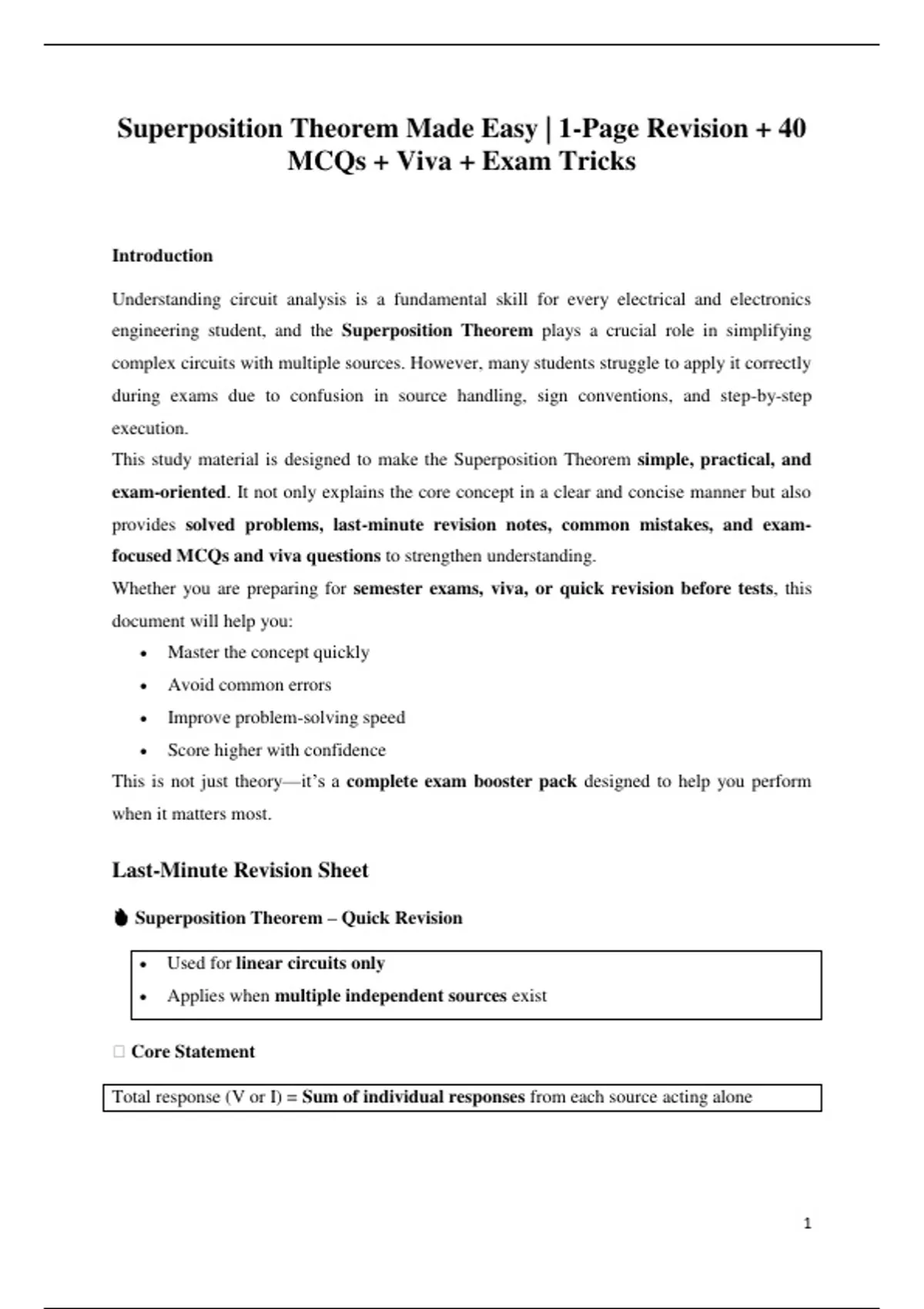

Superposition Theorem Made Easy | 1-Page Revision + 40
MCQs + Viva + Exam Tricks
Introduction
Understanding circuit analysis is a fundamental skill for every electrical and electronics
engineering student, and the Superposition Theorem plays a crucial role in simplifying
complex circuits with multiple sources. However, many students struggle to apply it correctly
during exams due to confusion in source handling, sign conventions, and step-by-step
execution.
This study material is designed to make the Superposition Theorem simple, practical, and
exam-oriented. It not only explains the core concept in a clear and concise manner but also
provides solved problems, last-minute revision notes, common mistakes, and exam-
focused MCQs and viva questions to strengthen understanding.
Whether you are preparing for semester exams, viva, or quick revision before tests, this
document will help you:
Master the concept quickly
Avoid common errors
Improve problem-solving speed
Score higher with confidence
This is not just theory—it’s a complete exam booster pack designed to help you perform
when it matters most.
Last-Minute Revision Sheet
🔥 Superposition Theorem – Quick Revision
Used for linear circuits only
Applies when multiple independent sources exist
⚡ Core Statement
Total response (V or I) = Sum of individual responses from each source acting alone
1
, Source Replacement Rules
Voltage source → Short circuit (0V)
Current source → Open circuit (0A)
Dependent sources → DO NOT REMOVE
Steps
1. Keep one source active
2. Turn off all other independent sources
3. Find contribution (V or I)
4. Repeat for all sources
5. Add algebraically
⚡ Not Applicable For
Power calculation directly (non-linear)
First find V/I → then calculate power
Key Formula
Total=V1+V2+V3+...
Used With
KCL / KVL
Node & Mesh analysis
Common Exam Mistakes
1. ❌ Turning off dependent sources
2. ❌ Forgetting sign (direction of current/voltage)
3. ❌ Directly adding power values
4. ❌ Not converting voltage source to short circuit
5. ❌ Missing parallel/series simplification
6. ❌ Wrong reference node in nodal analysis
7. ❌ Ignoring polarity
8. ❌ Algebraic addition mistakes
9. ❌ Not redrawing simplified circuit
10. ❌ Mixing units (A, mA, V)
2
