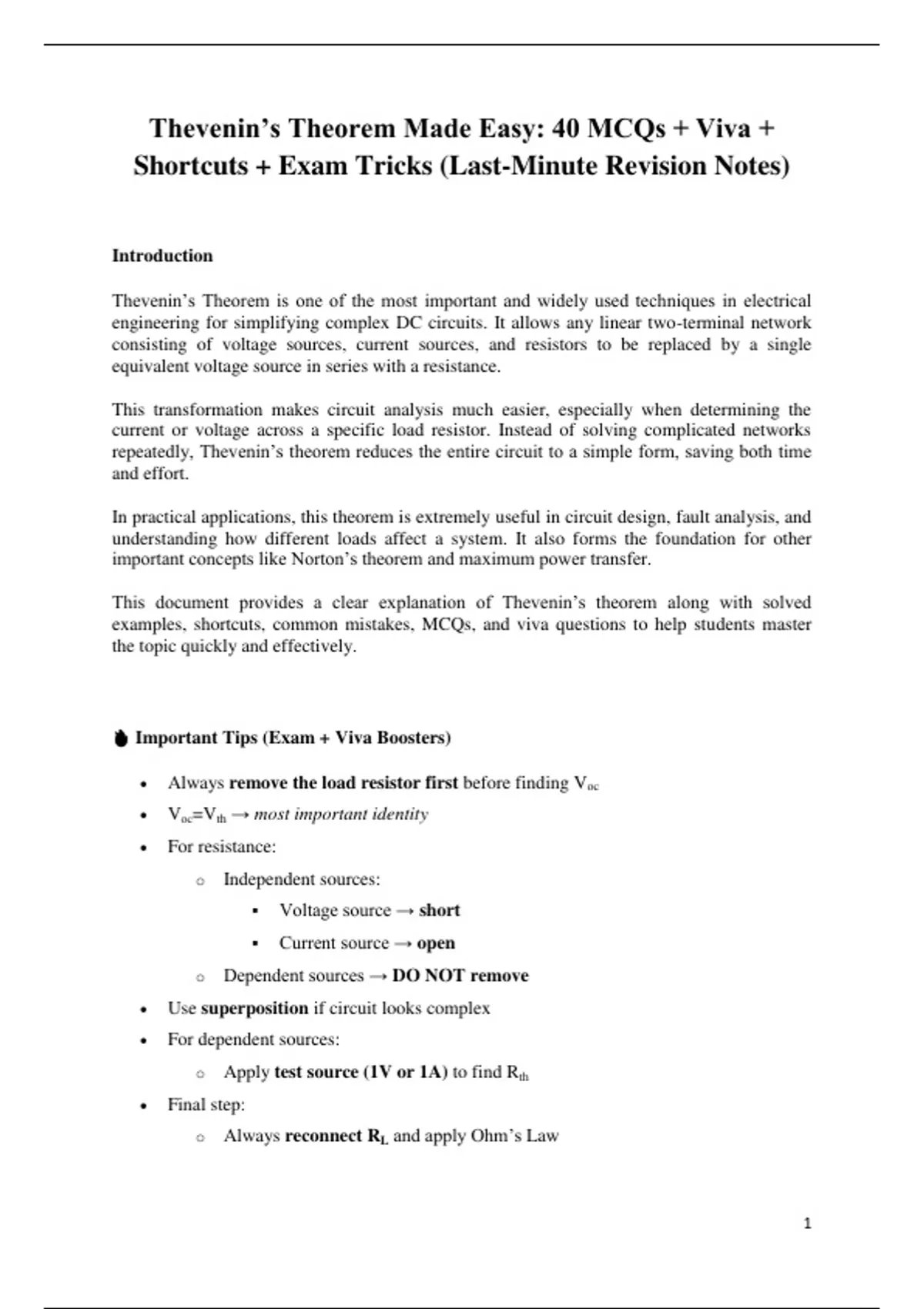

Thevenin’s Theorem Made Easy: 40 MCQs + Viva + Shortcuts + Exam Tricks (Last-Minute Revision Notes)

Thevenin’s Theorem Made Easy: 40 MCQs + Viva +
Shortcuts + Exam Tricks (Last-Minute Revision Notes)


Introduction

Thevenin’s Theorem is one of the most important and widely used techniques in electrical
engineering for simplifying complex DC circuits. It allows any linear two-terminal network
consisting of voltage sources, current sources, and resistors to be replaced by a single
equivalent voltage source in series with a resistance.

This transformation makes circuit analysis much easier, especially when determining the
current or voltage across a specific load resistor. Instead of solving complicated networks
repeatedly, Thevenin’s theorem reduces the entire circuit to a simple form, saving both time
and effort.

In practical applications, this theorem is extremely useful in circuit design, fault analysis, and
understanding how different loads affect a system. It also forms the foundation for other
important concepts like Norton’s theorem and maximum power transfer.

This document provides a clear explanation of Thevenin’s theorem along with solved
examples, shortcuts, common mistakes, MCQs, and viva questions to help students master
the topic quickly and effectively.



🔥 Important Tips (Exam + Viva Boosters)

 Always remove the load resistor first before finding Voc
 Voc=Vth → most important identity
 For resistance:
o Independent sources:
 Voltage source → short
 Current source → open
o Dependent sources → DO NOT remove
 Use superposition if circuit looks complex
 For dependent sources:
o Apply test source (1V or 1A) to find Rth
 Final step:
o Always reconnect RL and apply Ohm’s Law



1

,Common Mistakes (Very Important)

1. ❌ Forgetting to remove load resistor
2. ❌ Wrong handling of dependent sources
3. ❌ Mixing up Voc and terminal voltage
4. ❌ Not shorting voltage source properly
5. ❌ Arithmetic mistakes in KVL
6. ❌ Ignoring polarity of voltage
7. ❌ Not simplifying parallel/series properly
8. ❌ Confusing Thevenin with Norton
9. ❌ Using wrong direction of current
10. ❌ Not checking units (Ω, V, A)



Quick Revision

Thevenin Formula Summary

 Vth=Voc
 Rth=Voc/Isc
 IL=Vth/(Rth+RL)


Steps

1. Remove load
2. Find Voc
3. Find Rth
4. Draw equivalent circuit
5. Reconnect load and solve



Thevenin’s Theorem
(For DC Network)

A linear two terminal active dc network K consisting of independent and/or dependent
voltage and/or current sources and resistors can be replaced at a pair of terminals x-y by an
equivalent network consisting of a voltage source Voc in series with a resistance Rth.



2

, The voltage source Voc is the voltage across the terminals x-y when they are open circuited.
This voltage is called the Thevenin equivalent voltage or Thevenin open circuit voltage.

The Thevenin equivalent resistance Rth has a value given by the ratio of the open circuit
voltage Voc and the short circuit current Isc at the terminals x-y of the original network K.
That is

Open circuit voltage across theter min als x  y of network K
Rth 
Short circuit current through theter min als x  y of network K

If all the sources are independent, the Thevenin equivalent resistance Rth is the total
resistance at the open-circuited terminals x-y when all ideal voltage sources are replaced by
short circuits and all ideal current sources are replaced by open circuits.

Consider a linear active network K connected to a load resistance RL as shown in Figure
1(a). To determine the current through or voltage across load resistance RLconnected between
the terminals x-y, the rest of the network may be replaced by a simple equivalent network
consisting of Voc in series with Rth [see Figure 1(b)].




The load current IL is calculated by

Voc
IL 
Rth  RL




3
