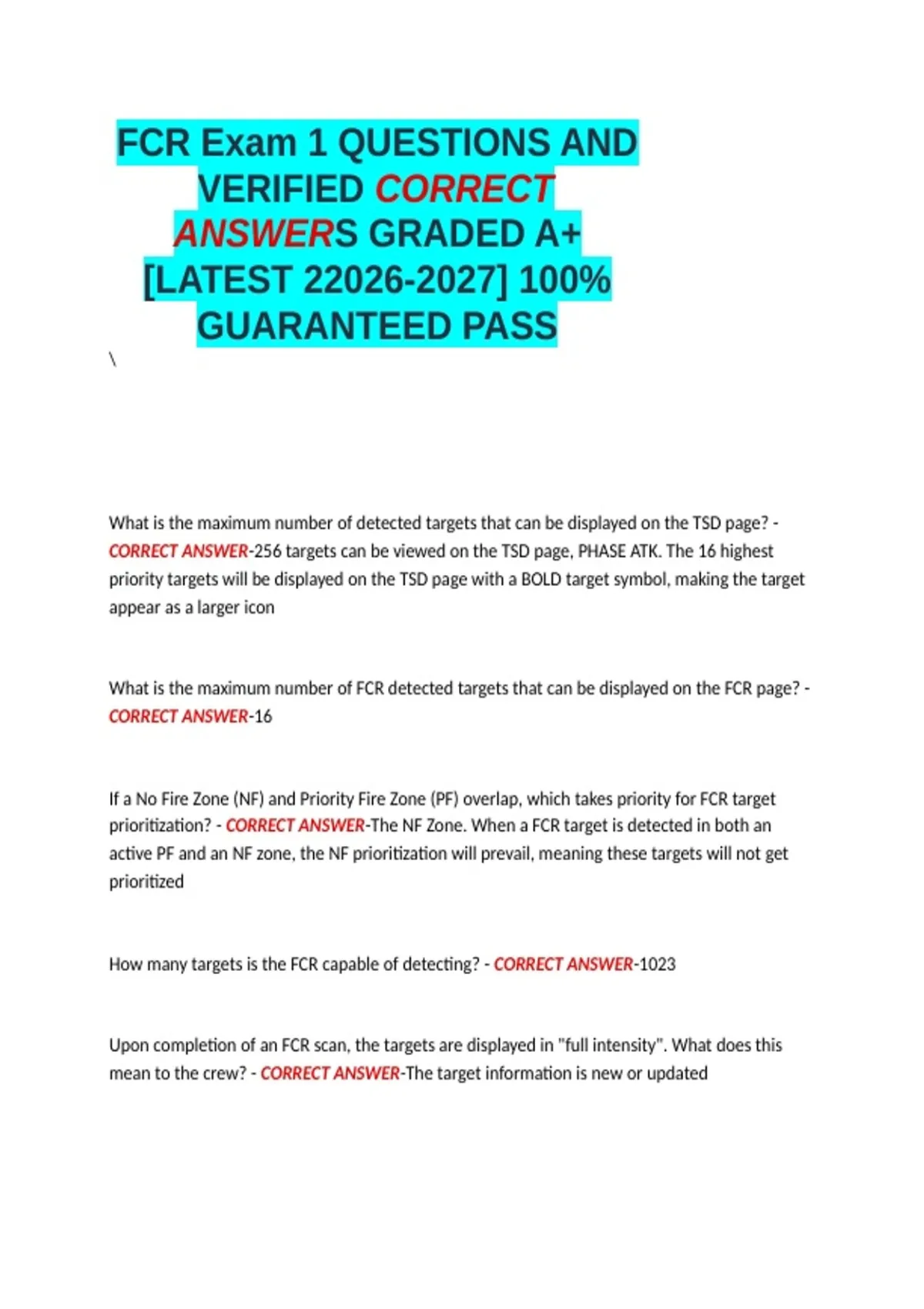

FCR Exam 1 QUESTIONS AND
VERIFIED CORRECT
ANSWERS GRADED A+
[LATEST 22026-2027] 100%
GUARANTEED PASS
\
What is the maximum number of detected targets that can be displayed on the TSD page? -
CORRECT ANSWER-256 targets can be viewed on the TSD page, PHASE ATK. The 16 highest
priority targets will be displayed on the TSD page with a BOLD target symbol, making the target
appear as a larger icon
What is the maximum number of FCR detected targets that can be displayed on the FCR page? -
CORRECT ANSWER-16
If a No Fire Zone (NF) and Priority Fire Zone (PF) overlap, which takes priority for FCR target
prioritization? - CORRECT ANSWER-The NF Zone. When a FCR target is detected in both an
active PF and an NF zone, the NF prioritization will prevail, meaning these targets will not get
prioritized
How many targets is the FCR capable of detecting? - CORRECT ANSWER-1023
Upon completion of an FCR scan, the targets are displayed in "full intensity". What does this
mean to the crew? - CORRECT ANSWER-The target information is new or updated
, At the completion of an FCR scan, moving targets on the FCR page will go stale after how many
seconds? - CORRECT ANSWER-5
When is the NTS established? - CORRECT ANSWER-At the end of the first scan of a scanburst
What four things will cause the NTS icon to change? - CORRECT ANSWER-1. Selection of NTS at
L1
2. Cursor selection of a different FCR icon
3. Sending a RFHO
4. Firing at the target with an RF missile
What happens to the NTS if the crew actions a weapon system during a scan? - CORRECT
ANSWER-The Radar Electronics Unit (REU) will establish a NTS based on the targets detected up
to that point and will display a NTS icon around the target icon
What does a broken (dashed) NTS symbol indicate? - CORRECT ANSWER-Any one of the
following will cause the NTS symbol to be broken:
- FCR is not the selected sight
- A weapon system is not actioned
- Aircraft is not armed
The Pilot's selected sight is FCR and has a weapon system actioned. The NTS icon is still dashed.
Can the CPG make the NTS symbol solid by placing the aircraft ARM/SAFE button to ARM? -
CORRECT ANSWER-Yes. The ARM/SAFE button is common
Which FCR mode is displayed in a B-scope/Rectilinear format? - CORRECT ANSWER-RMAP Mode
What symbols will be available when changing between GTM and RMAP? - CORRECT ANSWER-
Target symbol data is maintained when operating between the two modes
