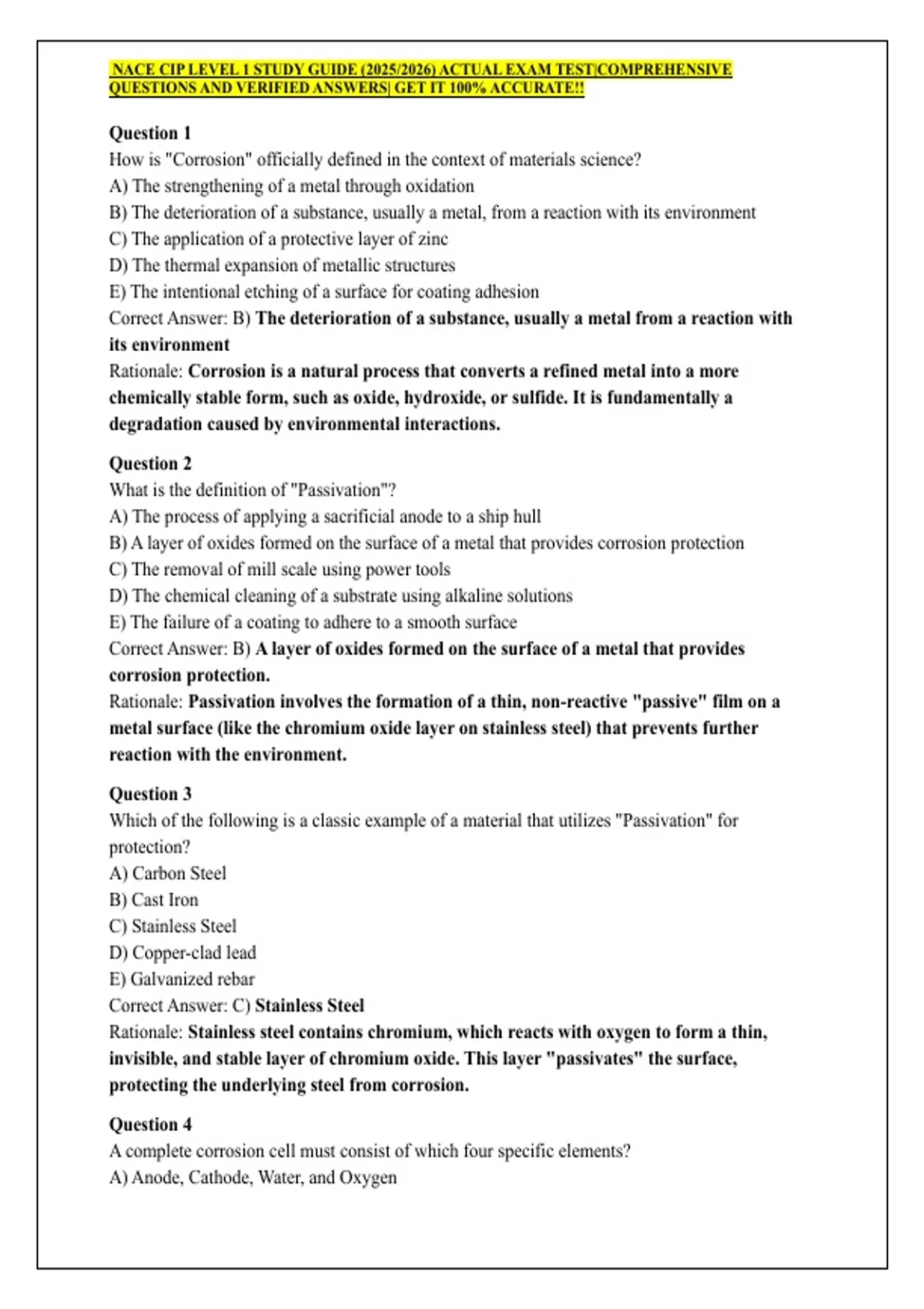

NACE CIP LEVEL 1 STUDY GUIDE (2025/2026) ACTUAL EXAM TEST|COMPREHENSIVE
QUESTIONS AND VERIFIED ANSWERS| GET IT 100% ACCURATE!!
Question 1
How is "Corrosion" officially defined in the context of materials science?
A) The strengthening of a metal through oxidation
B) The deterioration of a substance, usually a metal, from a reaction with its environment
C) The application of a protective layer of zinc
D) The thermal expansion of metallic structures
E) The intentional etching of a surface for coating adhesion
Correct Answer: B) The deterioration of a substance, usually a metal from a reaction with
its environment
Rationale: Corrosion is a natural process that converts a refined metal into a more
chemically stable form, such as oxide, hydroxide, or sulfide. It is fundamentally a
degradation caused by environmental interactions.
Question 2
What is the definition of "Passivation"?
A) The process of applying a sacrificial anode to a ship hull
B) A layer of oxides formed on the surface of a metal that provides corrosion protection
C) The removal of mill scale using power tools
D) The chemical cleaning of a substrate using alkaline solutions
E) The failure of a coating to adhere to a smooth surface
Correct Answer: B) A layer of oxides formed on the surface of a metal that provides
corrosion protection.
Rationale: Passivation involves the formation of a thin, non-reactive "passive" film on a
metal surface (like the chromium oxide layer on stainless steel) that prevents further
reaction with the environment.
Question 3
Which of the following is a classic example of a material that utilizes "Passivation" for
protection?
A) Carbon Steel
B) Cast Iron
C) Stainless Steel
D) Copper-clad lead
E) Galvanized rebar
Correct Answer: C) Stainless Steel
Rationale: Stainless steel contains chromium, which reacts with oxygen to form a thin,
invisible, and stable layer of chromium oxide. This layer "passivates" the surface,
protecting the underlying steel from corrosion.
Question 4
A complete corrosion cell must consist of which four specific elements?
A) Anode, Cathode, Water, and Oxygen
, 2
B) Anode, Cathode, Metallic Pathway, and Electrolyte
C) Steel, Moisture, Salt, and Heat
D) Battery, Wire, Metal, and Acid
E) Primer, Intermediate coat, Topcoat, and Solvent
Correct Answer: B) Anode, Cathode, Metallic Pathway, Electrolyte
Rationale: For corrosion to occur, there must be a location where oxidation occurs (anode),
a location where reduction occurs (cathode), a path for electrons to travel (metallic
pathway), and a medium to conduct ions (electrolyte). If any of these four are missing, the
corrosion cell is broken.
Question 5
In a corrosion cell, what specific physical action occurs at the Anode?
A) Electrons are gained by the metal
B) The metal dissolves into the electrolyte
C) Protective oxides are formed
D) The surface becomes more noble
E) The electrolyte becomes neutralized
Correct Answer: B) The metal dissolves into the electrolyte
Rationale: At the anode, the metal undergoes oxidation, losing electrons and turning into
metal ions that dissolve into the surrounding electrolyte, resulting in material loss.
Question 6
What is the primary function of the Electrolyte in a corrosion cell?
A) To provide a path for electron flow
B) To act as the site of oxidation
C) To allow the passage of ions to connect the corrosion cell
D) To prevent the metal from dissolving
E) To increase the temperature of the reaction
Correct Answer: C) Allows the passage of ions to connect the corrosion cell
Rationale: The electrolyte is an electrically conductive medium (like water or soil) that
facilitates the movement of ions between the anode and the cathode, completing the
electrical circuit.
Question 7
What is the function of the Metallic Pathway in a corrosion cell?
A) It acts as the electrolyte
B) It allows the flow of electrons to connect the corrosion cell
C) It serves as the primary site of metal loss
D) It provides oxygen to the reaction
E) It measures the voltage of the cell
Correct Answer: B) Allows the flow of electrons to connect the corrosion cell
, 3
Rationale: The metallic pathway (usually the metal structure itself) provides the physical
connection through which electrons move from the anode to the cathode.
Question 8
The "Galvanic Series" is best described as:
A) A list of coatings ranked by their price
B) A listing of metals in order of reactivity in seawater at 25°C
C) A standard for abrasive blast cleaning
D) A guide for choosing the correct spray tip
E) The sequence of steps in a pre-job conference
Correct Answer: B) A listing of metals in order of reactivity (more or less noble) in seawater
at 25 C
Rationale: The galvanic series allows inspectors and engineers to predict which metal will
corrode when two dissimilar metals are connected in a specific environment.
Question 9
What is the general rule regarding "Galvanic Corrosion" when two different metals are
connected?
A) The less reactive metal will corrode first
B) The more noble metal will dissolve into the electrolyte
C) The more reactive metal will corrode preferentially
D) Corrosion will stop entirely
E) Both metals will corrode at exactly the same rate
Correct Answer: C) The more reactive metal --when connected to the less reactive (more
noble) metal -- will corrode preferentially
Rationale: In a galvanic couple, the "active" or less noble metal becomes the anode and
sacrifices itself to protect the more noble "cathodic" metal.
Question 10
NACE identifies five critical factors that affect the rate of corrosion. Which of the following is
part of that list?
A) Relative Humidity, Oxygen, Chemical Salts, Pollutants, and Temperature
B) Wind speed, Surface Profile, Lighting, Sound, and Density
C) Pot life, Induction time, Flash point, Viscosity, and Color
D) Solvent type, Pigment size, Binder ratio, Shelf life, and VOCs
E) Abrasive size, Nozzle pressure, Operator skill, Anchor pattern, and Cleanliness
Correct Answer: A) Humidity, oxygen, chemical salts, pollutants, temperature
Rationale: The rate of corrosion is highly dependent on the environment. High humidity
and temperature, along with the presence of salts and pollutants, accelerate the
electrochemical reactions of the corrosion cell.
