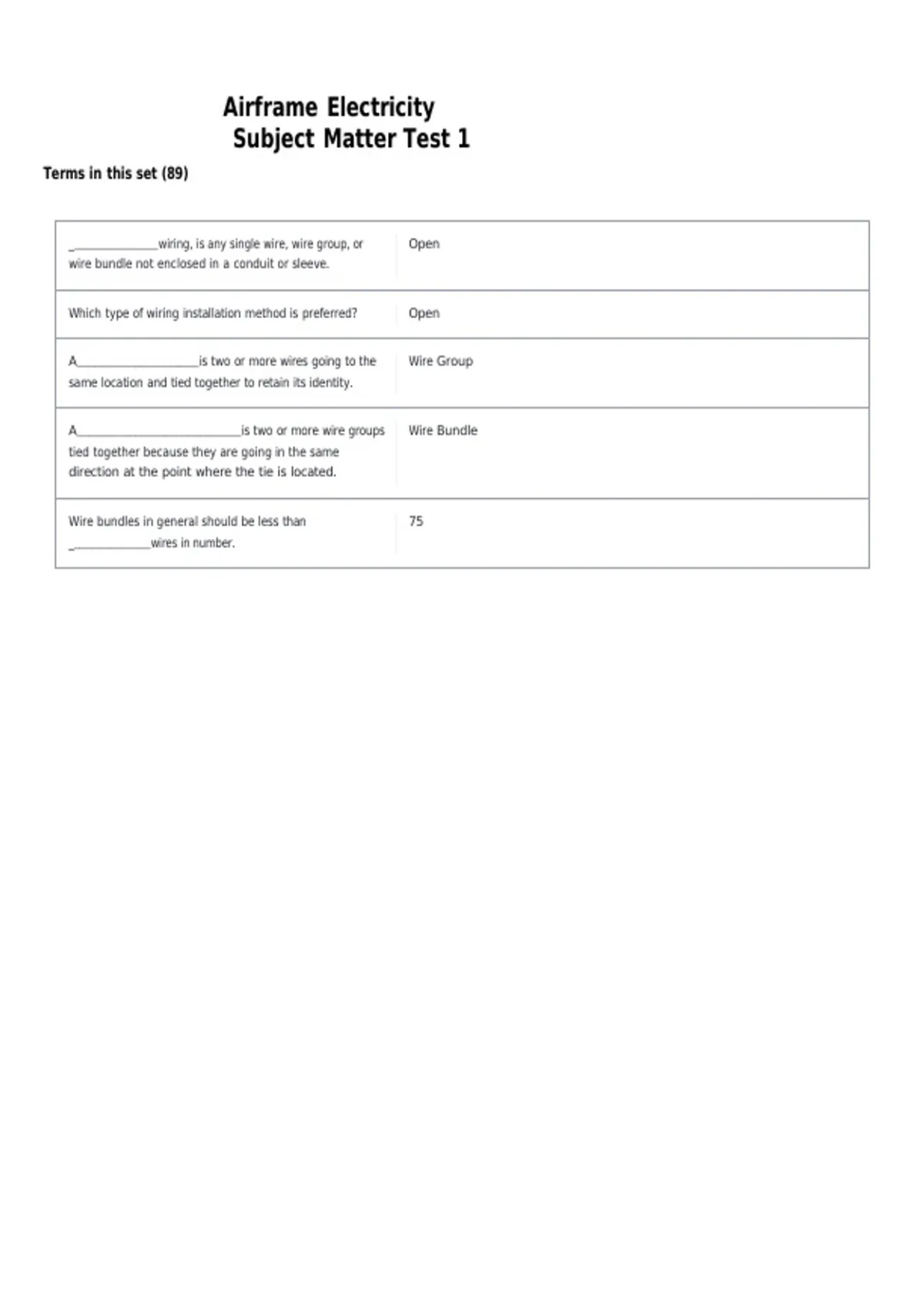

Airframe Electricity
Subject Matter Test 1
Terms in this set (89)
_______________wiring, is any single wire, wire group, or Open
wire bundle not enclosed in a conduit or sleeve.
Which type of wiring installation method is preferred? Open
A_____________________is two or more wires going to the Wire Group
same location and tied together to retain its identity.
A____________________________is two or more wire groups Wire Bundle
tied together because they are going in the same
direction at the point where the tie is located.
Wire bundles in general should be less than 75
______________wires in number.
, Wire bundles in general should be no larger than 1.5 to 2
______________inches in diameter.
State 3 means for organizing electrical wires into Tying, Single-cord lacing, Double-cord lacing
groups and bundles.
What are the two acceptable types of cords used for Nylon & Cotton
bundling wires together?
_____________________is a method of grouping or Tying
bundling wires together using individual loops.
_____________________is a method of grouping wires Lacing
together using a single piece of cord formed into several
interconnected loops.
What type of knots are used when performing single- Square Knot and Clove Hitch
cord lacing or tying?
What types of knots are used when performing double- Bowline-on-a-Bite and Square Knot
cord lacing?
AC 43.13-1B/2B Chapter _________________ is ________________________ data 11, acceptable
which can be used to find information for lacing and tying
electrical wires?
Name 3 areas in an aircraft where Nylon straps should not moving parts, vibration, high heat
be used.
After tying/lacing the wire groups and/or bundles 3/8
with cord, the square knot pigtails should be at
least__________________________________________of
an
inch in length.
Lacing is permitted anywhere in the aircraft? false
Nylon Tie Straps cannot be used in areas where the 120 degrees C
temperature is expected to exceed
____________________________________________
degrees
C.
Name 3 reasons/advantages of organizing wires into Ease of identification, installation, and maintenance
groups or bundles.
Cotton cords should be waxed for what purpose? Prevent mildew, moisture
Which knot do you start with, when tying wires together? Clove Hitch
What is the purpose of shielded electrical wire? EMI/RFI protection
AC 43.13-1B/2B is___________data. acceptable
