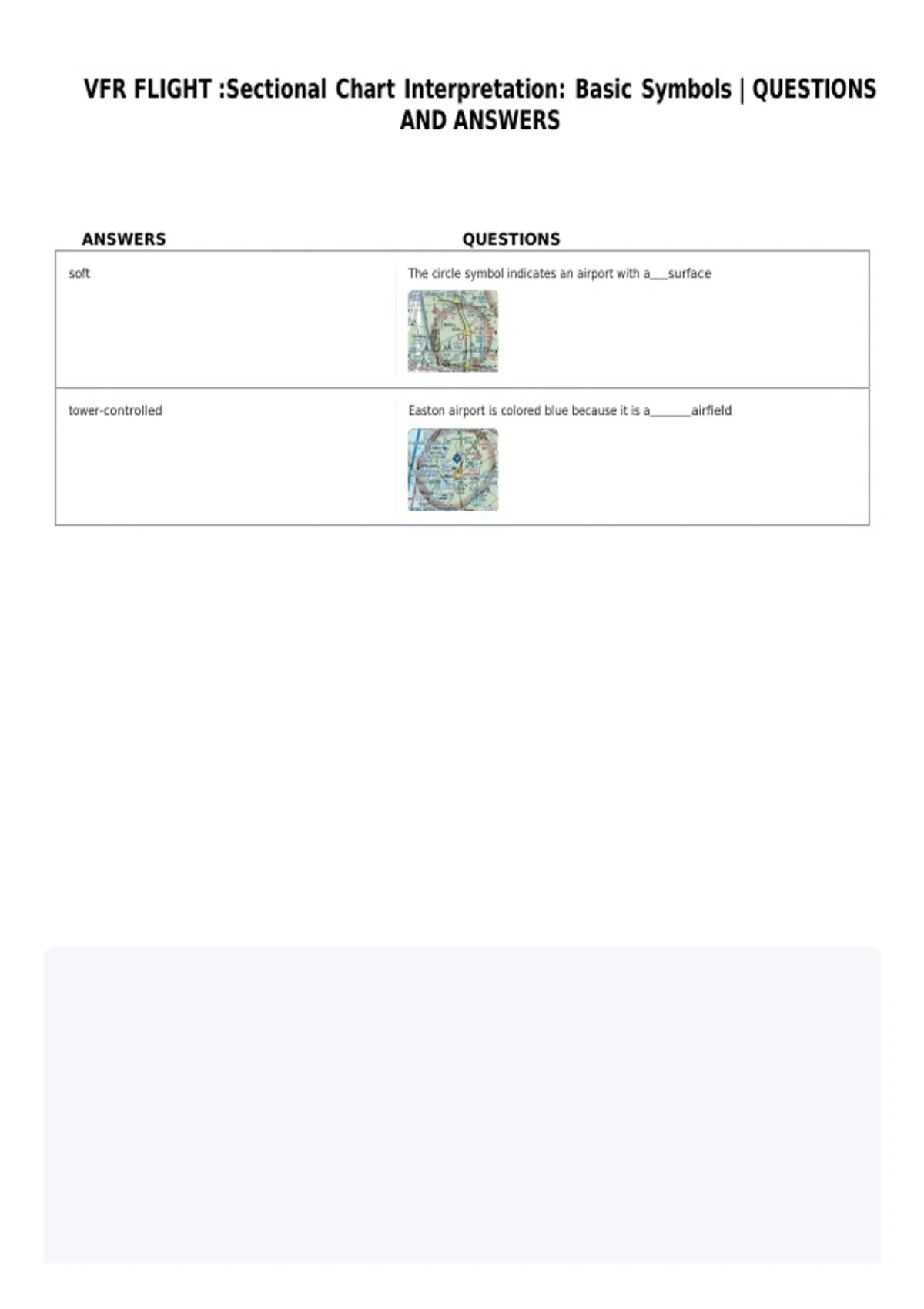

VFR FLIGHT :Sectional Chart Interpretation: Basic Symbols | QUESTIONS
AND ANSWERS
ANSWERS QUESTIONS
soft The circle symbol indicates an airport with a___surface
tower-controlled Easton airport is colored blue because it is a_______airfield
, D The dashed blue circle around this airfield indicates Class____airspace
non-tower Cape May County airfield is colored magenta to indicate it is a____airfield
[non-tower] / [tower-controlled]
restricted The blue hatched boundary immediately Southeast of Cambridge airport
indicates a___area
railroad track The sectional chart shows a____running through the small town of Barclay
B The airspace with a solid blue boundary and altitude limits of 4500 feet (floor)
and 10,000 feet (ceiling) is Class Airspace
C The airspace with a solid magenta boundary is Class____Airspace
644 Directly East of Hanover County Airport is a tower. It extends up to____feet MSL
JGG The three character airfield identifier for Williamsburg-Jamestown airport is __ __ __
