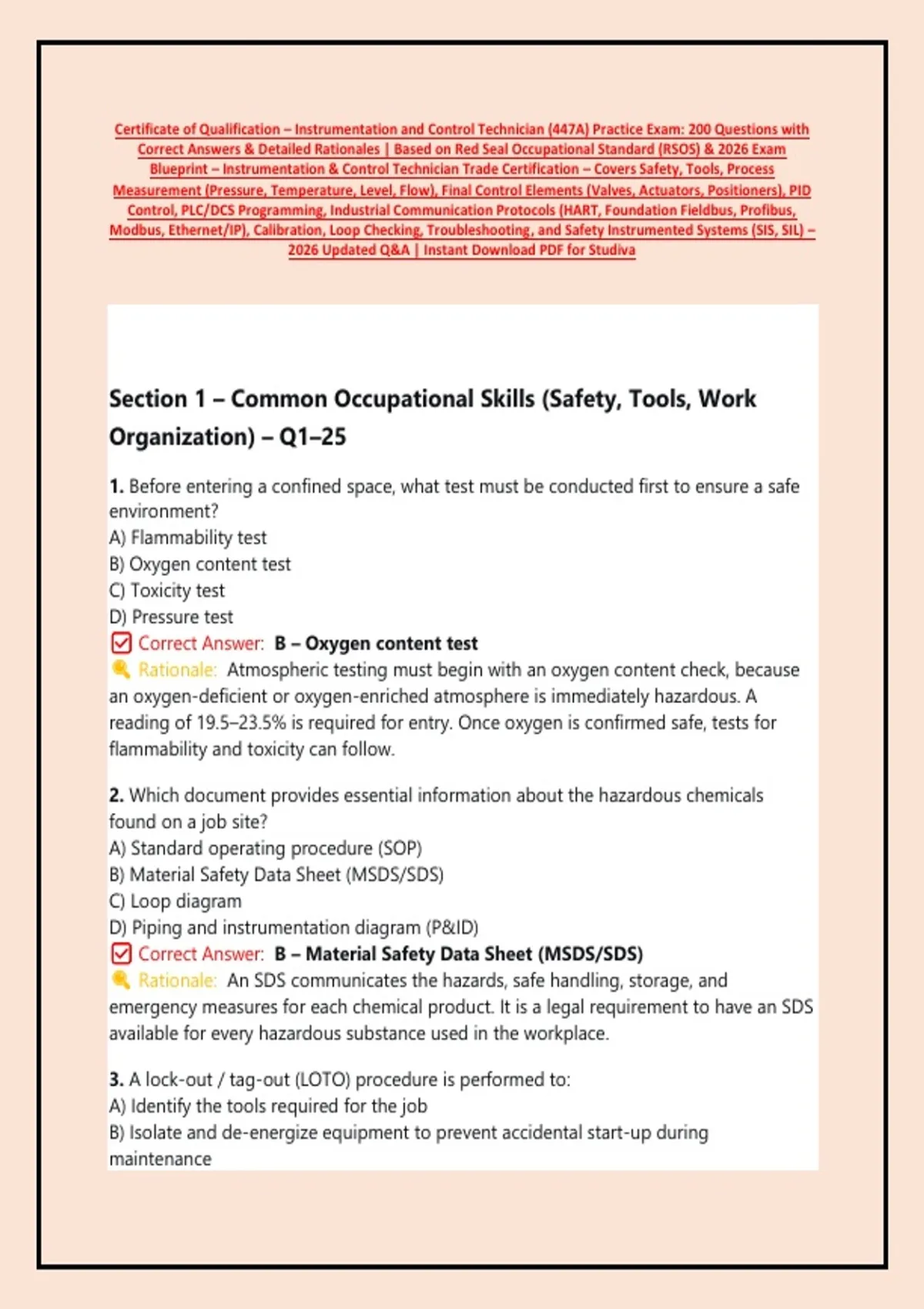

Certificate of Qualification – Instrumentation and Control Technician (447A) Practice Exam: 200 Questions with
Correct Answers & Detailed Rationales | Based on Red Seal Occupational Standard (RSOS) & 2026 Exam
Blueprint – Instrumentation & Control Technician Trade Certification – Covers Safety, Tools, Process
Measurement (Pressure, Temperature, Level, Flow), Final Control Elements (Valves, Actuators, Positioners), PID
Control, PLC/DCS Programming, Industrial Communication Protocols (HART, Foundation Fieldbus, Profibus,
Modbus, Ethernet/IP), Calibration, Loop Checking, Troubleshooting, and Safety Instrumented Systems (SIS, SIL) –
2026 Updated Q&A | Instant Download PDF for Studiva
Section 1 – Common Occupational Skills (Safety, Tools, Work
Organization) – Q1–25
1. Before entering a confined space, what test must be conducted first to ensure a safe
environment?
A) Flammability test
B) Oxygen content test
C) Toxicity test
D) Pressure test
✅ Correct Answer: B – Oxygen content test
🔍 Rationale: Atmospheric testing must begin with an oxygen content check, because
an oxygen-deficient or oxygen-enriched atmosphere is immediately hazardous. A
reading of 19.5–23.5% is required for entry. Once oxygen is confirmed safe, tests for
flammability and toxicity can follow.
2. Which document provides essential information about the hazardous chemicals
found on a job site?
A) Standard operating procedure (SOP)
B) Material Safety Data Sheet (MSDS/SDS)
C) Loop diagram
D) Piping and instrumentation diagram (P&ID)
✅ Correct Answer: B – Material Safety Data Sheet (MSDS/SDS)
🔍 Rationale: An SDS communicates the hazards, safe handling, storage, and
emergency measures for each chemical product. It is a legal requirement to have an SDS
available for every hazardous substance used in the workplace.
3. A lock-out / tag-out (LOTO) procedure is performed to:
A) Identify the tools required for the job
B) Isolate and de-energize equipment to prevent accidental start-up during
maintenance
,C) Document the daily work schedule
D) Test the calibration of a transmitter
✅ Correct Answer: B – Isolate and de-energize equipment to prevent accidental
start-up during maintenance
🔍 Rationale: LOTO is a formal procedure that ensures all energy sources (electrical,
mechanical, hydraulic, pneumatic, chemical, thermal) are isolated and locked before
anyone works on equipment. It is one of the most critical safety practices in industrial
settings.
4. Who may be allowed to remove a worker’s personal lock or tag from a valve, switch,
or piece of equipment without proper documentation and approval?
A) An inspector
B) No one
C) Any supervisor
D) Project manager
✅ Correct Answer: B – No one
🔍 Rationale: Only the worker who applied a lock or tag may remove it, unless that
worker is unavailable and a strict, documented procedure is followed (e.g., after a
verified absence). Unauthorised removal creates a serious risk of injury.
5. Which type of gasket is most suitable for high-pressure systems?
A) Rubber gasket
B) Metal ring joint gasket
C) Spiral wound gasket
D) Flat non-asbestos gasket
✅ Correct Answer: B – Metal ring joint gasket
🔍 Rationale: Metal ring joint gaskets (e.g., RTJ) are designed for high-pressure and
high-temperature applications. They are commonly used in API flanges and provide a
reliable seal under extreme conditions.
6. What is the effect of increasing the carbon content in steel?
A) Increases ductility
B) Increases hardness
C) Decreases tensile strength
D) Decreases wear resistance
✅ Correct Answer: B – Increases hardness
🔍 Rationale: Carbon is the primary hardening element in steel. As carbon content
rises, the steel becomes harder and stronger, but its ductility and weldability generally
decrease.
,7. When a ferrous alloy is required for low-temperature service (e.g., –50°C), which
material property becomes the primary design criterion?
A) Tensile strength
B) Impact toughness
C) Hardness
D) Electrical conductivity
✅ Correct Answer: B – Impact toughness
🔍 Rationale: At low temperatures, many steels undergo a ductile-to-brittle transition.
Impact toughness (measured by Charpy V-notch tests) determines whether a material
can withstand shock loading without fracturing.
8. For most tube benders, a 90-degree bend adds approximately how much to the total
tube length?
A) ½ tube diameter
B) 1 tube diameter
C) 1½ tube diameters
D) 2 tube diameters
✅ Correct Answer: C – 1½ tube diameters
🔍 Rationale: A common rule of thumb in tube bending is that a 90° bend consumes
about 1.5 times the tube diameter in additional length. This is used to calculate the
blank length required before bending.
9. Which thread sealant is most suitable for service temperatures of 500–700 °F (260–
370 °C)?
A) PTFE tape
B) Pipe dope (anaerobic)
C) Graphite paste
D) Lithium grease
✅ Correct Answer: C – Graphite paste
🔍 Rationale: Standard PTFE tape and anaerobic sealants degrade at high
temperatures. Graphite-based pastes are formulated for high-temperature applications
and provide reliable sealing on threaded connections in steam and high-temperature
fluid service.
10. In modulating control, what is the first step after the controlled variable is
measured?
A) Produce an output signal to the final control element
B) Compute the error between the controlled variable and the setpoint
C) Activate the alarm if the variable exceeds a limit
D) Log the variable into the historian
✅ Correct Answer: B – Compute the error between the controlled variable and the
, setpoint
🔍 Rationale: Modulating control continuously compares the measured process
variable (PV) with the desired setpoint (SP). The difference (error = SP – PV) is then used
by the controller to determine the corrective output signal. This is the core of
closed-loop control.
11. Which drawing provides a detailed representation of the physical arrangement and
connections of instruments and tubing for a specific instrument?
A) P&ID
B) Loop diagram
C) Detail drawing
D) Plot plan
✅ Correct Answer: C – Detail drawing
🔍 Rationale: A detail drawing (or installation detail) shows exactly how a specific
instrument or device is to be installed, including mounting, connections, tubing routing,
and supports. It is more specific than a loop diagram or P&ID.
12. Which of the following is NOT a typical section of a Material Safety Data Sheet
(SDS)?
A) First-aid measures
B) Disposal contractors
C) Handling and storage
D) Exposure controls / personal protection
✅ Correct Answer: B – Disposal contractors
🔍 Rationale: An SDS has 16 mandatory sections, including identification, hazards,
composition, first-aid, fire-fighting, accidental release, handling and storage, exposure
controls, physical and chemical properties, stability and reactivity, toxicological
information, ecological information, disposal considerations, transport information,
regulatory information, and other information. The names of specific disposal
contractors are not part of an SDS.
13. A system installed to provide protection of equipment from line-to-ground fault
damage is called a:
A) Surge arrester
B) Ground-fault circuit interrupter (GFCI)
C) Lightning rod
D) Isolation transformer
✅ Correct Answer: B – Ground-fault circuit interrupter (GFCI)
🔍 Rationale: A GFCI monitors the current balance between the hot and neutral
conductors. If a ground fault (leakage) is detected, it trips the circuit, protecting
