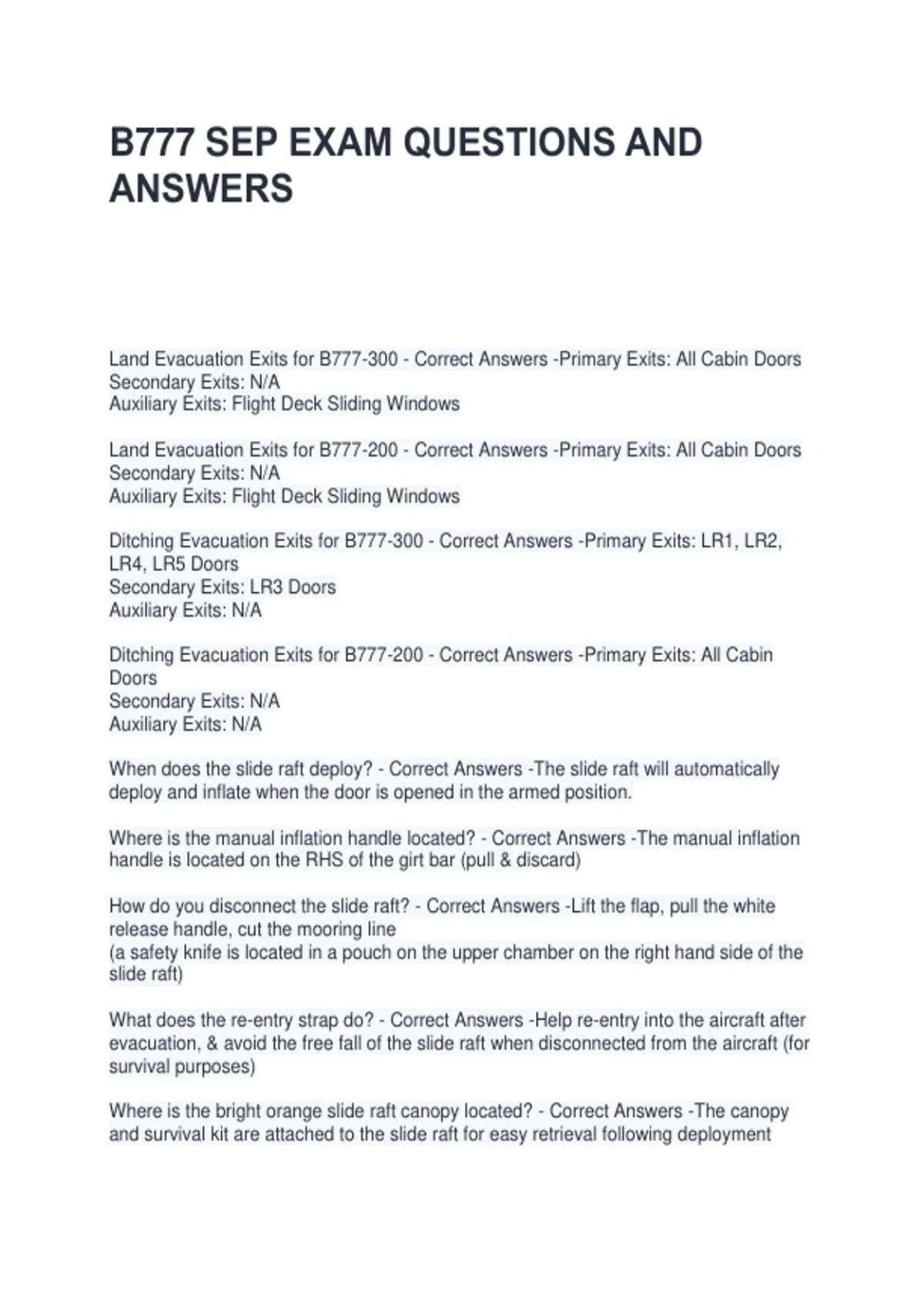

B777 SEP EXAM QUESTIONS AND
ANSWERS
Land Evacuation Exits for B777-300 - Correct Answers -Primary Exits: All Cabin Doors
Secondary Exits: N/A
Auxiliary Exits: Flight Deck Sliding Windows
Land Evacuation Exits for B777-200 - Correct Answers -Primary Exits: All Cabin Doors
Secondary Exits: N/A
Auxiliary Exits: Flight Deck Sliding Windows
Ditching Evacuation Exits for B777-300 - Correct Answers -Primary Exits: LR1, LR2,
LR4, LR5 Doors
Secondary Exits: LR3 Doors
Auxiliary Exits: N/A
Ditching Evacuation Exits for B777-200 - Correct Answers -Primary Exits: All Cabin
Doors
Secondary Exits: N/A
Auxiliary Exits: N/A
When does the slide raft deploy? - Correct Answers -The slide raft will automatically
deploy and inflate when the door is opened in the armed position.
Where is the manual inflation handle located? - Correct Answers -The manual inflation
handle is located on the RHS of the girt bar (pull & discard)
How do you disconnect the slide raft? - Correct Answers -Lift the flap, pull the white
release handle, cut the mooring line
(a safety knife is located in a pouch on the upper chamber on the right hand side of the
slide raft)
What does the re-entry strap do? - Correct Answers -Help re-entry into the aircraft after
evacuation, & avoid the free fall of the slide raft when disconnected from the aircraft (for
survival purposes)
Where is the bright orange slide raft canopy located? - Correct Answers -The canopy
and survival kit are attached to the slide raft for easy retrieval following deployment
, Where is the slide raft Manual Inflation Handle located? - Correct Answers -The upper
aft section of the door frame
If the escape slide fails to inflate automatically... (What is not visible) - Correct Answers
-The barber pole is not visible
To manually inflate the slide raft... (do what?) (2) - Correct Answers -1. Pull down the
cover to access the red manual inflation handle
2. Pull the red manual inflation handle
Life Line Operation... (4) - Correct Answers -1. Ensure the door is in the disarmed
position prior to opening
2. Remove the life line from the upper section of the door frame
3. Attach the life line to the hook - the life line attachment point- on the leading edge of
the wing, with the assistance of the ABP.
4. Direct passengers to hold onto the life line, walk out onto the wing and board the
nearest slide raft.
The Emergency Evacuation System provides a... - Correct Answers -The Emergency
Evacuation System provides a visual and audio alert for the Cabin Crew to initiate the
evacuation of the aircraft
The Emergency Evacuation switch is located: - Correct Answers --On the Flight Deck
centre console
-On the Crew Switch Panel (CSP) at each Cabin Crew station above the jump seat
When the evacuation signalling system is activated either from the Flight Deck or the
CSP, the following indications are observed at all stations Crew Switch Panels (CSPs): -
Correct Answers --Flashing red EVAC light
-Audio Alert
The emergency evacuation signalling system can be activated from the Crew Switch
Panel (CSP) by.. - Correct Answers -The emergency evacuation signalling system can
be activated from the Crew Switch Panel (CSP) by lifting the plastic guard and pressing
the EVAC COMMAND switch once. A red light will illuminate only on the EVAC
COMMAND switch pressed.
Why is the CSP EVAC COMMAND switch guarded? - Correct Answers -The CSP
EVAC COMMAND switch is guarded to prevent inadvertent operation
What happens when the EVAC COMMAND is pressed with the flight deck switch is in
the OFF position? - Correct Answers -When pressed, with the Flight Deck switch in the
OFF position, activates the evacuation signal in the Flight Deck and at all Cabin Crew
stations.
