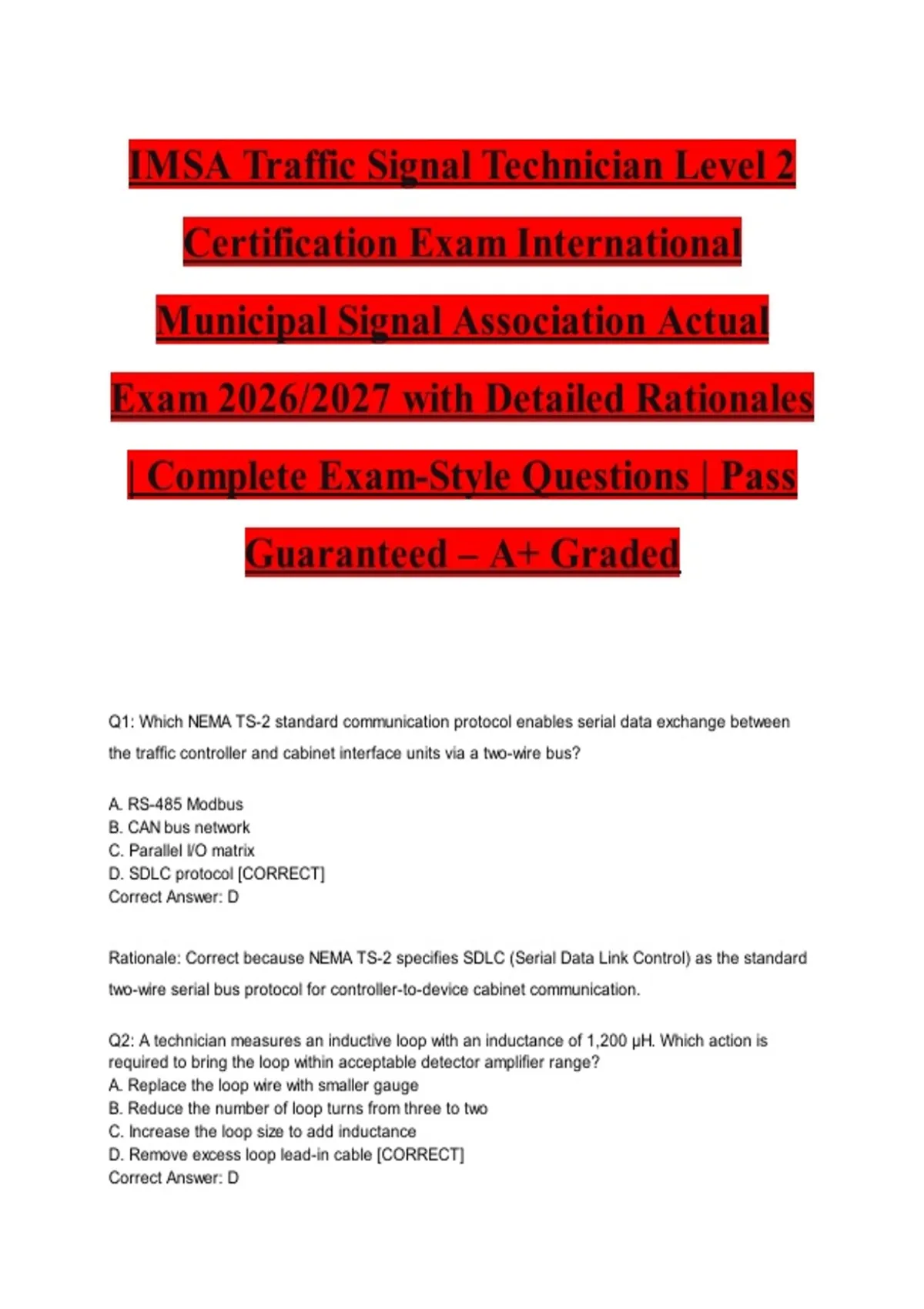

IMSA Traffic Signal Technician Level 2
Certification Exam International
Municipal Signal Association Actual
Exam 2026/2027 with Detailed Rationales
| Complete Exam-Style Questions | Pass
Guaranteed – A+ Graded
Q1: Which NEMA TS-2 standard communication protocol enables serial data exchange between
the traffic controller and cabinet interface units via a two-wire bus?
A. RS-485 Modbus
B. CAN bus network
C. Parallel I/O matrix
D. SDLC protocol [CORRECT]
Correct Answer: D
Rationale: Correct because NEMA TS-2 specifies SDLC (Serial Data Link Control) as the standard
two-wire serial bus protocol for controller-to-device cabinet communication.
Q2: A technician measures an inductive loop with an inductance of 1,200 µH. Which action is
required to bring the loop within acceptable detector amplifier range?
A. Replace the loop wire with smaller gauge
B. Reduce the number of loop turns from three to two
C. Increase the loop size to add inductance
D. Remove excess loop lead-in cable [CORRECT]
Correct Answer: D
,Rationale: Correct because excessive lead-in cable increases inductance beyond the 50–700 µH
range, and removing excess cable is the standard method to reduce inductance to acceptable
levels.
Q3: During routine maintenance, an MMU displays a red indication fault on Phase 2. Which
condition does the malfunction management unit detect?
A. Loss of AC voltage to the signal head [CORRECT]
B. Excessive current draw from the load switch
C. A conflicting green indication on Phase 6
D. Normal flash operation activated
Correct Answer: A
Rationale: Correct because the MMU monitors AC voltage presence at signal heads, and a red
indication fault typically indicates loss of voltage to the red LED or incandescent circuit.
Q4: What is the minimum luminous intensity requirement for a 12-inch red LED traffic signal head
per ITE specifications?
A. 100 candela
B. 150 candela
C. 200 candela [CORRECT]
D. 400 candela
Correct Answer: C
Rationale: Correct because ITE specifications establish a minimum luminous intensity of 200
candela for 12-inch red LED signal heads to ensure adequate visibility.
Q5: A loop detector amplifier continuously shows a constant call with no vehicle present. The
technician observes the front panel and notices the tuned frequency has drifted by 15 kHz from the
baseline. What is the most likely cause?
A. Broken loop wire creating an open circuit
B. Moisture intrusion into the sawcut changing the loop inductance [CORRECT]
C. A disconnected detector amplifier power supply
D. An incorrectly set sensitivity potentiometer
Correct Answer: B
Rationale: Correct because moisture intrusion into the sawcut sealant alters the dielectric constant
around the loop, changing inductance and causing frequency drift that produces false calls.
Q6: An emergency vehicle preemption system activates at an intersection operating in coordinated
mode. Which statement describes standard priority operation?
A. The intersection immediately returns to coordinated timing without dwell
B. The controller extends the current phase until the preempt call clears
, C. The system ignores the preempt if a barrier is active
D. Railroad preemption always overrides emergency vehicle preemption [CORRECT]
Correct Answer: D
Rationale: Correct because standard priority hierarchy places railroad preemption above all other
preemption and priority calls due to safety requirements at grade crossings.
Q7: Under the MUTCD, which warrant is based on the interruption of continuous traffic flow by
side-street traffic volumes?
A. Warrant 1: Eight-Hour Vehicular Volume [CORRECT]
B. Warrant 4: Pedestrian Volume
C. Warrant 5: School Crossing
D. Warrant 8: Roadway Network
Correct Answer: A
Rationale: Correct because Warrant 1 evaluates eight-hour vehicular volume on the major street
and intersecting traffic volumes to determine signal need based on flow interruption.
Q8: A coordinated signal system operates on a 90-second cycle length with a master offset of 30
seconds. A local controller consistently enters its coordinated phases 5 seconds late relative to the
master. Which adjustment corrects the local timing?
A. Increase the local cycle length to 95 seconds
B. Decrease the master cycle length to 85 seconds
C. Increase the local offset by 5 seconds
D. Decrease the local offset by 5 seconds [CORRECT]
Correct Answer: D
Rationale: Correct because decreasing the local offset by 5 seconds advances the local
controller's cycle start to synchronize with the master reference point.
Q9: Which electrical component in a traffic signal cabinet uses a coil to create a magnetic field that
mechanically switches 120VAC contacts to the signal heads?
A. Solid-state relay
B. Silicon-controlled rectifier
C. Transistor array
D. Electromechanical relay [CORRECT]
Correct Answer: D
Rationale: Correct because an electromechanical relay uses a magnetic coil to physically move
contacts, making it the standard device for switching AC power to signal heads in older and hybrid
cabinets.
