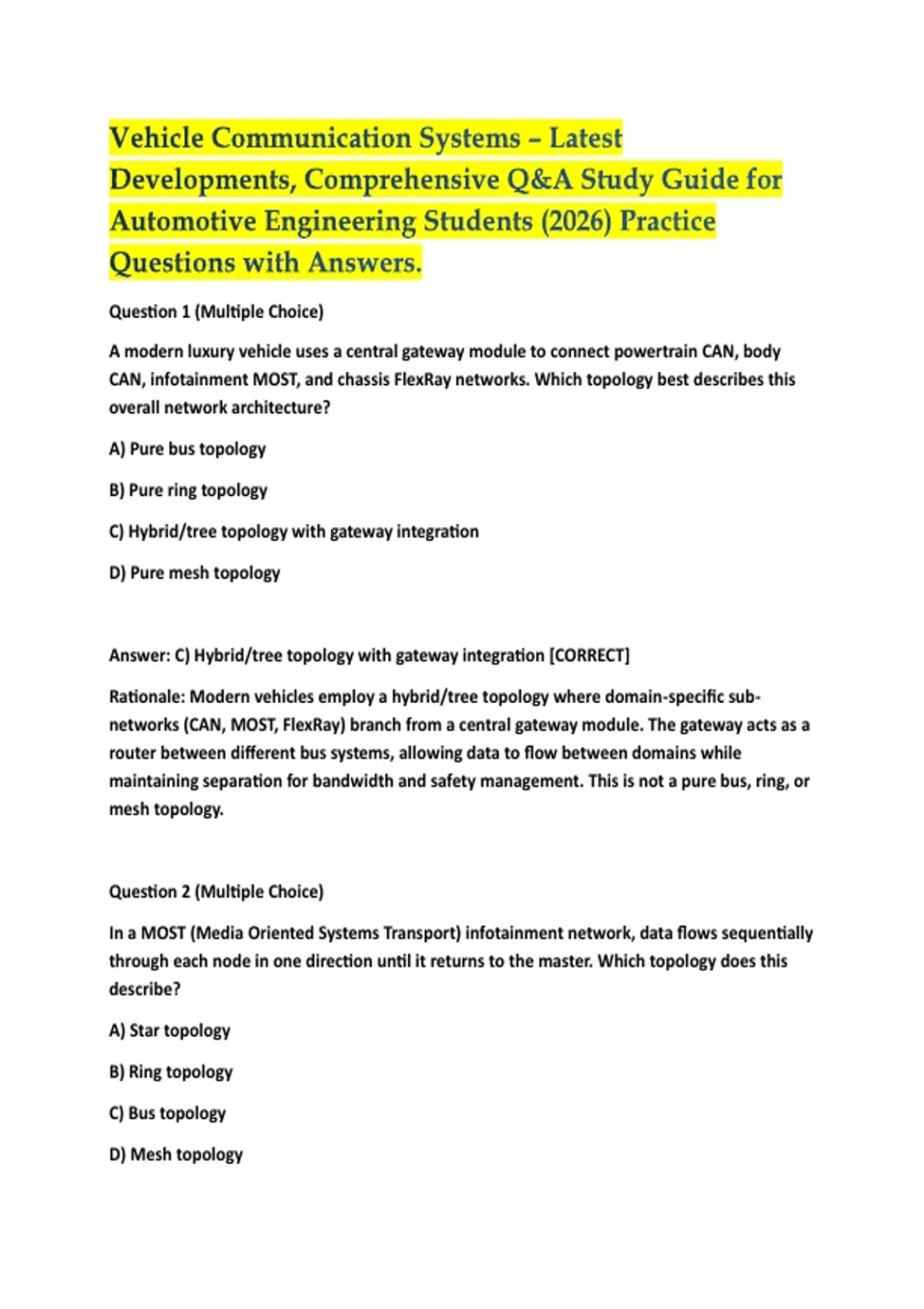

Vehicle Communication Systems – Latest
Developments, Comprehensive Q&A Study Guide for
Automotive Engineering Students (2026) Practice
Questions with Answers.
Question 1 (Multiple Choice)
A modern luxury vehicle uses a central gateway module to connect powertrain CAN, body
CAN, infotainment MOST, and chassis FlexRay networks. Which topology best describes this
overall network architecture?
A) Pure bus topology
B) Pure ring topology
C) Hybrid/tree topology with gateway integration
D) Pure mesh topology
Answer: C) Hybrid/tree topology with gateway integration [CORRECT]
Rationale: Modern vehicles employ a hybrid/tree topology where domain-specific sub-
networks (CAN, MOST, FlexRay) branch from a central gateway module. The gateway acts as a
router between different bus systems, allowing data to flow between domains while
maintaining separation for bandwidth and safety management. This is not a pure bus, ring, or
mesh topology.
Question 2 (Multiple Choice)
In a MOST (Media Oriented Systems Transport) infotainment network, data flows sequentially
through each node in one direction until it returns to the master. Which topology does this
describe?
A) Star topology
B) Ring topology
C) Bus topology
D) Mesh topology
,Answer: B) Ring topology [CORRECT]
Rationale: MOST networks use a fiber optic ring topology where each node receives data from
the previous node and transmits to the next node in a closed loop. If any node or fiber
connection fails, the entire ring breaks and communication ceases, which is characteristic of
ring topology behavior.
--- Sub-Topic: OSI Model Layers and Automotive Applications (2 questions) ---
Question 3 (Multiple Choice)
In the OSI model, which layer is responsible for CAN bus message arbitration and frame
formatting?
A) Physical Layer (Layer 1)
B) Data Link Layer (Layer 2)
C) Network Layer (Layer 3)
D) Transport Layer (Layer 4)
Answer: B) Data Link Layer (Layer 2) [CORRECT]
Rationale: The Data Link Layer handles message framing, arbitration (CSMA/CA with non-
destructive arbitration), error detection (CRC), and acknowledgment in CAN communication.
The Physical Layer (Layer 1) only defines voltage levels and electrical characteristics, while
Layers 3-4 are handled by higher-level protocols like ISO-TP (Transport Protocol) when
needed.
Question 4 (SATA - Select All That Apply)
Which of the following correctly describe the relationship between the OSI model and
automotive communication protocols? (Select ALL that apply)
A) CAN bus implements Layer 1 (Physical) and Layer 2 (Data Link) natively
B) UDS (Unified Diagnostic Services) operates at Layer 7 (Application)
,C) LIN bus requires a separate Transport Layer protocol for multi-frame messages
D) Automotive Ethernet (100BASE-T1) implements Layers 1 and 2 of the OSI model
E) OBD-II Mode $01 requests operate exclusively at the Physical Layer
Answers: A, B, D [CORRECT]
Rationale:
- A is correct: CAN bus natively implements Physical and Data Link layers per ISO 11898.
- B is correct: UDS (ISO 14229) is an application-layer diagnostic protocol.
- C is incorrect: LIN does not natively support multi-frame transport; it uses single-frame
messages only.
- D is correct: 100BASE-T1 implements Physical (single twisted pair signaling) and Data Link
(MAC) layers.
- E is incorrect: OBD-II Mode $01 requests operate at the Application Layer (SAE J1979), not
Physical Layer.
--- Sub-Topic: Data Transmission Concepts (2 questions) ---
Question 5 (Multiple Choice)
A high-speed CAN bus is operating at 500 kbps with a bus load of 40%. If the network is
upgraded to CAN FD with a data phase of 5 Mbps while maintaining the same arbitration
phase at 500 kbps, what is the primary benefit regarding latency?
A) Arbitration latency increases due to higher complexity
B) Message transmission time decreases significantly for large payloads
C) Bus load increases proportionally to the data rate
D) Termination resistance must be reduced to maintain signal integrity
Answer: B) Message transmission time decreases significantly for large payloads [CORRECT]
, Rationale: CAN FD increases the data phase bit rate (up to 8 Mbps) while keeping the
arbitration phase at standard CAN speeds (up to 1 Mbps) for compatibility. This means the
time to transmit the data payload is reduced proportionally to the data rate increase,
significantly decreasing overall message latency for larger payloads while maintaining
arbitration timing.
Question 6 (Multiple Choice)
Which term describes the maximum rate at which data can be transferred across a network
medium, typically measured in bits per second?
A) Latency
B) Baud rate
C) Bandwidth
D) Throughput
Answer: C) Bandwidth [CORRECT]
Rationale: Bandwidth refers to the maximum data transfer capacity of a network medium,
measured in bits per second (bps). Baud rate refers to symbol rate (symbols per second),
which may differ from bit rate in advanced modulation schemes. Latency is the delay before
transmission begins, and throughput is the actual achieved data rate.
--- Sub-Topic: Gateway Modules and Network Architecture (2 questions) ---
Question 7 (Multiple Choice)
A vehicle gateway module receives a diagnostic request from the OBD-II port on the high-
speed CAN bus and must forward it to an ECU on the low-speed fault-tolerant CAN bus. What
is the primary function of the gateway in this scenario?
A) Amplify the signal voltage from 5V to 12V
B) Translate between different physical layer protocols and manage message routing
C) Act as a termination resistor for both buses
