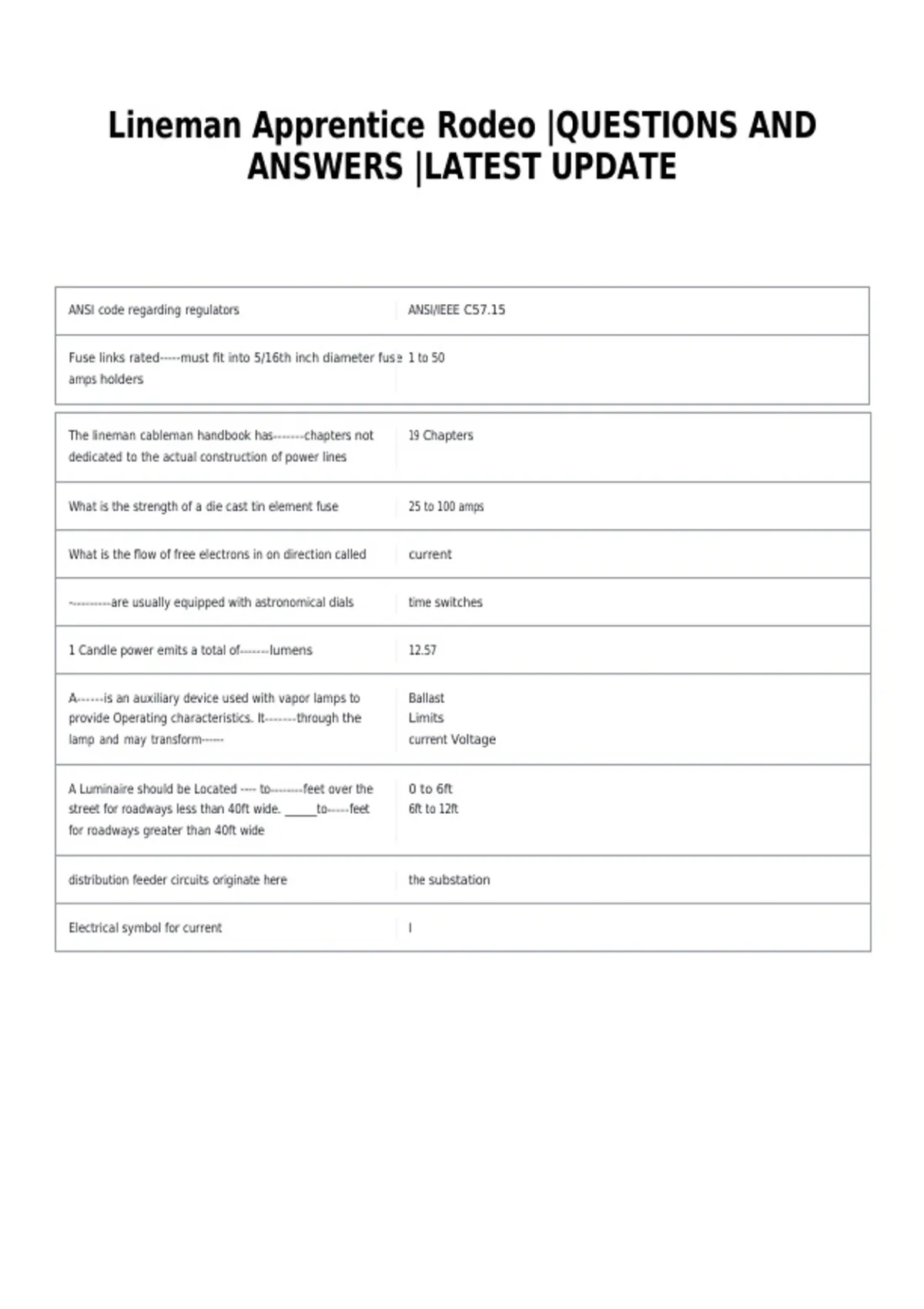

Lineman Apprentice Rodeo |QUESTIONS AND
ANSWERS |LATEST UPDATE
ANSI code regarding regulators ANSI/IEEE C57.15
Fuse links rated-----must fit into 5/16th inch diameter fuse 1 to 50
amps holders
The lineman cableman handbook has-------chapters not 19 Chapters
dedicated to the actual construction of power lines
What is the strength of a die cast tin element fuse 25 to 100 amps
What is the flow of free electrons in on direction called current
----------are usually equipped with astronomical dials time switches
1 Candle power emits a total of-------lumens 12.57
A------is an auxiliary device used with vapor lamps to Ballast
provide Operating characteristics. It-------through the Limits
lamp and may transform------ current Voltage
A Luminaire should be Located ---- to--------feet over the 0 to 6ft
street for roadways less than 40ft wide. ______to-----feet 6ft to 12ft
for roadways greater than 40ft wide
distribution feeder circuits originate here the substation
Electrical symbol for current I
,purpose of switches on a feeder circuits redirect power flows for load balancing or sectionalizing
where is the only place voltage is raised at Transmission substation outside of the generation station
what does SCADA stand for Supervisory Control and Data Acquisition
--------Are used to eliminate guys, enhance the steel poles
environment and solve right of way issues
All Gaseous induction lamps have a------------resistance Negative (resistance decreases, current increases)
Characteristic
Current limiters in gaseous - discharge lamps are called Ballasts
which electrical discharge lamp has a special Ballasts High Pressure sodium
that is not interchangeable with other electrical
discharge lamps
transparent material which passes light rays through it but refractor
bends them
A surface which stops light ray and redirects them reflector
A primary neutral connector must be grounded at 1/4 of a mile
intervals not to exceed
the requirements of a good ground are -----,------,----- low resistance path to earth
-,------, and ------- clean connections
tight connections
connectors made at proper points
adequate current carrying capacity
per the NESC, all metal poles, concrete poles, and 8ft
meatal u guards/ conduits must be grounded to a
minimum height of feet above the ground
types of electrical discharge lamps ------,------,-----,---- mercury vapor
--, and ------- metal halide
low pressure sodium
high pressure
sodium fluorescent
------------must be used to join conductors under tension full tension splices
Grounded static wire and neutral wire for primary substations
distribution circuits originate at
clean dry---------rope is an insulator. all other ropes are polypropylene
conductors
, opposition to current flow on a circuit is called impedance
the difference in voltage between periods of load and no voltage regulation
load on the system is called
travelling grounds are placed at ------- and ----- tensioner and pulling
order of operation for transmission tower erection---------,- clearing of right of way
-------,------,-----,and------ installing footings
grounding tower bases
erecting towers
insulator installation
a tap changer changes the number of coils in the -------- secondary coil
of a transformer
Balancing load, increasing feeder size, applying tap voltage regulation
changing transformers, installing capacitors and installing
voltage regulators are all options of
The first combined impact resisting and electrical 1952
insulating hard hat was introduced in
What is electron theory? All matter is composed of atoms
What is electrical pressure? voltage
Electrical symbol for voltage E
Transformer losses are classified as either _______ or________. No load
losses Full
load losses
A_______is used in a circuit as a current rectifier diode semiconductor
A diode semiconductor that can be used as a voltage zener diode
reference?
______are used in converter stations to convert AC to DC Thyristors
and DC to AC
Bulk of energy generated in the US comes from ________ Fossil fired generator stations
Most electrical energy is generated between _____ and ______ 13,200 to 24,000v
volts.
_____generation stations usually provide peaking power or combustion turbine
emergency power
