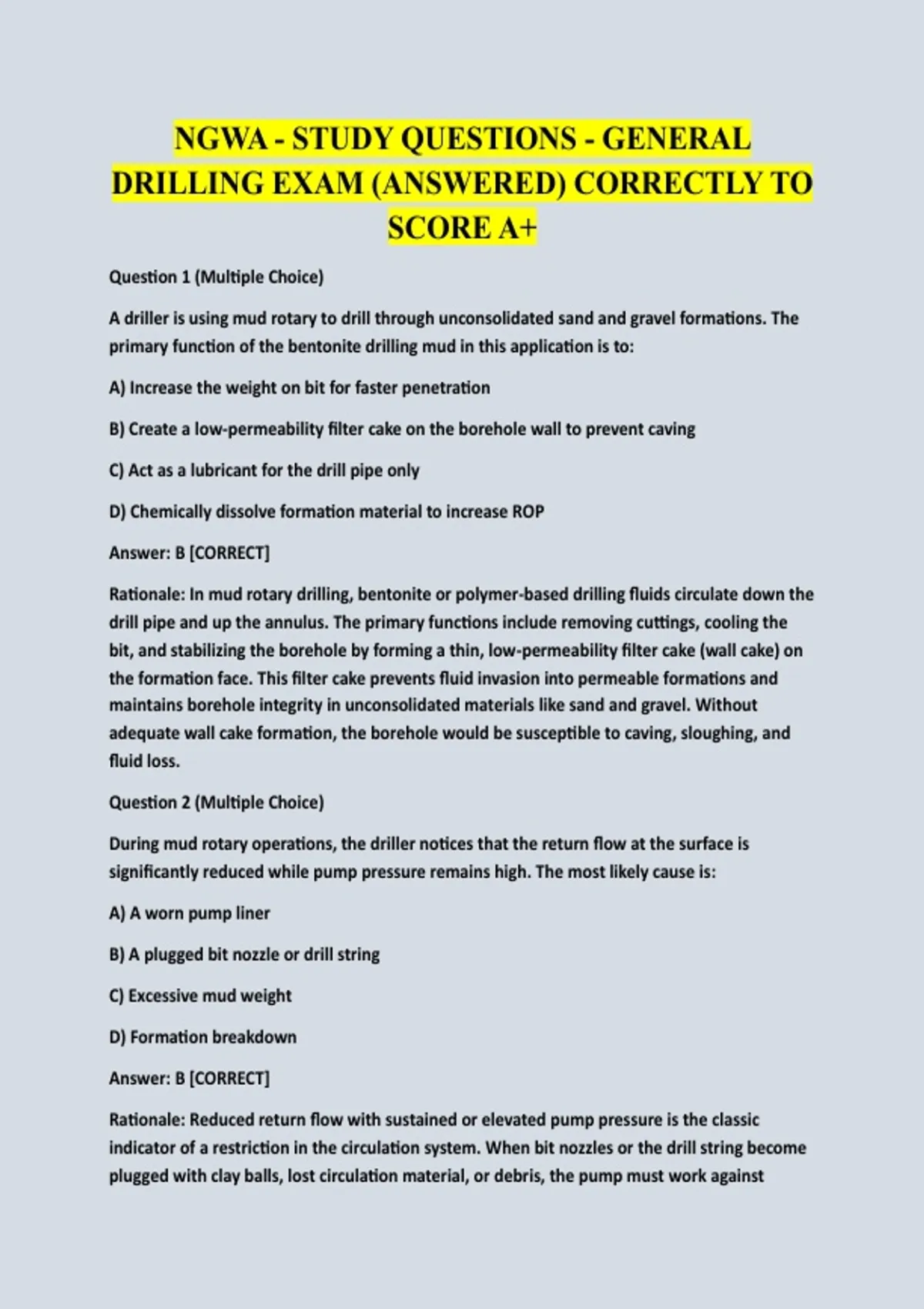

NGWA - STUDY QUESTIONS - GENERAL
DRILLING EXAM (ANSWERED) CORRECTLY TO
SCORE A+
Question 1 (Multiple Choice)
A driller is using mud rotary to drill through unconsolidated sand and gravel formations. The
primary function of the bentonite drilling mud in this application is to:
A) Increase the weight on bit for faster penetration
B) Create a low-permeability filter cake on the borehole wall to prevent caving
C) Act as a lubricant for the drill pipe only
D) Chemically dissolve formation material to increase ROP
Answer: B [CORRECT]
Rationale: In mud rotary drilling, bentonite or polymer-based drilling fluids circulate down the
drill pipe and up the annulus. The primary functions include removing cuttings, cooling the
bit, and stabilizing the borehole by forming a thin, low-permeability filter cake (wall cake) on
the formation face. This filter cake prevents fluid invasion into permeable formations and
maintains borehole integrity in unconsolidated materials like sand and gravel. Without
adequate wall cake formation, the borehole would be susceptible to caving, sloughing, and
fluid loss.
Question 2 (Multiple Choice)
During mud rotary operations, the driller notices that the return flow at the surface is
significantly reduced while pump pressure remains high. The most likely cause is:
A) A worn pump liner
B) A plugged bit nozzle or drill string
C) Excessive mud weight
D) Formation breakdown
Answer: B [CORRECT]
Rationale: Reduced return flow with sustained or elevated pump pressure is the classic
indicator of a restriction in the circulation system. When bit nozzles or the drill string become
plugged with clay balls, lost circulation material, or debris, the pump must work against
,increased backpressure while less fluid reaches the annulus. This is a critical safety concern
because it can lead to stuck pipe or loss of hydrostatic pressure. The driller should
immediately stop pumping and attempt to clear the obstruction before resuming operations.
Question 3 (Select All That Apply)
Which of the following are essential components of a typical mud rotary drilling system?
A) Mud pump
B) Shale shaker or desander
C) Swivel and kelly
D) Downhole hammer
E) Mud pit or mixing system
Answer: A, B, C, E [CORRECT]
Rationale: A complete mud rotary drilling system requires: (A) a mud pump to circulate
drilling fluid; (B) solids control equipment (shale shaker, desander, desilter) to remove cuttings
and maintain fluid properties; (C) a swivel and kelly (or top-head drive) to transmit rotation
and allow fluid passage to the drill string; and (E) mud pits or a mixing system to prepare,
store, and condition the drilling fluid. A downhole hammer (D) is used in air rotary or
percussion drilling, not conventional mud rotary. These components work together to
maintain continuous circulation, which is the defining characteristic of mud rotary drilling.
Question 4 (Calculation)
A mud rotary rig is drilling a 12-inch borehole at a rate of 15 feet per hour. The annular
velocity required to effectively transport cuttings to the surface is 120 feet per minute.
Calculate the minimum required pump flow rate in gallons per minute (GPM) to achieve this
annular velocity. Assume the drill pipe OD is 4.5 inches.
Given:
Borehole diameter = 12 inches
Drill pipe OD = 4.5 inches
Required annular velocity = 120 ft/min
Formula: Flow rate (GPM) = Annular Area (ft²) × Annular Velocity (ft/min) × 7.48 gal/ft³
Answer: 785 GPM [CORRECT]
,Rationale:
Step 1: Calculate annular cross-sectional area
Annular area = π/4 × (Dh² - Dp²)
Dh = 12 in = 1.0 ft; Dp = 4.5 in = 0.375 ft
Annular area = π/4 × (1.0² - 0.375²) = π/4 × (1.0 - 0.1406) = π/4 × 0.8594 = 0.675 ft²
Step 2: Calculate required flow rate
Flow rate = 0.675 ft² × 120 ft/min × 7.48 gal/ft³
Flow rate = 0.675 × 120 × 7.48 = 606.48 GPM
Correction note: Using standard industry calculation with annular area in square inches
converted properly:
Annular area = π/4 × (12² - 4.5²) = π/4 × (144 - 20.25) = π/4 × 123.75 = 97.13 in² = 0.6745 ft²
Flow rate = 0.6745 ft² × 120 ft/min × 7.48 gal/ft³ = 606 GPM
However, using the common simplified formula for annular velocity:
AV (ft/min) = (24.5 × Q) / (Dh² - Dp²)
120 = (24.5 × Q) / (144 - 20.25)
120 = 24.5Q / 123.75
Q = (120 × 123.75) / 24.5 = 606 GPM
Practical Field Consideration: In practice, drillers typically add a 20-30% safety factor to
account for fluid bypass, pump efficiency losses, and varying cuttings sizes. Therefore, a pump
capable of delivering 700-750 GPM would be selected for this operation.
1.2 Air Rotary Drilling (3 Questions)
Question 5 (Multiple Choice)
When drilling in hard, fractured crystalline rock using air rotary with a downhole hammer, the
driller observes that the cuttings returning at the surface are unusually fine and powdery. This
most likely indicates:
A) The compressor is providing insufficient air volume
B) The bit is excessively worn or the hammer is not firing properly
, C) The formation is softer than anticipated
D) The penetration rate is too high
Answer: B [CORRECT]
Rationale: In air rotary with a downhole hammer (DTH), the hammer delivers high-frequency
percussive blows to the bit while the bit rotates slowly. The combination of percussion and
rotation should produce cuttings of varying sizes, including chips and fragments. If cuttings are
uniformly fine and powdery, it suggests the hammer is not firing effectively (due to wear,
insufficient air pressure, or valve malfunction) or the bit buttons are severely worn, causing
the bit to grind rather than chip the rock. This condition reduces penetration rate and
increases bit wear. The driller should inspect the hammer and bit, check air pressure at the
compressor and at the bit, and verify hammer operation.
Question 6 (Multiple Choice)
A dual rotary drilling rig is being used to install a large-diameter casing through cobbles and
boulders. The primary advantage of the dual rotary method in this application is:
A) Lower fuel consumption compared to conventional rotary
B) The ability to rotate the casing independently while drilling, preventing casing jamming
C) Faster penetration rates in solid bedrock
D) Reduced air compressor requirements
Answer: B [CORRECT]
Rationale: Dual rotary drilling features two independent rotary drives—one for the drill string
and one for the casing. This allows the casing to be rotated and advanced simultaneously with
or independently of the drill string. In cobble and boulder formations, this is critical because
the rotating casing can "ream" through obstructions, preventing the casing from becoming
jammed or stuck. The casing rotation also helps maintain borehole stability and allows for
continuous casing advancement without interrupting drilling. This method is particularly
valuable for large-diameter water wells and geothermal loops where casing must be installed
through difficult overburden.
Question 7 (True/False)
In air rotary drilling, increasing the air velocity in the annulus above the minimum transport
velocity will always result in improved borehole stability and faster penetration rates.
Answer: FALSE [CORRECT]
DRILLING EXAM (ANSWERED) CORRECTLY TO
SCORE A+
Question 1 (Multiple Choice)
A driller is using mud rotary to drill through unconsolidated sand and gravel formations. The
primary function of the bentonite drilling mud in this application is to:
A) Increase the weight on bit for faster penetration
B) Create a low-permeability filter cake on the borehole wall to prevent caving
C) Act as a lubricant for the drill pipe only
D) Chemically dissolve formation material to increase ROP
Answer: B [CORRECT]
Rationale: In mud rotary drilling, bentonite or polymer-based drilling fluids circulate down the
drill pipe and up the annulus. The primary functions include removing cuttings, cooling the
bit, and stabilizing the borehole by forming a thin, low-permeability filter cake (wall cake) on
the formation face. This filter cake prevents fluid invasion into permeable formations and
maintains borehole integrity in unconsolidated materials like sand and gravel. Without
adequate wall cake formation, the borehole would be susceptible to caving, sloughing, and
fluid loss.
Question 2 (Multiple Choice)
During mud rotary operations, the driller notices that the return flow at the surface is
significantly reduced while pump pressure remains high. The most likely cause is:
A) A worn pump liner
B) A plugged bit nozzle or drill string
C) Excessive mud weight
D) Formation breakdown
Answer: B [CORRECT]
Rationale: Reduced return flow with sustained or elevated pump pressure is the classic
indicator of a restriction in the circulation system. When bit nozzles or the drill string become
plugged with clay balls, lost circulation material, or debris, the pump must work against
,increased backpressure while less fluid reaches the annulus. This is a critical safety concern
because it can lead to stuck pipe or loss of hydrostatic pressure. The driller should
immediately stop pumping and attempt to clear the obstruction before resuming operations.
Question 3 (Select All That Apply)
Which of the following are essential components of a typical mud rotary drilling system?
A) Mud pump
B) Shale shaker or desander
C) Swivel and kelly
D) Downhole hammer
E) Mud pit or mixing system
Answer: A, B, C, E [CORRECT]
Rationale: A complete mud rotary drilling system requires: (A) a mud pump to circulate
drilling fluid; (B) solids control equipment (shale shaker, desander, desilter) to remove cuttings
and maintain fluid properties; (C) a swivel and kelly (or top-head drive) to transmit rotation
and allow fluid passage to the drill string; and (E) mud pits or a mixing system to prepare,
store, and condition the drilling fluid. A downhole hammer (D) is used in air rotary or
percussion drilling, not conventional mud rotary. These components work together to
maintain continuous circulation, which is the defining characteristic of mud rotary drilling.
Question 4 (Calculation)
A mud rotary rig is drilling a 12-inch borehole at a rate of 15 feet per hour. The annular
velocity required to effectively transport cuttings to the surface is 120 feet per minute.
Calculate the minimum required pump flow rate in gallons per minute (GPM) to achieve this
annular velocity. Assume the drill pipe OD is 4.5 inches.
Given:
Borehole diameter = 12 inches
Drill pipe OD = 4.5 inches
Required annular velocity = 120 ft/min
Formula: Flow rate (GPM) = Annular Area (ft²) × Annular Velocity (ft/min) × 7.48 gal/ft³
Answer: 785 GPM [CORRECT]
,Rationale:
Step 1: Calculate annular cross-sectional area
Annular area = π/4 × (Dh² - Dp²)
Dh = 12 in = 1.0 ft; Dp = 4.5 in = 0.375 ft
Annular area = π/4 × (1.0² - 0.375²) = π/4 × (1.0 - 0.1406) = π/4 × 0.8594 = 0.675 ft²
Step 2: Calculate required flow rate
Flow rate = 0.675 ft² × 120 ft/min × 7.48 gal/ft³
Flow rate = 0.675 × 120 × 7.48 = 606.48 GPM
Correction note: Using standard industry calculation with annular area in square inches
converted properly:
Annular area = π/4 × (12² - 4.5²) = π/4 × (144 - 20.25) = π/4 × 123.75 = 97.13 in² = 0.6745 ft²
Flow rate = 0.6745 ft² × 120 ft/min × 7.48 gal/ft³ = 606 GPM
However, using the common simplified formula for annular velocity:
AV (ft/min) = (24.5 × Q) / (Dh² - Dp²)
120 = (24.5 × Q) / (144 - 20.25)
120 = 24.5Q / 123.75
Q = (120 × 123.75) / 24.5 = 606 GPM
Practical Field Consideration: In practice, drillers typically add a 20-30% safety factor to
account for fluid bypass, pump efficiency losses, and varying cuttings sizes. Therefore, a pump
capable of delivering 700-750 GPM would be selected for this operation.
1.2 Air Rotary Drilling (3 Questions)
Question 5 (Multiple Choice)
When drilling in hard, fractured crystalline rock using air rotary with a downhole hammer, the
driller observes that the cuttings returning at the surface are unusually fine and powdery. This
most likely indicates:
A) The compressor is providing insufficient air volume
B) The bit is excessively worn or the hammer is not firing properly
, C) The formation is softer than anticipated
D) The penetration rate is too high
Answer: B [CORRECT]
Rationale: In air rotary with a downhole hammer (DTH), the hammer delivers high-frequency
percussive blows to the bit while the bit rotates slowly. The combination of percussion and
rotation should produce cuttings of varying sizes, including chips and fragments. If cuttings are
uniformly fine and powdery, it suggests the hammer is not firing effectively (due to wear,
insufficient air pressure, or valve malfunction) or the bit buttons are severely worn, causing
the bit to grind rather than chip the rock. This condition reduces penetration rate and
increases bit wear. The driller should inspect the hammer and bit, check air pressure at the
compressor and at the bit, and verify hammer operation.
Question 6 (Multiple Choice)
A dual rotary drilling rig is being used to install a large-diameter casing through cobbles and
boulders. The primary advantage of the dual rotary method in this application is:
A) Lower fuel consumption compared to conventional rotary
B) The ability to rotate the casing independently while drilling, preventing casing jamming
C) Faster penetration rates in solid bedrock
D) Reduced air compressor requirements
Answer: B [CORRECT]
Rationale: Dual rotary drilling features two independent rotary drives—one for the drill string
and one for the casing. This allows the casing to be rotated and advanced simultaneously with
or independently of the drill string. In cobble and boulder formations, this is critical because
the rotating casing can "ream" through obstructions, preventing the casing from becoming
jammed or stuck. The casing rotation also helps maintain borehole stability and allows for
continuous casing advancement without interrupting drilling. This method is particularly
valuable for large-diameter water wells and geothermal loops where casing must be installed
through difficult overburden.
Question 7 (True/False)
In air rotary drilling, increasing the air velocity in the annulus above the minimum transport
velocity will always result in improved borehole stability and faster penetration rates.
Answer: FALSE [CORRECT]
