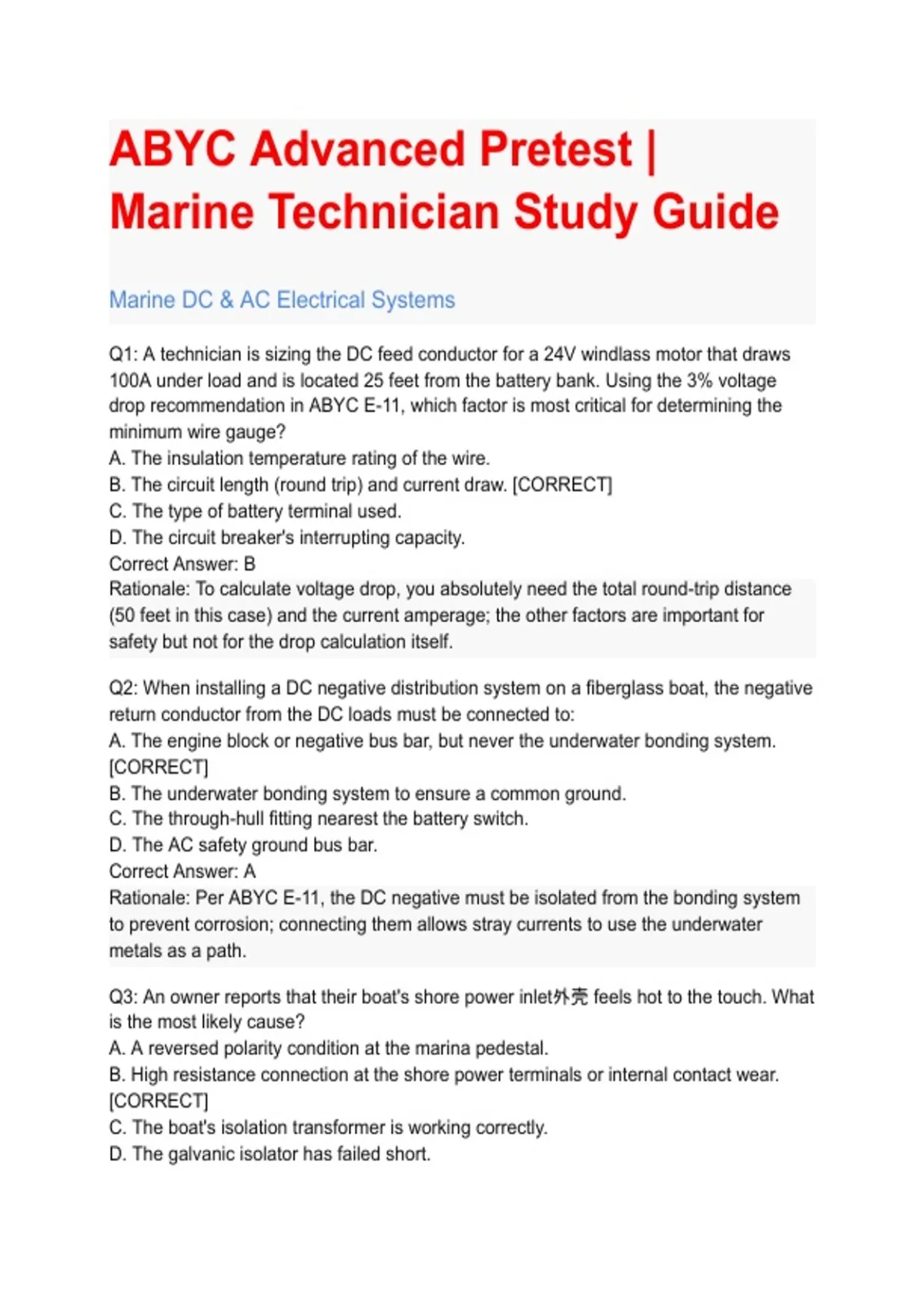

ABYC Advanced Pretest |
Marine Technician Study Guide
Marine DC & AC Electrical Systems
Q1: A technician is sizing the DC feed conductor for a 24V windlass motor that draws
100A under load and is located 25 feet from the battery bank. Using the 3% voltage
drop recommendation in ABYC E-11, which factor is most critical for determining the
minimum wire gauge?
A. The insulation temperature rating of the wire.
B. The circuit length (round trip) and current draw. [CORRECT]
C. The type of battery terminal used.
D. The circuit breaker's interrupting capacity.
Correct Answer: B
Rationale: To calculate voltage drop, you absolutely need the total round-trip distance
(50 feet in this case) and the current amperage; the other factors are important for
safety but not for the drop calculation itself.
Q2: When installing a DC negative distribution system on a fiberglass boat, the negative
return conductor from the DC loads must be connected to:
A. The engine block or negative bus bar, but never the underwater bonding system.
[CORRECT]
B. The underwater bonding system to ensure a common ground.
C. The through-hull fitting nearest the battery switch.
D. The AC safety ground bus bar.
Correct Answer: A
Rationale: Per ABYC E-11, the DC negative must be isolated from the bonding system
to prevent corrosion; connecting them allows stray currents to use the underwater
metals as a path.
Q3: An owner reports that their boat's shore power inlet外壳 feels hot to the touch. What
is the most likely cause?
A. A reversed polarity condition at the marina pedestal.
B. High resistance connection at the shore power terminals or internal contact wear.
[CORRECT]
C. The boat's isolation transformer is working correctly.
D. The galvanic isolator has failed short.
,Correct Answer: B
Rationale: Heat at an electrical connection is almost always caused by resistance,
usually from loose screws, corrosion, or worn contacts in the inlet due to arcing.
Q4: According to ABYC E-11, what is the requirement for overcurrent protection on a
circuit originating directly from the battery positive terminal?
A. The fuse must be within 7 inches of the battery terminal. [CORRECT]
B. The fuse must be within 12 inches of the battery terminal.
C. The fuse is not required if the wire is sized for the battery's cold cranking amps.
D. The fuse must be located at the distribution panel only.
Correct Answer: A
Rationale: ABYC E-11 requires overcurrent protection within 7 inches of the battery
positive post to protect the conductor from a short circuit before it reaches the switch.
Q5: Which of the following describes the correct operation of a Galvanic Isolator (GI)?
A. It blocks DC current (low voltage) while allowing AC current (safety ground) to pass.
[CORRECT]
B. It blocks AC current to prevent electric shock drowning.
C. It boosts the voltage to the anode to prevent corrosion.
D. It converts AC shore power to DC for the battery charger.
Correct Answer: A
Rationale: A Galvanic Isolator inserts diodes in the green grounding wire; these block
low-voltage DC galvanic currents (which cause corrosion) but allow high-voltage AC
fault current to pass for safety.
Q6: A technician measures voltage drop on a circuit under load and finds it to be 6%.
According to ABYC standards, what should the technician do?
A. Nothing, as long as the wire does not get hot.
B. Increase the conductor size to reduce the drop to 3% or less for critical circuits.
[CORRECT]
C. Reduce the fuse size to limit the current.
D. Increase the system voltage to compensate.
Correct Answer: B
Rationale: ABYC E-11 recommends a maximum 3% voltage drop for critical circuits like
electronics and bilge pumps to ensure they operate efficiently; 6% is too high.
Q7: When working on a boat equipped with an Isolation Transformer, the technician
notices that the shore power ground is not connected to the boat's bonding system.
Why is this acceptable?
A. The transformer creates a separately derived system, establishing a new ground
reference onboard. [CORRECT]
, B. The boat is made of fiberglass and doesn't need a ground.
C. The shore power ground is only needed for 120V appliances.
D. The bonding system is only for lightning protection.
Correct Answer: A
Rationale: An isolation transformer magnetically couples the shore power to the boat,
electrically isolating it. This allows the boat to have its own neutral-ground bond
independent of the shore.
Q8: What is the primary function of the Reverse Polarity indicator on an AC panel?
A. To shut off power if the polarity is wrong.
B. To alert the user that the Hot and Neutral wires are reversed at the source.
[CORRECT]
C. To prevent the battery charger from overcharging.
D. To indicate a ground fault in the bilge pump.
Correct Answer: B
Rationale: The indicator light (usually a warning label) warns the operator that the Hot
and Neutral conductors are reversed, which can be a shock hazard but does not
automatically shut off power.
Q9: On a boat with both AC and DC systems, where should the AC grounding (green)
conductor be connected to the DC system?
A. At the battery negative terminal.
B. At the DC main distribution panel negative bus.
C. At the engine negative ground or the common grounding point. [CORRECT]
D. Nowhere; they must be kept completely separate.
Correct Answer: C
Rationale: For safety, the AC grounding conductor must be connected to the boat's DC
ground (usually the engine block) so that a short circuit in an AC appliance trips the
breaker via the DC ground path.
Q10: A technician inspects a battery installation and sees a venting tube routed into the
bilge. Is this compliant with ABYC E-10?
A. Yes, provided the battery is a Gel type.
B. No, battery venting must be routed outside the boat or to a dedicated battery box that
vents overboard. [CORRECT]
C. Yes, if the blower is running.
D. No, AGM batteries do not need venting tubes.
Correct Answer: B
Rationale: Hydrogen gas from charging batteries is explosive and must not be vented
into the bilge; it must be vented overboard or into the atmosphere.
Marine Technician Study Guide
Marine DC & AC Electrical Systems
Q1: A technician is sizing the DC feed conductor for a 24V windlass motor that draws
100A under load and is located 25 feet from the battery bank. Using the 3% voltage
drop recommendation in ABYC E-11, which factor is most critical for determining the
minimum wire gauge?
A. The insulation temperature rating of the wire.
B. The circuit length (round trip) and current draw. [CORRECT]
C. The type of battery terminal used.
D. The circuit breaker's interrupting capacity.
Correct Answer: B
Rationale: To calculate voltage drop, you absolutely need the total round-trip distance
(50 feet in this case) and the current amperage; the other factors are important for
safety but not for the drop calculation itself.
Q2: When installing a DC negative distribution system on a fiberglass boat, the negative
return conductor from the DC loads must be connected to:
A. The engine block or negative bus bar, but never the underwater bonding system.
[CORRECT]
B. The underwater bonding system to ensure a common ground.
C. The through-hull fitting nearest the battery switch.
D. The AC safety ground bus bar.
Correct Answer: A
Rationale: Per ABYC E-11, the DC negative must be isolated from the bonding system
to prevent corrosion; connecting them allows stray currents to use the underwater
metals as a path.
Q3: An owner reports that their boat's shore power inlet外壳 feels hot to the touch. What
is the most likely cause?
A. A reversed polarity condition at the marina pedestal.
B. High resistance connection at the shore power terminals or internal contact wear.
[CORRECT]
C. The boat's isolation transformer is working correctly.
D. The galvanic isolator has failed short.
,Correct Answer: B
Rationale: Heat at an electrical connection is almost always caused by resistance,
usually from loose screws, corrosion, or worn contacts in the inlet due to arcing.
Q4: According to ABYC E-11, what is the requirement for overcurrent protection on a
circuit originating directly from the battery positive terminal?
A. The fuse must be within 7 inches of the battery terminal. [CORRECT]
B. The fuse must be within 12 inches of the battery terminal.
C. The fuse is not required if the wire is sized for the battery's cold cranking amps.
D. The fuse must be located at the distribution panel only.
Correct Answer: A
Rationale: ABYC E-11 requires overcurrent protection within 7 inches of the battery
positive post to protect the conductor from a short circuit before it reaches the switch.
Q5: Which of the following describes the correct operation of a Galvanic Isolator (GI)?
A. It blocks DC current (low voltage) while allowing AC current (safety ground) to pass.
[CORRECT]
B. It blocks AC current to prevent electric shock drowning.
C. It boosts the voltage to the anode to prevent corrosion.
D. It converts AC shore power to DC for the battery charger.
Correct Answer: A
Rationale: A Galvanic Isolator inserts diodes in the green grounding wire; these block
low-voltage DC galvanic currents (which cause corrosion) but allow high-voltage AC
fault current to pass for safety.
Q6: A technician measures voltage drop on a circuit under load and finds it to be 6%.
According to ABYC standards, what should the technician do?
A. Nothing, as long as the wire does not get hot.
B. Increase the conductor size to reduce the drop to 3% or less for critical circuits.
[CORRECT]
C. Reduce the fuse size to limit the current.
D. Increase the system voltage to compensate.
Correct Answer: B
Rationale: ABYC E-11 recommends a maximum 3% voltage drop for critical circuits like
electronics and bilge pumps to ensure they operate efficiently; 6% is too high.
Q7: When working on a boat equipped with an Isolation Transformer, the technician
notices that the shore power ground is not connected to the boat's bonding system.
Why is this acceptable?
A. The transformer creates a separately derived system, establishing a new ground
reference onboard. [CORRECT]
, B. The boat is made of fiberglass and doesn't need a ground.
C. The shore power ground is only needed for 120V appliances.
D. The bonding system is only for lightning protection.
Correct Answer: A
Rationale: An isolation transformer magnetically couples the shore power to the boat,
electrically isolating it. This allows the boat to have its own neutral-ground bond
independent of the shore.
Q8: What is the primary function of the Reverse Polarity indicator on an AC panel?
A. To shut off power if the polarity is wrong.
B. To alert the user that the Hot and Neutral wires are reversed at the source.
[CORRECT]
C. To prevent the battery charger from overcharging.
D. To indicate a ground fault in the bilge pump.
Correct Answer: B
Rationale: The indicator light (usually a warning label) warns the operator that the Hot
and Neutral conductors are reversed, which can be a shock hazard but does not
automatically shut off power.
Q9: On a boat with both AC and DC systems, where should the AC grounding (green)
conductor be connected to the DC system?
A. At the battery negative terminal.
B. At the DC main distribution panel negative bus.
C. At the engine negative ground or the common grounding point. [CORRECT]
D. Nowhere; they must be kept completely separate.
Correct Answer: C
Rationale: For safety, the AC grounding conductor must be connected to the boat's DC
ground (usually the engine block) so that a short circuit in an AC appliance trips the
breaker via the DC ground path.
Q10: A technician inspects a battery installation and sees a venting tube routed into the
bilge. Is this compliant with ABYC E-10?
A. Yes, provided the battery is a Gel type.
B. No, battery venting must be routed outside the boat or to a dedicated battery box that
vents overboard. [CORRECT]
C. Yes, if the blower is running.
D. No, AGM batteries do not need venting tubes.
Correct Answer: B
Rationale: Hydrogen gas from charging batteries is explosive and must not be vented
into the bilge; it must be vented overboard or into the atmosphere.
