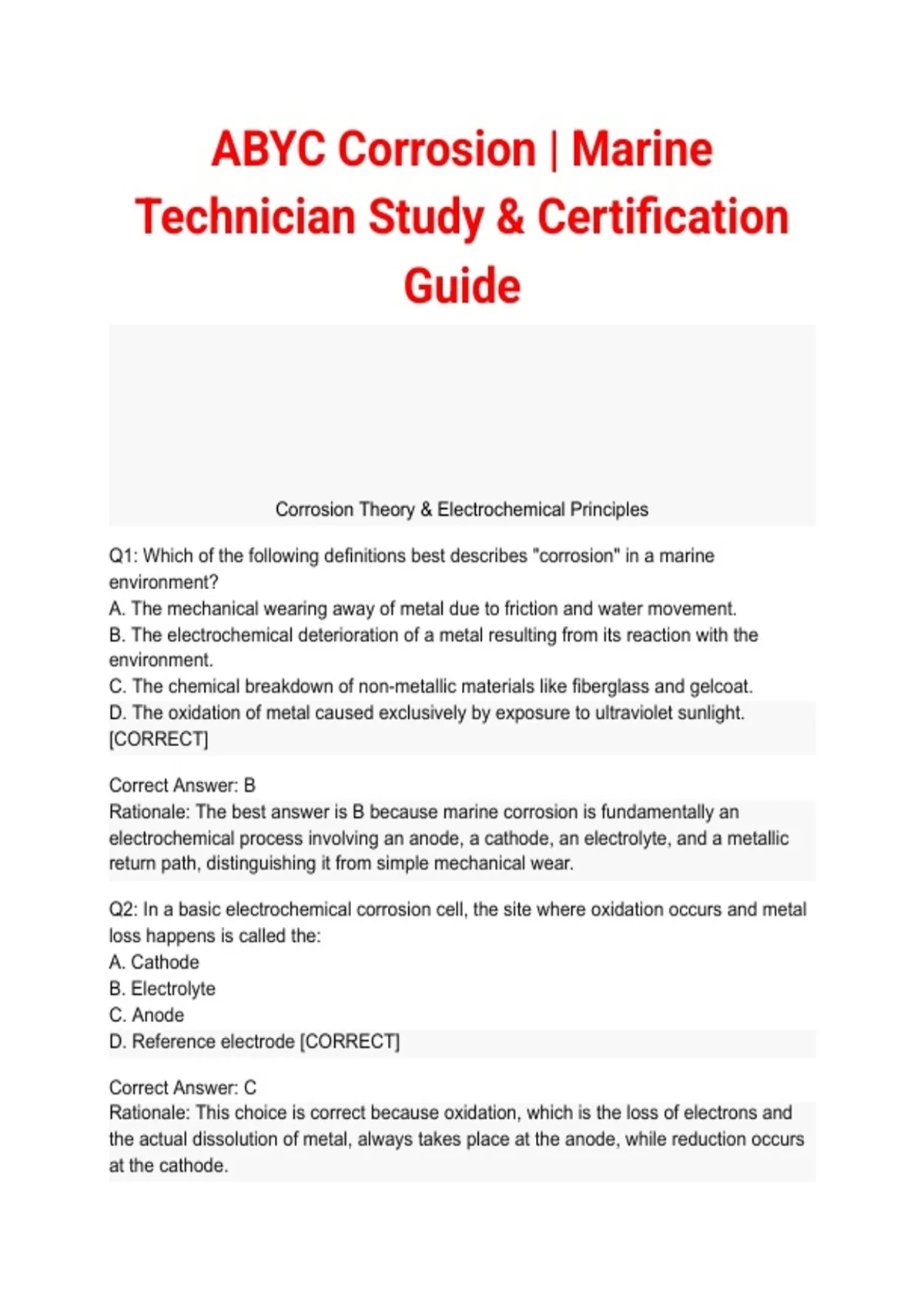

ABYC Corrosion | Marine
Technician Study & Certification
Guide
Corrosion Theory & Electrochemical Principles
Q1: Which of the following definitions best describes "corrosion" in a marine
environment?
A. The mechanical wearing away of metal due to friction and water movement.
B. The electrochemical deterioration of a metal resulting from its reaction with the
environment.
C. The chemical breakdown of non-metallic materials like fiberglass and gelcoat.
D. The oxidation of metal caused exclusively by exposure to ultraviolet sunlight.
[CORRECT]
Correct Answer: B
Rationale: The best answer is B because marine corrosion is fundamentally an
electrochemical process involving an anode, a cathode, an electrolyte, and a metallic
return path, distinguishing it from simple mechanical wear.
Q2: In a basic electrochemical corrosion cell, the site where oxidation occurs and metal
loss happens is called the:
A. Cathode
B. Electrolyte
C. Anode
D. Reference electrode [CORRECT]
Correct Answer: C
Rationale: This choice is correct because oxidation, which is the loss of electrons and
the actual dissolution of metal, always takes place at the anode, while reduction occurs
at the cathode.
,Q3: For a corrosion cell to function, which four components must be present
simultaneously?
A. Anode, cathode, electrolyte, and metallic return path.
B. Copper, zinc, saltwater, and a battery.
C. Steel, aluminum, oxygen, and paint.
D. Positive terminal, negative terminal, resistor, and switch. [CORRECT]
Correct Answer: A
Rationale: This matches the fundamental theory of corrosion; if any one of these four
components is missing (e.g., breaking the metallic return path with an insulator), the
corrosion circuit cannot function.
Q4: Which scenario best describes a "differential aeration cell" (oxygen concentration
cell)?
A. A bronze propeller connected to a stainless steel shaft in seawater.
B. A zinc anode bolted to a steel rudder.
C. An area of a hull covered with slime or mud next to a clean area exposed to
oxygenated water.
D. A battery connected to a hull with reversed polarity. [CORRECT]
Correct Answer: C
Rationale: This choice is correct because a differential aeration cell forms when one
area of a metal surface is exposed to less oxygen (anode) than an adjacent area
(cathode), causing the oxygen-starved area to corrode.
Q5: What is the primary difference between "galvanic corrosion" and "electrolysis"?
A. Galvanic corrosion is caused by an external DC power source, while electrolysis is
self-generated by dissimilar metals.
B. Galvanic corrosion is self-generated by dissimilar metals, while electrolysis is caused
by an external DC electrical source.
C. Galvanic corrosion only happens in freshwater, while electrolysis only happens in
saltwater.
D. There is no difference; the terms are interchangeable. [CORRECT]
Correct Answer: B
Rationale: This is the key distinction: galvanic corrosion is a natural voltage generated
by two different metals, while electrolysis refers to corrosion caused by an external
electrical current, often from faulty wiring.
Q6: According to Faraday's Law, what is the relationship between electrical current and
metal loss in a corrosion cell?
A. The amount of metal lost is directly proportional to the amount of current flowing.
, B. The amount of metal lost is inversely proportional to the amount of current flowing.
C. The amount of metal lost is determined only by the temperature of the water.
D. Metal loss is random and unrelated to electrical current flow. [CORRECT]
Correct Answer: A
Rationale: This choice is correct because Faraday's Law states that the quantity of
metal dissolved is directly proportional to the quantity of electricity (current) that passes
through the cell.
Q7: Which of the following statements is true regarding the "metallic return path" in a
corrosion circuit?
A. It must be made of a non-conductive material like rubber.
B. It is the physical electrical connection between the anode and cathode, such as a hull
or bonding wire.
C. It is optional in freshwater environments.
D. It refers only to the copper grounding wire connected to the shore power pedestal.
[CORRECT]
Correct Answer: B
Rationale: The metallic return path completes the circuit; without a conductive path (like
a bonding wire or the metal hull itself) for electrons to travel from the cathode back to
the anode, current cannot flow and corrosion stops.
Q8: In a marine environment, the "electrolyte" is typically:
A. The copper bonding wire inside the boat.
B. The metal hull or underwater fitting.
C. The seawater or brackish water surrounding the boat.
D. The AC shore power ground. [CORRECT]
Correct Answer: C
Rationale: Seawater acts as the electrolyte because it contains ions that allow electrical
current to flow between the anode and cathode.
Q9: Oxidation is the chemical process that involves:
A. The gain of electrons.
B. The loss of electrons.
C. The formation of a passive oxide layer.
D. The neutralization of acid. [CORRECT]
Correct Answer: B
Technician Study & Certification
Guide
Corrosion Theory & Electrochemical Principles
Q1: Which of the following definitions best describes "corrosion" in a marine
environment?
A. The mechanical wearing away of metal due to friction and water movement.
B. The electrochemical deterioration of a metal resulting from its reaction with the
environment.
C. The chemical breakdown of non-metallic materials like fiberglass and gelcoat.
D. The oxidation of metal caused exclusively by exposure to ultraviolet sunlight.
[CORRECT]
Correct Answer: B
Rationale: The best answer is B because marine corrosion is fundamentally an
electrochemical process involving an anode, a cathode, an electrolyte, and a metallic
return path, distinguishing it from simple mechanical wear.
Q2: In a basic electrochemical corrosion cell, the site where oxidation occurs and metal
loss happens is called the:
A. Cathode
B. Electrolyte
C. Anode
D. Reference electrode [CORRECT]
Correct Answer: C
Rationale: This choice is correct because oxidation, which is the loss of electrons and
the actual dissolution of metal, always takes place at the anode, while reduction occurs
at the cathode.
,Q3: For a corrosion cell to function, which four components must be present
simultaneously?
A. Anode, cathode, electrolyte, and metallic return path.
B. Copper, zinc, saltwater, and a battery.
C. Steel, aluminum, oxygen, and paint.
D. Positive terminal, negative terminal, resistor, and switch. [CORRECT]
Correct Answer: A
Rationale: This matches the fundamental theory of corrosion; if any one of these four
components is missing (e.g., breaking the metallic return path with an insulator), the
corrosion circuit cannot function.
Q4: Which scenario best describes a "differential aeration cell" (oxygen concentration
cell)?
A. A bronze propeller connected to a stainless steel shaft in seawater.
B. A zinc anode bolted to a steel rudder.
C. An area of a hull covered with slime or mud next to a clean area exposed to
oxygenated water.
D. A battery connected to a hull with reversed polarity. [CORRECT]
Correct Answer: C
Rationale: This choice is correct because a differential aeration cell forms when one
area of a metal surface is exposed to less oxygen (anode) than an adjacent area
(cathode), causing the oxygen-starved area to corrode.
Q5: What is the primary difference between "galvanic corrosion" and "electrolysis"?
A. Galvanic corrosion is caused by an external DC power source, while electrolysis is
self-generated by dissimilar metals.
B. Galvanic corrosion is self-generated by dissimilar metals, while electrolysis is caused
by an external DC electrical source.
C. Galvanic corrosion only happens in freshwater, while electrolysis only happens in
saltwater.
D. There is no difference; the terms are interchangeable. [CORRECT]
Correct Answer: B
Rationale: This is the key distinction: galvanic corrosion is a natural voltage generated
by two different metals, while electrolysis refers to corrosion caused by an external
electrical current, often from faulty wiring.
Q6: According to Faraday's Law, what is the relationship between electrical current and
metal loss in a corrosion cell?
A. The amount of metal lost is directly proportional to the amount of current flowing.
, B. The amount of metal lost is inversely proportional to the amount of current flowing.
C. The amount of metal lost is determined only by the temperature of the water.
D. Metal loss is random and unrelated to electrical current flow. [CORRECT]
Correct Answer: A
Rationale: This choice is correct because Faraday's Law states that the quantity of
metal dissolved is directly proportional to the quantity of electricity (current) that passes
through the cell.
Q7: Which of the following statements is true regarding the "metallic return path" in a
corrosion circuit?
A. It must be made of a non-conductive material like rubber.
B. It is the physical electrical connection between the anode and cathode, such as a hull
or bonding wire.
C. It is optional in freshwater environments.
D. It refers only to the copper grounding wire connected to the shore power pedestal.
[CORRECT]
Correct Answer: B
Rationale: The metallic return path completes the circuit; without a conductive path (like
a bonding wire or the metal hull itself) for electrons to travel from the cathode back to
the anode, current cannot flow and corrosion stops.
Q8: In a marine environment, the "electrolyte" is typically:
A. The copper bonding wire inside the boat.
B. The metal hull or underwater fitting.
C. The seawater or brackish water surrounding the boat.
D. The AC shore power ground. [CORRECT]
Correct Answer: C
Rationale: Seawater acts as the electrolyte because it contains ions that allow electrical
current to flow between the anode and cathode.
Q9: Oxidation is the chemical process that involves:
A. The gain of electrons.
B. The loss of electrons.
C. The formation of a passive oxide layer.
D. The neutralization of acid. [CORRECT]
Correct Answer: B
