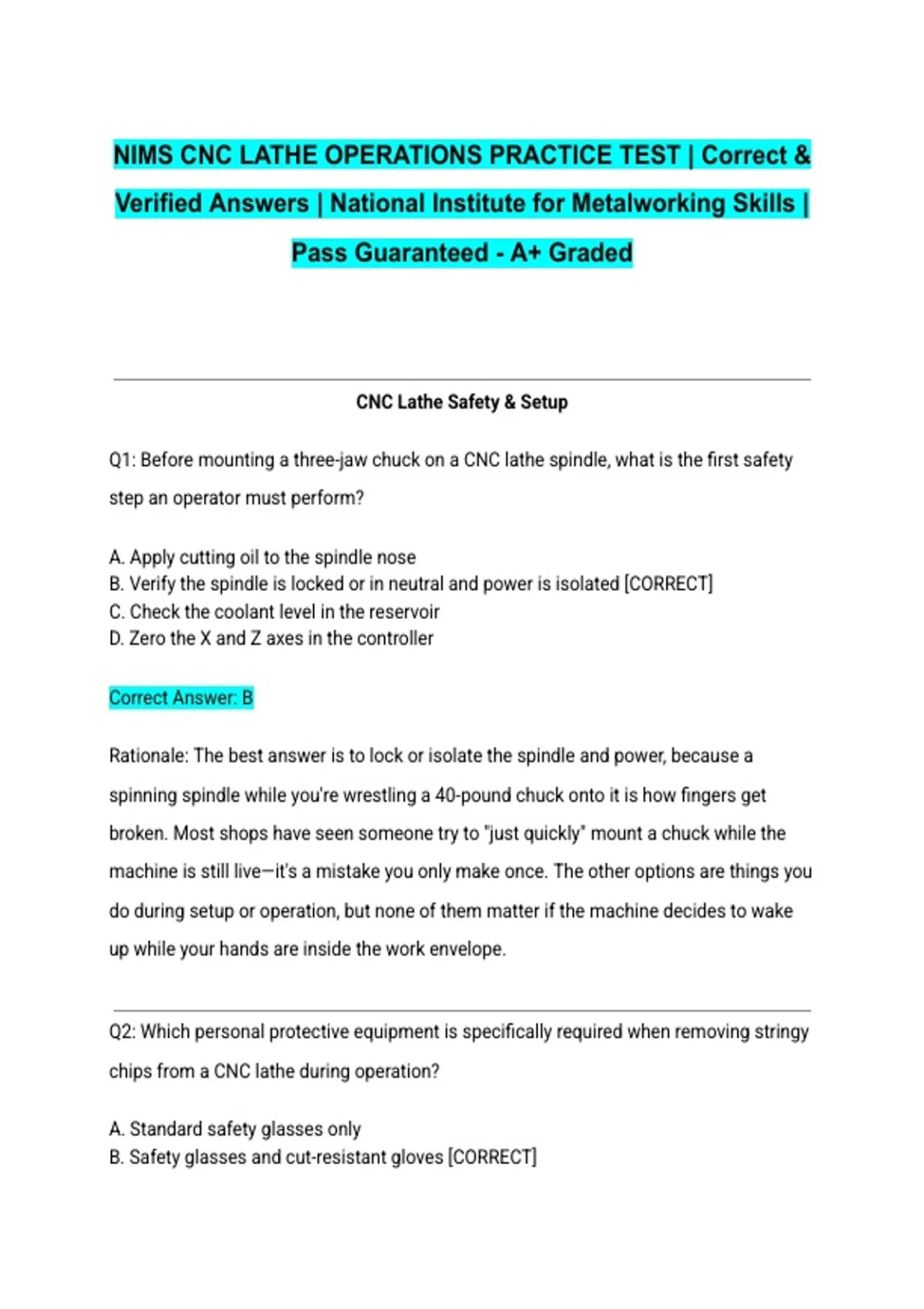

NIMS CNC LATHE OPERATIONS PRACTICE TEST | Correct &
Verified Answers | National Institute for Metalworking Skills |
Pass Guaranteed - A+ Graded
CNC Lathe Safety & Setup
Q1: Before mounting a three-jaw chuck on a CNC lathe spindle, what is the first safety
step an operator must perform?
A. Apply cutting oil to the spindle nose
B. Verify the spindle is locked or in neutral and power is isolated [CORRECT]
C. Check the coolant level in the reservoir
D. Zero the X and Z axes in the controller
Correct Answer: B
Rationale: The best answer is to lock or isolate the spindle and power, because a
spinning spindle while you're wrestling a 40-pound chuck onto it is how fingers get
broken. Most shops have seen someone try to "just quickly" mount a chuck while the
machine is still live—it's a mistake you only make once. The other options are things you
do during setup or operation, but none of them matter if the machine decides to wake
up while your hands are inside the work envelope.
Q2: Which personal protective equipment is specifically required when removing stringy
chips from a CNC lathe during operation?
A. Standard safety glasses only
B. Safety glasses and cut-resistant gloves [CORRECT]
,C. Face shield without gloves
D. Hearing protection only
Correct Answer: B
Rationale: This choice is correct because stringy chips are essentially razor wire coming
off the workpiece at high speed, and grabbing them bare-handed is a guaranteed
laceration. The face shield alone won't protect your hands, and regular safety glasses
don't stop chips from wrapping around your fingers. Cut-resistant gloves are the
standard in any shop that values its machinists' fingertips.
Q3: During a lockout/tagout procedure on a CNC lathe, who is authorized to remove the
lock and tag after maintenance is complete?
A. Any operator who needs to resume production
B. The maintenance technician who installed the lock [CORRECT]
C. The shift supervisor if the technician is on break
D. The shop foreman regardless of who applied the lock
Correct Answer: B
Rationale: This aligns with OSHA lockout/tagout standards because the person who put
the lock on is the only one who knows for certain that the machine is safe to energize.
In practice, shops get sloppy about this—someone's in a hurry, the technician is at lunch,
so the supervisor cuts the lock. That's exactly how someone gets hurt because a
hydraulic line wasn't reconnected or a tool changer was left mid-cycle. The rule is
simple: your lock, your tag, your removal.
Q4: What is the primary purpose of a steady rest when turning a long, slender shaft on a
CNC lathe?
,A. To hold the workpiece during chuck changes
B. To support the workpiece and prevent deflection or vibration [CORRECT]
C. To apply cutting pressure during heavy roughing cuts
D. To collect chips away from the cutting zone
Correct Answer: B
Rationale: This matches the fundamental purpose of a steady rest, which is to give a
wobbly, long workpiece a third point of support so it doesn't bow away from the tool or
start chattering like a jackhammer. A lot of new operators think steady rests are just for
really long parts, but even a 12-inch shaft of mild steel can deflect enough to throw your
tolerance out the window if you're taking aggressive cuts.
Q5: When installing soft jaws on a CNC lathe chuck, why must the jaws be bored to
match the workpiece diameter before use?
A. To reduce the weight of the chuck assembly
B. To ensure concentric gripping and prevent workpiece distortion [CORRECT]
C. To allow coolant to flow through the jaw faces
D. To increase the gripping force of the hydraulic actuator
Correct Answer: B
Rationale: This choice is correct because soft jaws are essentially blanks that you
machine to fit your specific part—if you clamp a 2-inch diameter part into unbored soft
jaws, you're gripping on maybe two points instead of a full circle, and that part will shift
or distort under cutting forces. In practice, boring soft jaws is one of those steps that
feels like a waste of time until you scrap a $500 titanium part because it walked in the
chuck during a finish pass.
, Q6: An operator notices the chip conveyor is jammed with a large nest of chips during a
production run. What is the correct immediate action?
A. Reach into the conveyor while the machine is running to clear the jam
B. Stop the machine, verify zero energy state, then clear the jam [CORRECT]
C. Increase coolant flow to flush the chips through
D. Continue the run and clear the jam during the next tool change
Correct Answer: B
Rationale: This aligns with basic shop safety because a running chip conveyor has
gears, chains, and pinch points that don't care whether you're reaching for chips or not.
In practice, the temptation is real—production is behind, the jam looks minor, your hand
is right there—but conveyor injuries are gruesome and fast. Stop the machine, make
sure it can't restart, then clear it properly. The two minutes of downtime beats a trip to
the ER.
Q7: Which type of work holding is most appropriate for a batch of 500 identical
aluminum pins with a 0.750-inch diameter and tight concentricity requirements?
A. Three-jaw universal chuck with hard jaws
B. Five-jaw chuck for additional gripping points
C. Collet chuck with a matched 0.750-inch collet [CORRECT]
D. Faceplate with clamp bolts
Correct Answer: C
Rationale: This choice is correct because a matched collet grips the entire
circumference of a cylindrical part with uniform pressure, giving you the concentricity
and repeatability you need for a 500-piece run. Three-jaw chucks are fine for general
work, but they have runout and jaw-to-jaw variation that adds up over hundreds of parts.
Collets are why production shops can hold ±0.0005" all day without touching an offset.
