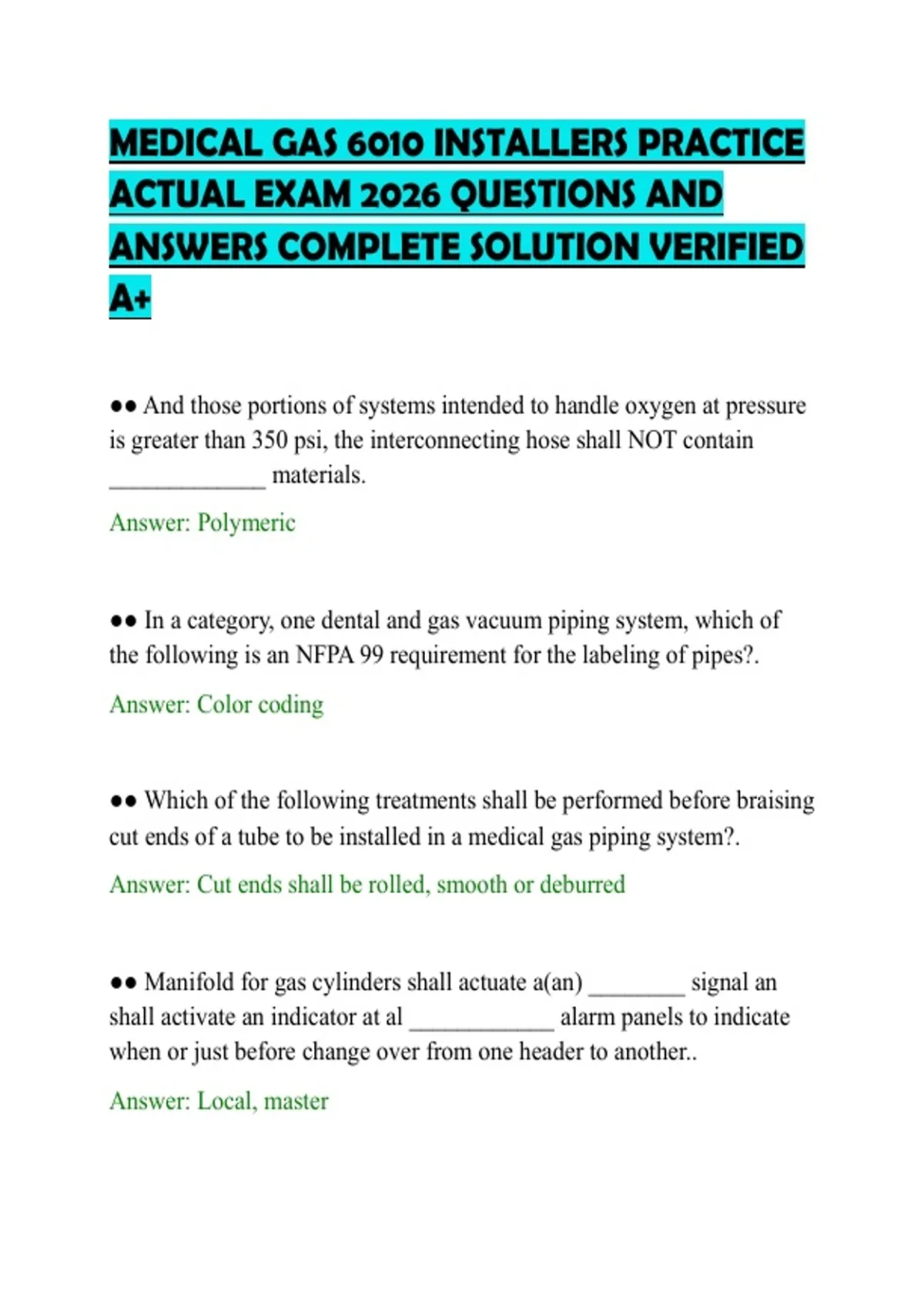

MEDICAL GAS 6010 INSTALLERS PRACTICE
ACTUAL EXAM 2026 QUESTIONS AND
ANSWERS COMPLETE SOLUTION VERIFIED
A+
●● And those portions of systems intended to handle oxygen at pressure
is greater than 350 psi, the interconnecting hose shall NOT contain
_____________ materials.
Answer: Polymeric
●● In a category, one dental and gas vacuum piping system, which of
the following is an NFPA 99 requirement for the labeling of pipes?.
Answer: Color coding
●● Which of the following treatments shall be performed before braising
cut ends of a tube to be installed in a medical gas piping system?.
Answer: Cut ends shall be rolled, smooth or deburred
●● Manifold for gas cylinders shall actuate a(an) ________ signal an
shall activate an indicator at al ____________ alarm panels to indicate
when or just before change over from one header to another..
Answer: Local, master
,●● In a non anesthetizing area , on which side of a zone valve shall the
pressure/vacuum sensor be located?.
Answer: Station outlet/inlet side
●● What is the purpose of using an oxygen analyzer during the piping
purge prior to brazing?.
Answer: Assure that all ambient air has been removed from the pipeline
●● A medical gas master or area alarm panel shall be set to actuate a(an)
_____ indicator when the communication with an alarm-initiating device
is disconnected..
Answer: audible and visual
●● When an EOSC becomes the temporary supply source, a facility will
monitor the system by use of which of the following?.
Answer: Providing four connection points to both master alarms
●● Which of the following conditions must be met where medical gas
and vacuum systems are installed by a non-certified personnel?.
Answer: installation by anyone other than 6010 certified personnel is
NOT permitted
●● Which of the following systems shall NOT be permitted to be
located in an outdoor enclosure?.
, Answer: Medical air compressor supply sources
●● Metallic flexible, joints are being used in the pipeline for vibration
control. Which of the following is NOT REQUIRED OF SUCH
JOINTS?.
Answer: Suitable for service at 150 psig or above
●● Who shall witness the installer performed standing vacuum test?.
Answer: the authority having jurisdiction, or its designee
●● The medical air compressor intake shall be located a minimum of
how many feet from any exhaust or plumbing vents?.
Answer: 25 feet
●● The gas produced by evaporation from the secondary header and a
cryogenic liquid cylinder system shall enter the supply system ________
of the final line regulator.
Answer: upstream
●● With the approval of the authority having jurisdiction, in which areas
shall the zone valves be permitted to be secured to prevent inappropriate
access?.
Answer: pediatric
