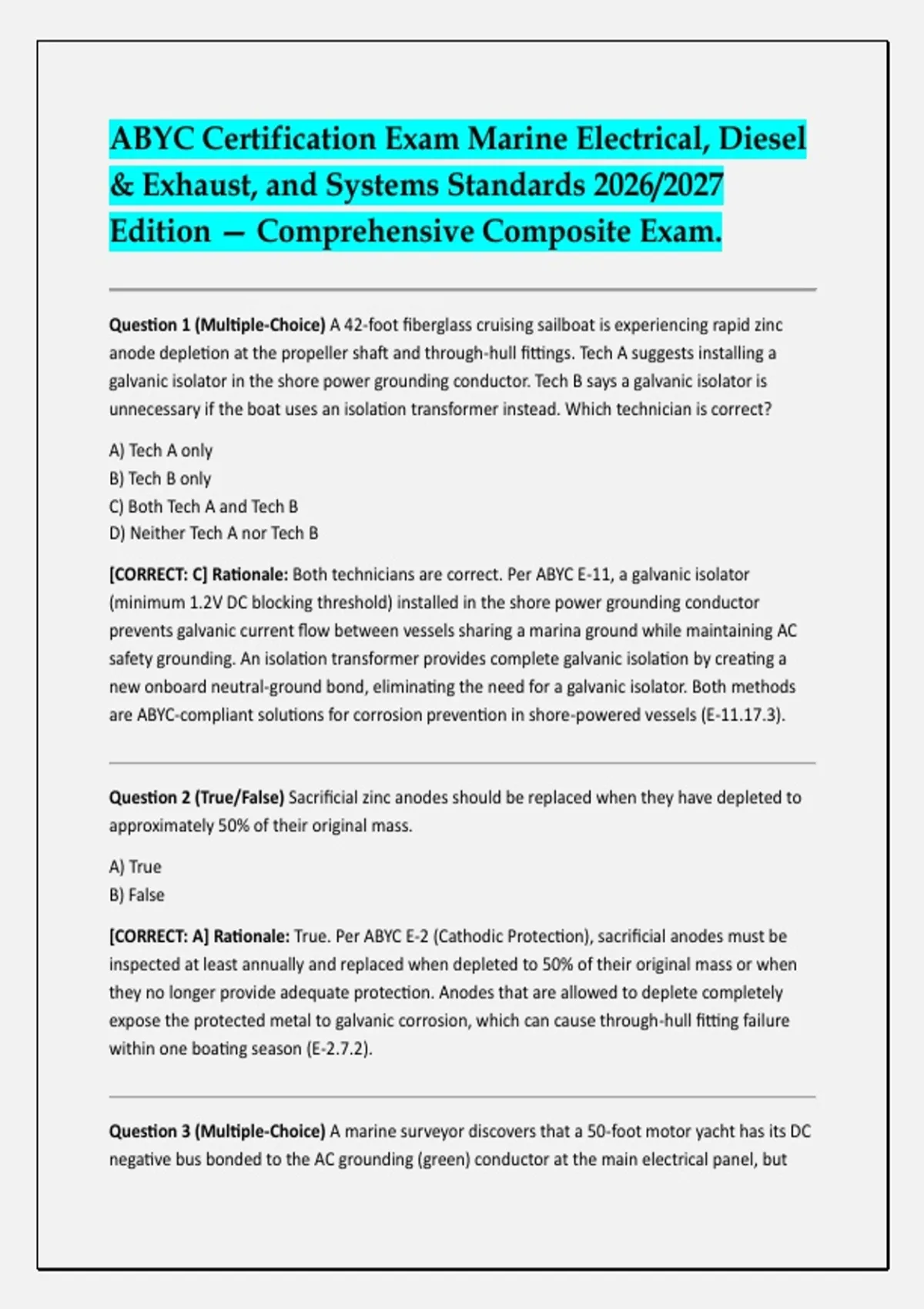

ABYC Certification Exam Marine Electrical, Diesel
& Exhaust, and Systems Standards 2026/2027
Edition — Comprehensive Composite Exam.
Question 1 (Multiple-Choice) A 42-foot fiberglass cruising sailboat is experiencing rapid zinc
anode depletion at the propeller shaft and through-hull fittings. Tech A suggests installing a
galvanic isolator in the shore power grounding conductor. Tech B says a galvanic isolator is
unnecessary if the boat uses an isolation transformer instead. Which technician is correct?
A) Tech A only
B) Tech B only
C) Both Tech A and Tech B
D) Neither Tech A nor Tech B
[CORRECT: C] Rationale: Both technicians are correct. Per ABYC E-11, a galvanic isolator
(minimum 1.2V DC blocking threshold) installed in the shore power grounding conductor
prevents galvanic current flow between vessels sharing a marina ground while maintaining AC
safety grounding. An isolation transformer provides complete galvanic isolation by creating a
new onboard neutral-ground bond, eliminating the need for a galvanic isolator. Both methods
are ABYC-compliant solutions for corrosion prevention in shore-powered vessels (E-11.17.3).
Question 2 (True/False) Sacrificial zinc anodes should be replaced when they have depleted to
approximately 50% of their original mass.
A) True
B) False
[CORRECT: A] Rationale: True. Per ABYC E-2 (Cathodic Protection), sacrificial anodes must be
inspected at least annually and replaced when depleted to 50% of their original mass or when
they no longer provide adequate protection. Anodes that are allowed to deplete completely
expose the protected metal to galvanic corrosion, which can cause through-hull fitting failure
within one boating season (E-2.7.2).
Question 3 (Multiple-Choice) A marine surveyor discovers that a 50-foot motor yacht has its DC
negative bus bonded to the AC grounding (green) conductor at the main electrical panel, but
,the bonding conductor to the engine block has corroded and is no longer continuous. What is
the primary safety hazard?
A) The vessel will experience excessive radio interference
B) The vessel loses its primary lightning protection path
C) AC fault current may energize the DC negative system without a safe return path to ground
D) The battery charging system will overcharge and boil electrolyte
[CORRECT: C] Rationale: Per ABYC E-11.15.1, the AC grounding (green) conductor must be
connected to the engine negative terminal or the main DC negative bus to ensure AC fault
current has a low-impedance path back to the source. If this bond is broken, an AC ground fault
can energize the entire DC negative system (including bonded through-hulls, fuel tanks, and
engine components), creating a lethal shock hazard for anyone touching these surfaces while in
the water (E-11.15.1.1).
Question 4 (Select-All-That-Apply) Which of the following components must be connected to
the vessel's DC bonding system per ABYC E-2 and E-11? (Select all that apply)
A) Metallic fuel tanks
B) Metallic sea strainers
C) Non-metallic (composite) through-hull fittings
D) Propeller shafts with shaft brushes
E) Engine block
F) AC shore power inlet housing
[CORRECT: A, B, D, E, F] Rationale: Per ABYC E-2 and E-11, all metallic underwater fittings, fuel
tanks, sea strainers, engine blocks, and AC shore power inlet housings must be bonded to the
vessel's DC grounding system to prevent galvanic corrosion and ensure AC fault current has a
safe return path. Non-metallic (composite) through-hull fittings do not require bonding as they
are electrically non-conductive and cannot participate in galvanic cells (E-2.5.1, E-11.15.1).
Question 5 (Scenario-Based Troubleshooting) Scenario: A 55-foot trawler is experiencing
electrolysis damage to its bronze propeller and stainless steel shaft within six months of
installation. The vessel is connected to shore power 90% of the time. The surveyor notes: (1) the
shore power cord is a standard 30A configuration, (2) the vessel has no galvanic isolator or
isolation transformer, (3) the marina has multiple boats with varying hull materials, and (4) the
bonding system continuity tests at 0.1 ohms throughout. What is the most likely cause and the
correct ABYC-compliant remediation?
, A) The propeller alloy is incompatible with seawater; replace with a different alloy
B) Galvanic current from neighboring vessels is flowing through the shared marina ground;
install a galvanic isolator or isolation transformer
C) The bonding system resistance is too low, causing excessive current flow; add resistance to
the bonding circuit
D) The shore power cord is undersized; upgrade to 50A service
[CORRECT: B] Rationale: The most likely cause is galvanic current from neighboring vessels
flowing through the shared marina grounding system. Per ABYC E-11.17.3, vessels connected to
shore power must have galvanic protection (isolator or isolation transformer) to prevent current
flow between vessels. The rapid six-month depletion rate, combined with continuous shore
power connection and a marina with mixed hull materials, is diagnostic of marina-based
galvanic corrosion. Installing a galvanic isolator (minimum 1.2V DC blocking) or an isolation
transformer is the ABYC-compliant solution (E-11.17.3.1, E-11.17.4).
Sub-Topic 1.2: Battery Technology, Selection, and Installation (5 Questions)
Question 6 (Multiple-Choice) A technician is installing a 400 Ah lithium iron phosphate
(LiFePO4) battery bank on a 12V cruising sailboat. According to the 2025 revision of ABYC E-11,
what is the minimum Ampere Interrupting Capacity (AIC) rating required for the overcurrent
protection device protecting this battery bank?
A) 5,000 AIC
B) 10,000 AIC
C) 15,000 AIC
D) 20,000 AIC
[CORRECT: D] Rationale: Per the 2025 revision of ABYC E-11.10.1.3.2.2, for lithium ion batteries
where the manufacturer does not provide a short circuit current (SCC) rating, the required AIC is
5,000 amps per 100 amp-hours of capacity. A 400 Ah LiFePO4 bank therefore requires 20,000
AIC (400 ÷ 100 × 5,000 = 20,000). This requirement typically mandates the use of a Class T fuse,
as most MRBF fuses are rated at only 10,000 AIC at 12VDC (E-11.10.1.3.2.2, Table 3C).
Question 7 (True/False) Per ABYC E-10, wing nuts are permitted for battery terminal
connections on conductors larger than 8 AWG if they are marine-grade stainless steel and
properly torqued.
A) True
B) False
