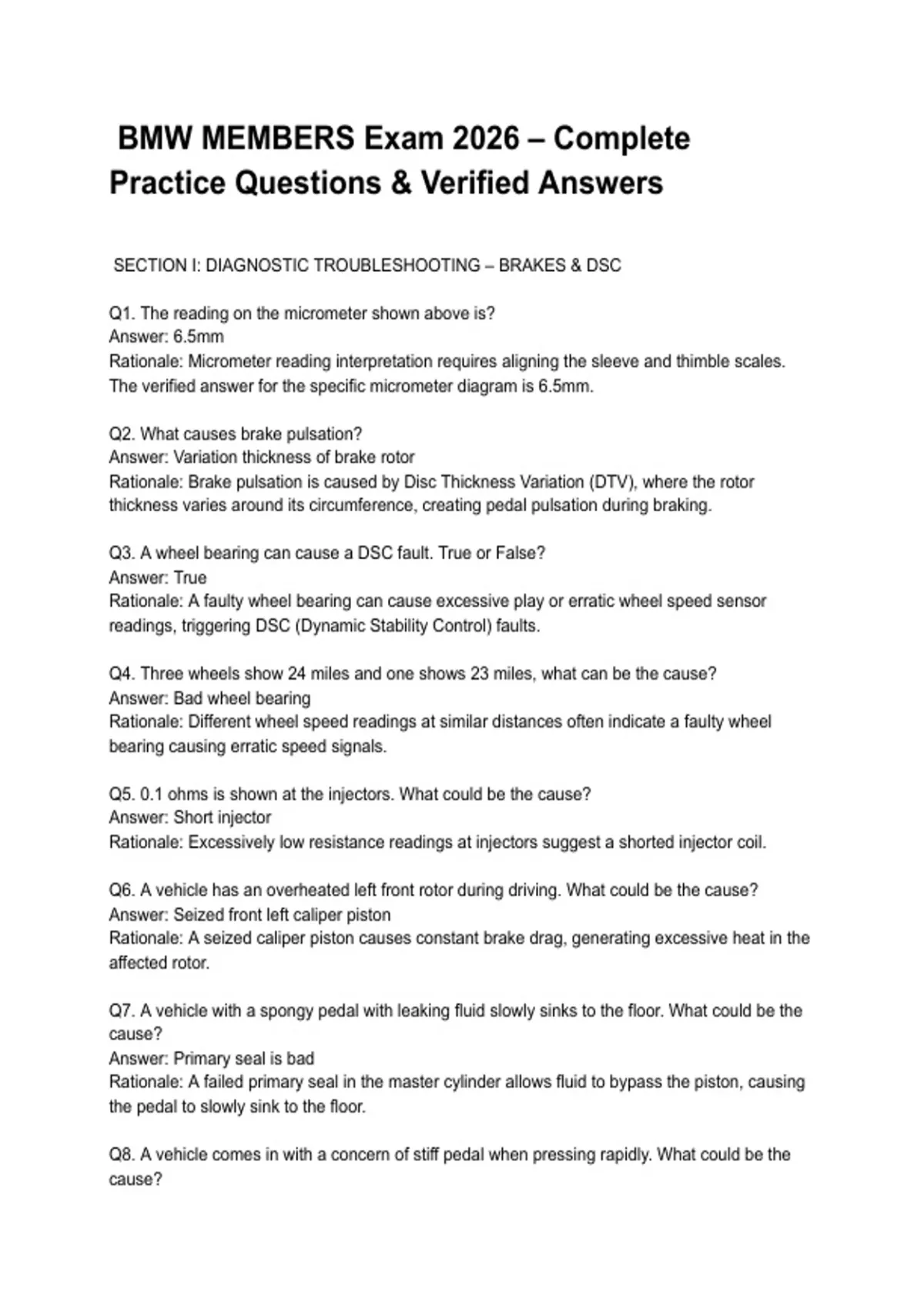

BMW MEMBERS Exam 2026 – Complete
Practice Questions & Verified Answers
SECTION I: DIAGNOSTIC TROUBLESHOOTING – BRAKES & DSC
Q1. The reading on the micrometer shown above is?
Answer: 6.5mm
Rationale: Micrometer reading interpretation requires aligning the sleeve and thimble scales.
The verified answer for the specific micrometer diagram is 6.5mm.
Q2. What causes brake pulsation?
Answer: Variation thickness of brake rotor
Rationale: Brake pulsation is caused by Disc Thickness Variation (DTV), where the rotor
thickness varies around its circumference, creating pedal pulsation during braking.
Q3. A wheel bearing can cause a DSC fault. True or False?
Answer: True
Rationale: A faulty wheel bearing can cause excessive play or erratic wheel speed sensor
readings, triggering DSC (Dynamic Stability Control) faults.
Q4. Three wheels show 24 miles and one shows 23 miles, what can be the cause?
Answer: Bad wheel bearing
Rationale: Different wheel speed readings at similar distances often indicate a faulty wheel
bearing causing erratic speed signals.
Q5. 0.1 ohms is shown at the injectors. What could be the cause?
Answer: Short injector
Rationale: Excessively low resistance readings at injectors suggest a shorted injector coil.
Q6. A vehicle has an overheated left front rotor during driving. What could be the cause?
Answer: Seized front left caliper piston
Rationale: A seized caliper piston causes constant brake drag, generating excessive heat in the
affected rotor.
Q7. A vehicle with a spongy pedal with leaking fluid slowly sinks to the floor. What could be the
cause?
Answer: Primary seal is bad
Rationale: A failed primary seal in the master cylinder allows fluid to bypass the piston, causing
the pedal to slowly sink to the floor.
Q8. A vehicle comes in with a concern of stiff pedal when pressing rapidly. What could be the
cause?
, Answer: Check valve
Rationale: A faulty brake booster check valve can prevent vacuum from reaching the booster,
resulting in a stiff pedal during rapid application.
Q9. When you press the brake pedal in and it releases the brake booster hard. What could be
the cause?
Answer: Vent port
Rationale: A blocked or restricted vent port in the master cylinder can cause difficult release of
brake pressure.
Q10. A vehicle comes in with a concern of a clunking sound from the rear during braking and
accelerating. What is the most likely cause?
Answer: Thrust Arm
Rationale: Worn rear thrust arms can create clunking noises during acceleration and braking
due to movement in the suspension.
Q11. Brake pedal pulsation can be caused by rust build-up between hub and rotor. True or
false?
Answer: False
Rationale: Brake pedal pulsation is caused by rotor thickness variation, not rust between hub
and rotor. Rust build-up can cause lateral runout.
Q12. What is most likely the cause if vehicle is losing brake fluid but there are no visible leaks?
Answer: Secondary seal
Rationale: Brake fluid loss without visible external leakage often indicates a failed secondary
seal in the master cylinder, allowing fluid to bypass into the brake booster.
SECTION II: DYNAMIC STABILITY CONTROL (DSC)
Q13. On a DSC equipped vehicle, Technician A says it receives inputs from the steering angle
sensor. Technician B says it receives inputs from the brake switch. Who is correct?
Answer: Both
Rationale: DSC systems require multiple inputs including steering angle from the steering angle
sensor and brake status from the brake switch to function properly.
Q14. DSC equipped vehicles deactivate traction when it's cold outside. True or false?
Answer: False
Rationale: DSC does not deactivate traction based solely on cold outside temperature. Cold
weather does not disable DSC functionality.
Q15. DCS equipped vehicles use a system to choke or drop the RPM in the engine. True or
false?
Answer: True
