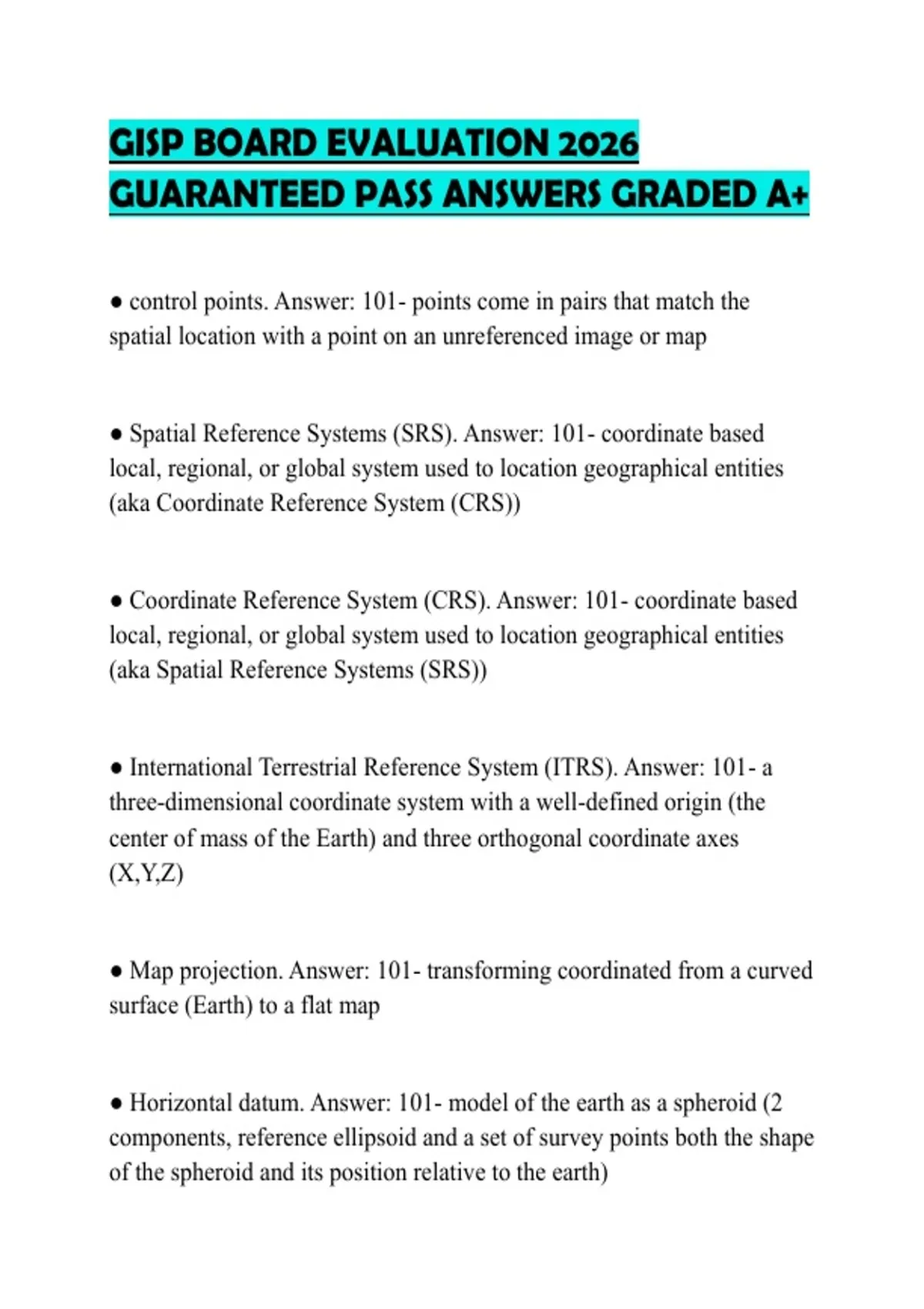

GISP BOARD EVALUATION 2026
GUARANTEED PASS ANSWERS GRADED A+
● control points. Answer: 101- points come in pairs that match the
spatial location with a point on an unreferenced image or map
● Spatial Reference Systems (SRS). Answer: 101- coordinate based
local, regional, or global system used to location geographical entities
(aka Coordinate Reference System (CRS))
● Coordinate Reference System (CRS). Answer: 101- coordinate based
local, regional, or global system used to location geographical entities
(aka Spatial Reference Systems (SRS))
● International Terrestrial Reference System (ITRS). Answer: 101- a
three-dimensional coordinate system with a well-defined origin (the
center of mass of the Earth) and three orthogonal coordinate axes
(X,Y,Z)
● Map projection. Answer: 101- transforming coordinated from a curved
surface (Earth) to a flat map
● Horizontal datum. Answer: 101- model of the earth as a spheroid (2
components, reference ellipsoid and a set of survey points both the shape
of the spheroid and its position relative to the earth)
,● Vertical Datum. Answer: 101- reference point for measuring elevations
● NAVD88. Answer: 101- Gravity based geodetic datum in North
America
● WGS 84 (World Geodetic System). Answer: 101- reference coordinate
system used by the Global Positioning System (GPS)
● SRID integer. Answer: 101- Spatial reference system id numbers,
including EPSG codes defined by the International Association of Oil
and Gas Producers
● types of distortion. Answer: 101- Distance, Direction, Shape, Area
(sometimes bearing and scale)
● Mercator Projection- distortions. Answer: 101- preserves shape and
direction, area gets distorted
● Mercator Projection. Answer: 101- projecting the Earth onto a cylinder
tangent to a meridian
● Azimuthal Projection- distortions. Answer: 101- distance from center
is true, other properties distort with distance
,● Azimuthal Projection. Answer: 101- planar or tangent (meaning they
are formed when a flat piece of paper is placed on top of the globe and a
light source projects the surrounding areas on to a map.) Either the North
Pole or the South pole is orientated at the center of the map, giving the
viewer an impression of looking up or down at Earth.
● Cylindrical Projection- distortions. Answer: 101- preserve area and
shape, distance gets distorted, especially on upper and lower regions of
the map
● Cylindrical Projection. Answer: 101- 2 types Tangent (1 intersect) and
Secant (2 intersects)
Straight meridians and parallels
meridians are equally spaced while parallels are not
● Conical Projection- distortions. Answer: 101- preserves direction and
area in limited areas, distorts distance and scale except along standard
parallels
● Conic Projections. Answer: 101- mapped to equally spaced lines by
projecting a spherical surface onto a cone
● Choosing a Projection- Low LATITUDE, (near Equator). Answer:
101- use conical projection
, ● Choosing a Projection- High LATITUDE, Polar Regions. Answer:
101- use azimuthal planar projections
● Choosing a Projection- EXTENT, broad East-West (e.g. USA).
Answer: 101- use conical projection
● Choosing a Projection- EXTENT, broad North-South (e.g. Africa).
Answer: 101- use transverse-case cylindrical projection
● Choosing a Projection- THEMATIC, analysis that compares different
values in different locations. Answer: 101- use an equal-area projection
● Discrete features. Answer: 102- feature has a definable boundary
(think, "vector")
● continuous phenomena. Answer: 102- each location is a measure of
something, often temperature or elevation (think "raster", but not
always)
● Geoid. Answer: 103- the shape that the surface of the oceans would
take under the influence of Earth's gravitation and rotation alone (absent
of the influence of wind or tide)
